GB-SCL(HV)
- ALL IN ONE PLUS
Solar storage charging system solution, one stop service - Maximum output
100% unbalanced output, each phase; Max. output up to 50% rated power - Maximum connection
Max. 10pcs parallel for on grid and off grid operation - More support
Support storing energy from diesel generator - High voltage stack
Modules are connected in series without cable connection, and high voltage platform improves system efficiency - Thermal management
Temperature detection of key parts, cell, power plug in, etc - Wide temperature operation
The heating function is optional to meet the application scenarios with low temperature and no sense
Description
Technical Data

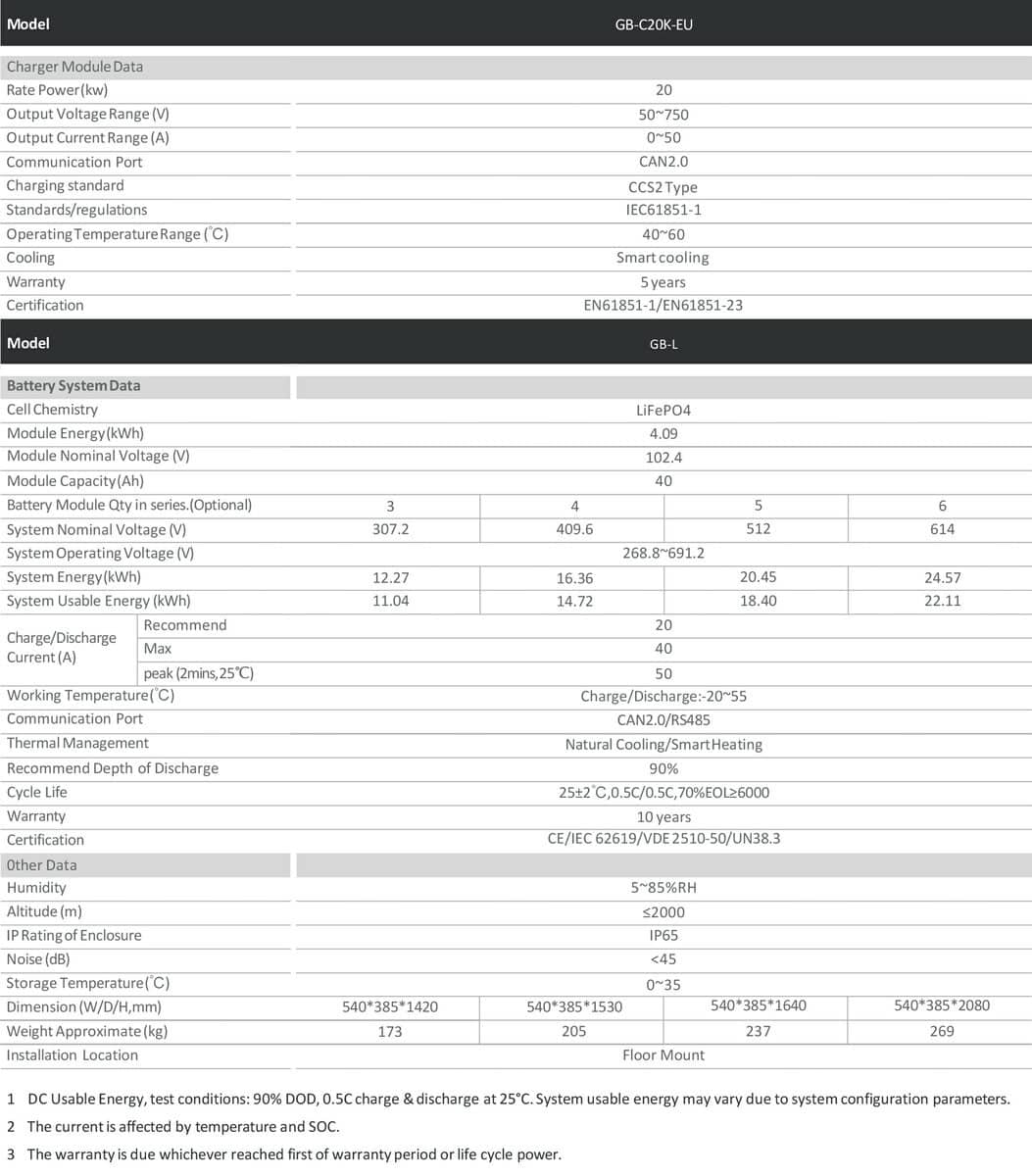

| Model | GB-S12K-EU | GB-S15K-EU | GB-S20K-EU |
| Battery Input Data | |||
| Battery Type | LI-ION | ||
| Battery Voltage Range (V) | 160~700 | ||
| Max. Charging Current (A) | 37 | ||
| Max. Discharging Current (A) | 37 | ||
| Number of battery input | 1 | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 15600 | 19500 | 26000 |
| Max. DC Input Voltage (V) | 1000 | ||
| Start-up Voltage (V) | 150 | ||
| MPPT Range (V) | 150-850 | ||
| Full Load DC Voltage Range (V) | 340-850 | 420-850 | 500-850 |
| Rated DC Input Voltage (V) | 600 | ||
| PV Input Current (A) | 26+20 | 26+26 | |
| Max. PV ISC (A) | 39+30 | 39+39 | |
| No.of MPP Trackers | 2 | ||
| No.of Strings per MPP Tracker | 2+1 | 2+2 | |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) | 12000 | 15000 | 20000 |
| Max. AC Output Power (W) | 13200 | 16500 | 22000 |
| AC Output Rated Current (A) | 17.4 | 21.8 | 29 |
| Max. AC Current (A) | 25 | 30 | 35 |
| Max. Continuous AC Pass through (A) | 80 | ||
| Peak Power (off grid) | 1.5 time of rated power, 10S | ||
| Generator input/Smart load/AC couple current (A) | 18.2 / 40 / 18.2 | 22.8 / 40 / 22.8 | 30.3 / 40 / 30.3 |
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | ||
| Grid Type | Three Phase | ||
| DC injection current (mA) | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 97% | ||
| MPPT Efficiency | 99.9% | ||
| Protection | |||
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
||
| Output Over Voltage Protection | DC Type II/AC Type III | ||
| Certifications and Standards | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98 | ||
| Grid Regulation | VDE 0126-1-1, RD 1699, C10-11 | ||
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| General Data | |||
| Operating Temperature Range (℃) | 40~60℃, >45℃ derating | ||
| Cooling | Smart cooling | ||
| Communication with BMS | RS485; CAN | ||
| Warranty | 5 years | ||
| Charger Data | |||
| Rate Power (kw) | 11 | ||
| Output Voltage Range (V) | 400AC | ||
| Output Current Range (A) | 16A | ||
| Communication Port | RS485 | ||
| Charging standard | Type2 | ||
| Standards/regulations | IEC61851-1 | ||
| Operating Temperature Range (℃) | -30~50 | ||
| Thermal Management | Natural Cooling | ||
| Warranty | 2 years | ||
| Certification | CE/CB | ||
| Model | GB-LM4.0 | |||||
| Battery System Data | ||||||
| Cell Chemistry | LiFePO4 | |||||
| Module Energy (kWh) | 4.09 | |||||
| Module Nominal Voltage (V) | 102.4 | |||||
| Module Capacity (Ah) | 40 | |||||
| Battery Module Qty in series.(Optional) | 2 | 3 | 4 | 5 | 6 | |
| System Nominal Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 | |
| System Operating Voltage (V) | 179.2~691.2 | |||||
| System Energy (kWh) | 8.18 | 12.27 | 16.36 | 20.45 | 24.54 | |
| System Usable Energy (kWh)1 | 7.36 | 11.04 | 14.72 | 18.4 | 22.08 | |
| Charge / Discharge Current(A)2 | recommend | 20 | ||||
| max | 40 | |||||
| peak | 50@2min | |||||
| Working Temperature(℃) | Charge：0~55/Discharge:-20~60 | |||||
| Communication Port | CAN2.0/RS485 | |||||
| Thermal Management | Natural Cooling | |||||
| Recommend Depth of Discharge | 90% | |||||
| Cycle Life | 25±2℃, 0.5C/0.5C, 70%EOL≥6000 | |||||
| Warranty3 | 10 years | |||||
| Certification | CE / IEC 62619 / VDE 2510-50 / UN38.3 | |||||
| Other Data | ||||||
| Humidity | 5~85%RH | |||||
| Altitude (m) | ≤2000 | |||||
| IP Rating of Enclosure | IP65 | |||||
| Noise (dB) | <55 | |||||
| Storage Temperature (℃) | 0~35 | |||||
| Dimension (W/D/H,mm) | 540*385*1100 | 540*385*1320 | 540*385*1540 | 540*385*1760 | 540*385*1980 | |
| Weight Approximate (kg) | 137 | 176 | 215 | 254 | 293 | |
| Installation Location | Floor Mount | |||||
[1] DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
Download
Additional information
| Matching inverter: | GB-S(5-20)K |
|---|---|
| Output power range: | 5000W–20000W |
| System power range: | 5000W–20000W |
| Maximum size: | 5000W–20000W |
| Maximum weight: | 269KG |
| Single battery pack capacity: | 4.09KWh |
| Charging module power: | 20KWh |
| Recommended depth of discharge: | 90% |
| Certificates: | CE, IEC, VDE, UL, FCC, TUV |
| Battery Type: | Lithium Iron Phosphate |
