SUN-6/8K-G06P3-EU-BM2-LV-P1

Key Features

• High Efficiency: Achieves a maximum efficiency of up to 98.5% with dual MPPT trackers, ensuring maximum energy output from your solar panels.
• Low Start-up Voltage: Starts up at a low voltage of 250V, enabling optimal performance even in low-light conditions.
• Zero Export Application: Supports zero export functionality, allowing you to manage your energy consumption and maximize self-consumption.
• VSG Application: Enables voltage support capabilities, contributing to grid stability.
• String Intelligent Monitoring: Offers optional string intelligent monitoring for enhanced system diagnostics.
• Wide Output Voltage Range: Provides flexible output voltage for compatibility with various grid configurations.
• Anti-PID Function: Optional anti-PID function helps prevent power degradation caused by PID phenomenon in PV modules.
• Comprehensive Protection: Includes DC polarity reverse connection protection, AC output overcurrent/overvoltage protection, short-circuit protection, thermal protection, and surge protection.
• Monitoring & Communication: Supports various communication interfaces, including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232, and monitoring modes.
• Three-Phase System: Designed for three-phase grid connections, supporting 127V/220V and 133V/230V with 50/60Hz frequency.
• Natural Cooling: Features a natural cooling system for optimal heat dissipation and reliable operation.

Technical Specifications

General Data

• Inverter Topology: Non-Isolated
• Cabinet Size: 283×463×178 mm (excluding connectors and brackets)
• Weight: 11 kg
• Cooling Type: Natural Cooling
• Warranty: 5 Years

Standards & Certifications

• Grid Regulation: NBR 16149, NBR 16150, EN 50549, RD 140
• EMC/Safety: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
• Ingress Protection Rating: IP 65

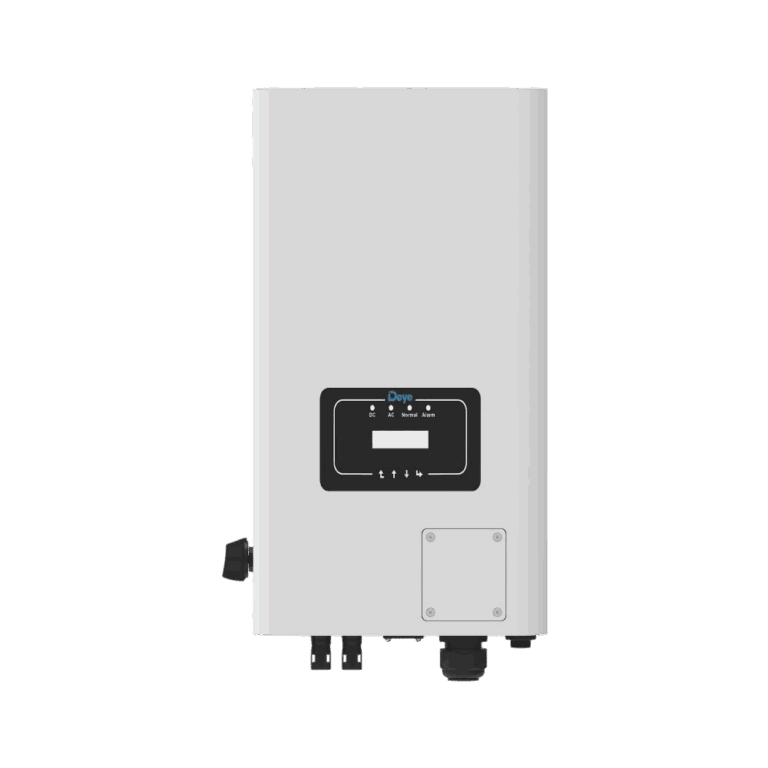

The Deye SUN-(6-8)K-G06-LV is a powerful and feature-rich three-phase inverter ideal for larger residential and commercial solar PV systems. This inverter provides high efficiency, advanced functionality, and robust protection for a secure and optimized energy generation solution in low-voltage grid environments.
