BOS-B (AS, AF, LATAM, EU, AU)
- High Storage Capacity: Delivers 215kWh per cluster, expandable up to 3.44MWh with 16 racks per PCS
- Advanced Battery Technology: LFP batteries ensure safety, longevity, and thermal stability
- Scalable Design: Modular expansion for systems ranging from 100kW to 2.5MW
- Efficient Energy Management: BMS for smart balancing and charging/discharging
- Durable and Reliable: Operates between -20°C to 55°C, 10-year warranty
- Extended Backup: Backup power up to 32 hours when configured with maximum racks
Description

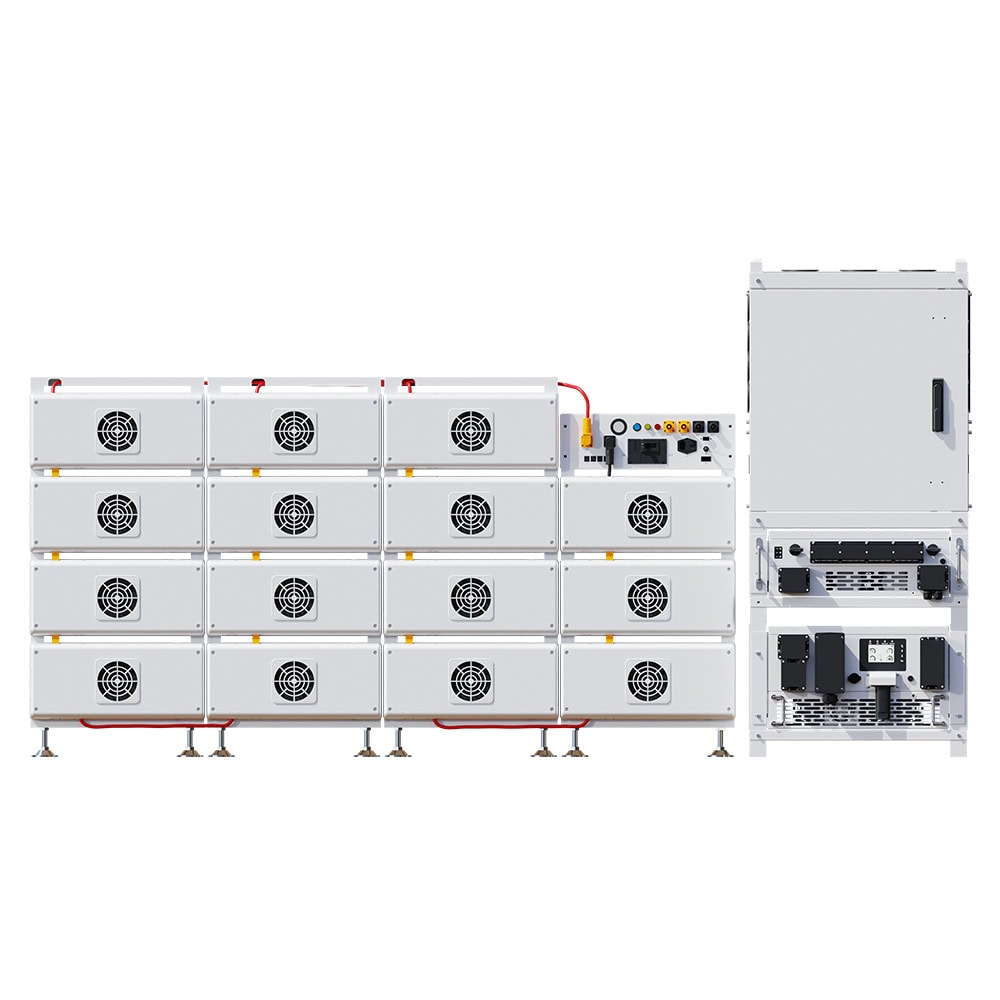

The BOS-B Battery System is a high-performance, scalable energy storage solution designed for Commercial and Industrial (C&I) applications. With its advanced lithium-ion technology, cutting-edge energy management features, and robust design, BOS-B is the ideal choice for reliable backup power, peak load shaving, and energy optimization in systems ranging from 100kW to 2.5MW
| Parameter | Details |
|---|---|
| Battery Type | Lithium-ion (LFP) |
| Nominal Voltage | 51.2Vdc |
| Energy Per Module | 14.3kWh |
| Storage Capacity | 215kWh (per cluster) |
| Max Count per PCS | 16 Packs |
| Efficiency | Up to 98.5% (PCS) |
| Cycle Life | 6,000 Cycles (90% DoD) |
| Operating Temp (Charge) | 0–55°C |
| Operating Temp (Discharge) | -20–55°C |
| Ingress Protection | IP20 |
Key Features
High Performance & Scalability
- Powerful Energy Storage Capacity: Each BOS-B cluster provides 215kWh of storage and supports up to 16 racks per PCS, ensuring a total storage capability of up to 3.44MWh per system.
- Expandable Design: Modular architecture allows for seamless expansion, supporting diverse energy needs in C&I environments.
- Battery Life: Rated for up to 6,000 cycles with a depth of discharge (DoD) of 90%, offering a 10-year warranty for long-term reliability.
Advanced Battery Technology
- Lithium Iron Phosphate (LFP): Offers exceptional safety, thermal stability, and longer lifespans compared to traditional batteries.
- Enhanced Efficiency: Integrated Battery Management System (BMS) guarantees smart charge balancing and optimized energy usage.
Intelligent Energy Management
- Easily integrates with the Deye Cloud Platform for real-time monitoring, smart energy scheduling, and dynamic charging/discharging strategies tailored to your application needs.
- Supports zero-export and time-of-use charging/discharging features for maximum cost savings.
Built for Reliability
- Robust Design: Features IP20-rated enclosures for safe indoor installation.
- Comprehensive Protection: Includes features like high-voltage hazard indication, fault alarms, and system diagnostics via the integrated LCD.
- Wide Operating Temperature Range: Designed to perform from -20°C to 55°C, suitable for challenging conditions.
Easy Installation and Maintenance
- Compact Rack-Mount Structure: With dimensions of 2150×1136×800mm per system, BOS-B is space-saving and easy to integrate into C&I setups.
- User-Friendly Interface: Includes touchscreen displays, Bluetooth connectivity, and USB ports for streamlined system controls and diagnostics.
Backup and Peak Shaving
- Provides up to 32 hours of backup power when configured with 16 racks per PCS.
- Handles high-load operations with a maximum charge/discharge current of 168A, ensuring uninterrupted service for critical loads.
Applications
- Commercial and Industrial Facilities: Peak shaving, load shifting, and grid stabilization.
- Critical Infrastructure: Uninterrupted power supply with extended backup capabilities.
- Renewable Energy Integration: Smoothly integrates with PV or hybrid systems to optimize self-consumption of renewable energy.
