Description

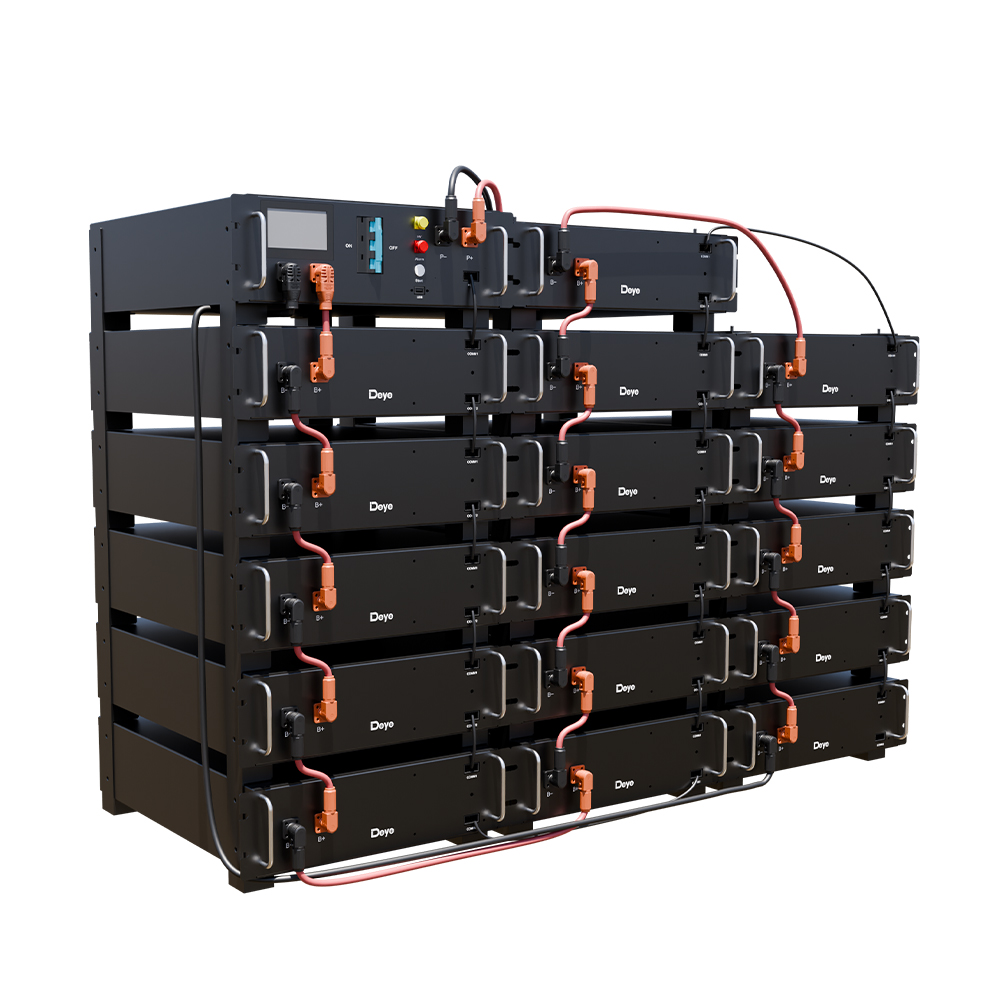

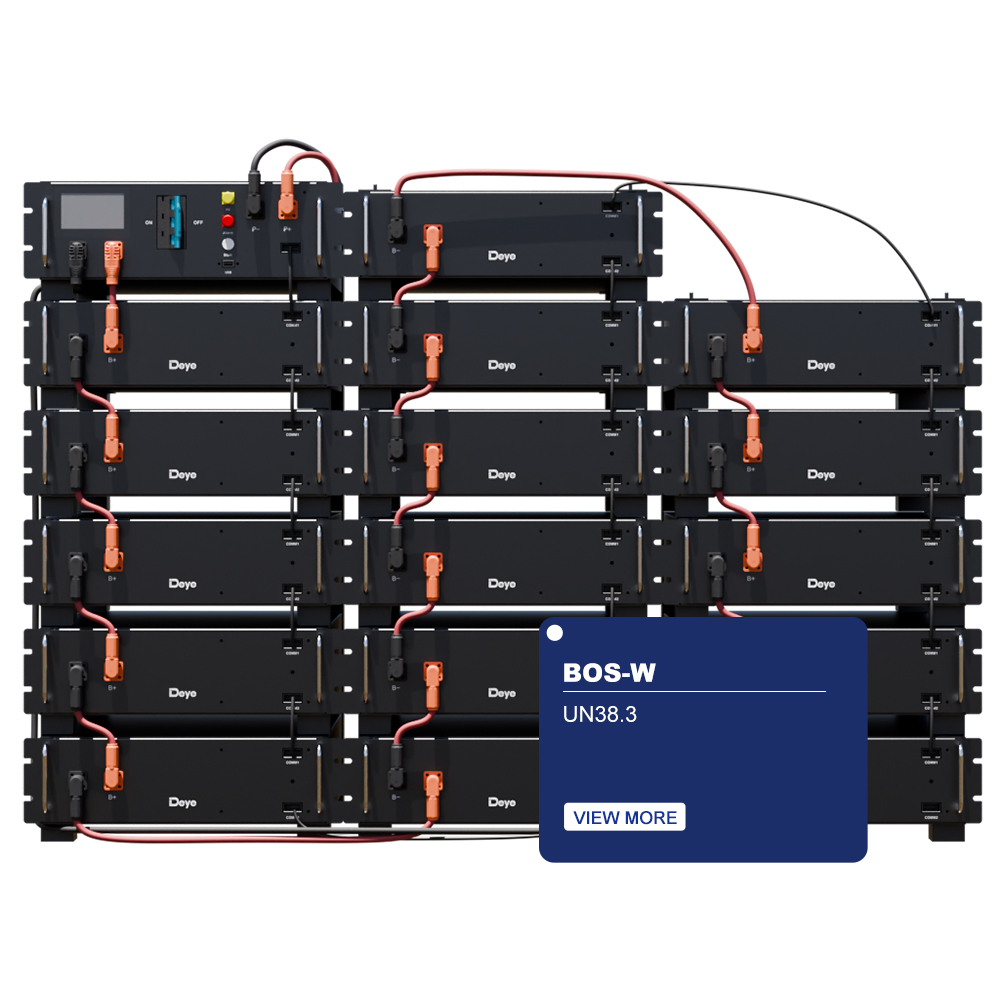

Small-Scale C&I Energy Storage Solution
| Specification |
Value |
| Model |
BOS-W |
| Cell Chemistry |
Lithium Iron Phosphate (LiFePO₄) |
| Module Energy |
5.12 kWh |
| Nominal Voltage |
51.2 V (High Voltage Battery Configuration) |
| Capacity |
100 Ah |
| Operating Temperature |
-20°C to 55°C |
| Communication |
CAN2.0 / RS485 |
| Humidity Range |
5% to 85% RH |
| Maximum Altitude |
<3000 m |
| IP Rating |
IP20 |
| Cycle Life |
>6000 cycles at 70% End of Life (EOL) |
| Warranty |
5 years |
| Certification |
UN38.3 compliant |
Key Features:
- Safe & Reliable: Utilizes LFP batteries with low self-discharge (up to 6 months without charging).
- Smart Protection: Shields against over-discharge/charge, current issues, and extreme temps. It auto-manages charge, discharge, and cell balancing.
- Flexible Expansion: Supports multiple battery modules in parallel, USB, and remote upgrades.
- No Memory Effect: Performs excellently with shallow charge and discharge cycles.
- Wide Temp Range: Operates in a temperature range from – 20 to 55 °C.
- High Performance: Delivers superior discharge and boasts a cycle life of over 6000 times.
- Practicality & Universal Compatibility: Achieve 100% unbalanced output. It can AC – couple to retrofit existing solar systems and has dual independent battery circuits.
- Versatile & High-Performance: Comes with a TOU function (six time periods for battery charging/discharging). It’s diesel generator – ready and suitable for VSG application.
This solution is engineered to meet diverse C&I energy storage needs with efficiency, reliability, and flexibility.
