Description

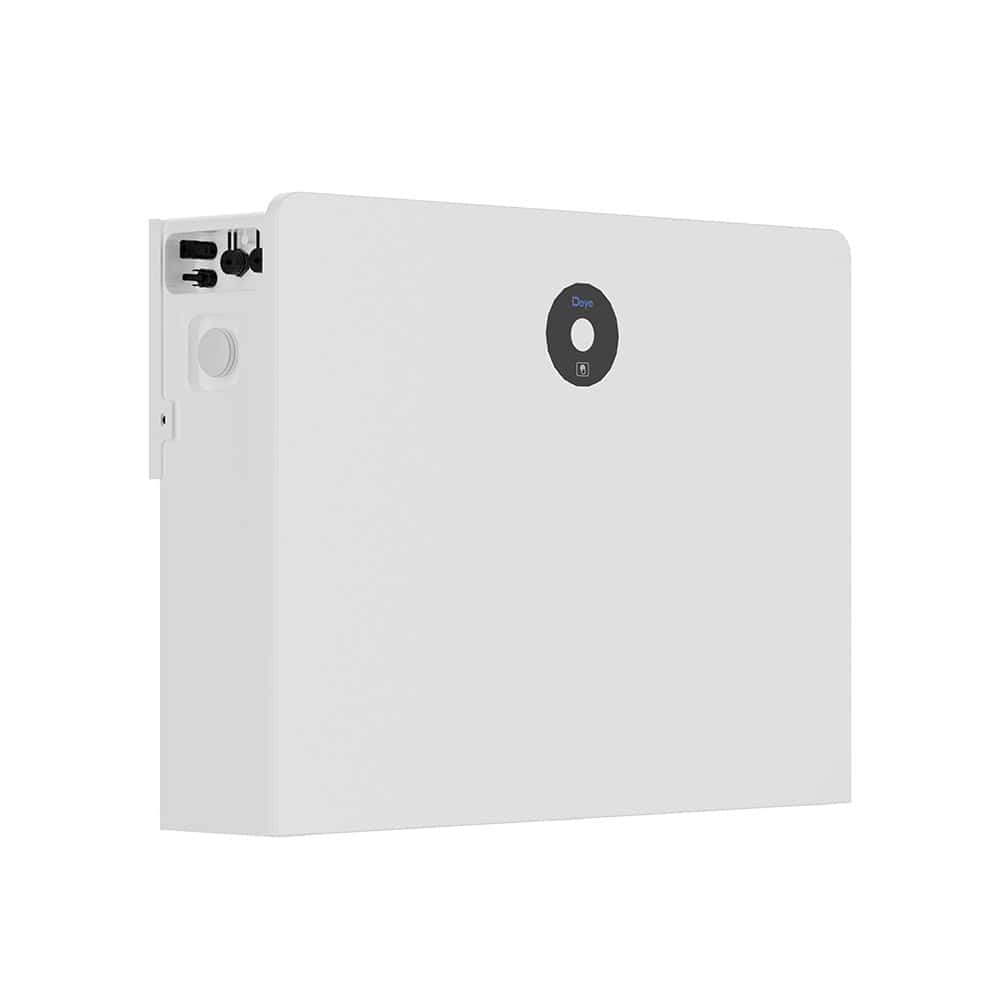

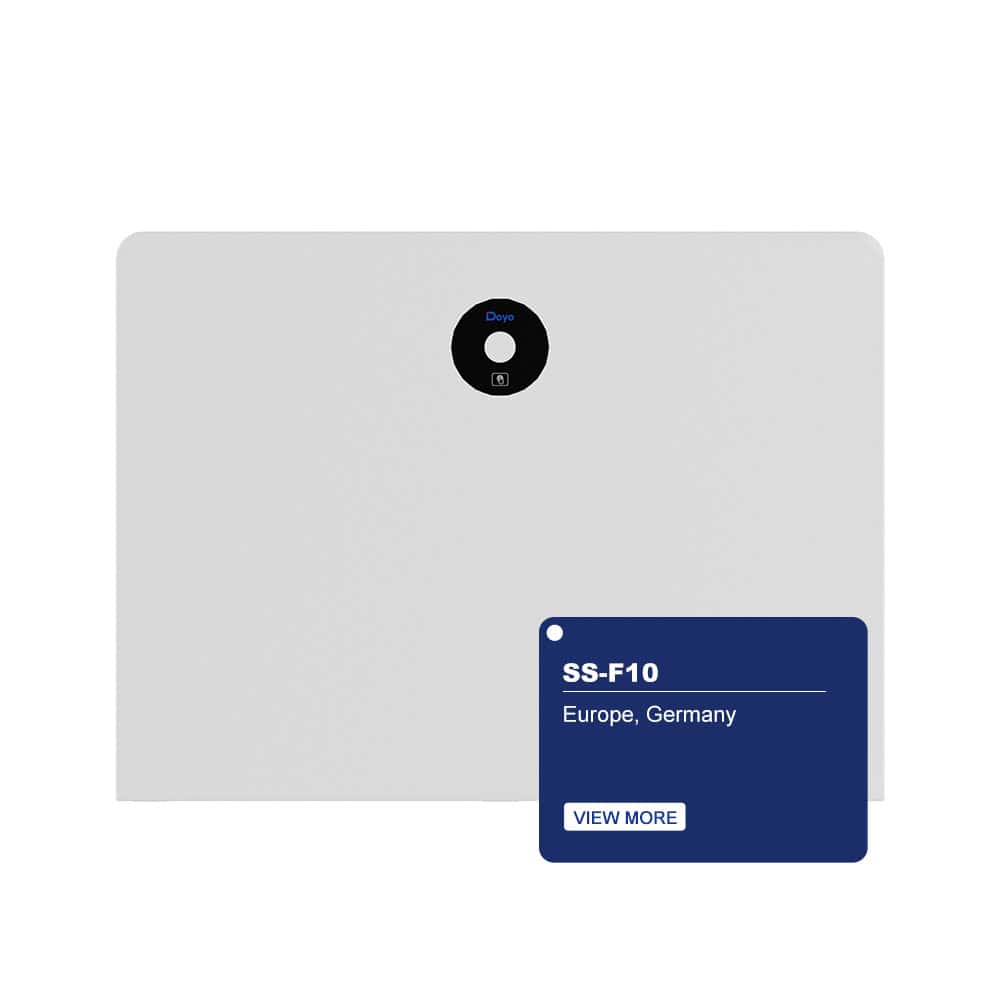

Introducing the SS-F10 battery system, a top – tier energy storage solution.
| Specification Item | SS-F10 |
|---|---|
| Cell Chemistry | LiFePO₄ |
| Battery System Energy (kWh) | 10 |
| Battery System Capacity (Ah) | 20Ah |
| Battery System Nominal Voltage (Vdc) | 512 |
| Battery System Operating Voltage (Vdc) | 448 – 584 |
| Discharge/Charge Current – Recommend (A) | 10 |
| Discharge/Charge Current – Max (A) | 20 |
| Ambient Operating Temperature (°C) | Charge/Discharge: – 20 -55 |
| Status Indicator | SOC, fault code |
| Communication Port | CAN2.0/RS485 |
| Humidity | 0% – 100%RH |
| Altitude | 3000m |
| IP Rating of Enclosure | IP65 |
| Dimension (W/D/H, mm) | 850×170×650 |
| Weight Approximate (kg) | 85 |
| Installation Location | Wall/Floor mount |
| Recommend Storage Temperature (°C) | 0 – 35 |
| Recommended Depth of Discharge | 90% |
| Cycle Life | 25±2°C, 0.5C/0.5C, EOL 70% ≥6000 |
| Warranty | 10 years |
| Certification | Europe, Germany |
Key features
- Cutting – Edge Cell Chemistry: Utilizes LiFePO₄ cells, ensuring safety and long – term reliability.
- Impressive Energy & Voltage: Boasts a 10 kWh battery system energy and a nominal voltage of 512 Vdc, with an operating voltage range of 448 – 584 Vdc, delivering robust power.
- Superb Cycle Life & Warranty: Offers ≥6000 cycles with 70% EOL capacity retention and a 10 – year warranty, guaranteeing lasting performance.
- Intelligent Management & Safety: Features an integrated master – slave BMS board, optional DC – side intelligent arc detection, and can parallel up to 6 units for a max 60 kWh capacity.
- User – Friendly Operation & Maintenance: Equipped with MC4 quick connectors for easy installation and visual fault codes for local diagnostics and remote real – time monitoring.
- Wide Environmental Adaptability: Operates in -20°C to 55°C, 0% – 100% RH humidity, and up to 3000m altitude, with an IP65 – rated enclosure.
- Sleek Design & Practicality: Has a sleek brushed metal finish with an integrated LCD screen, and supports wall/floor mounting.
Ideal for various applications, the SS – F10 combines power, durability, and ease of use.
