Description

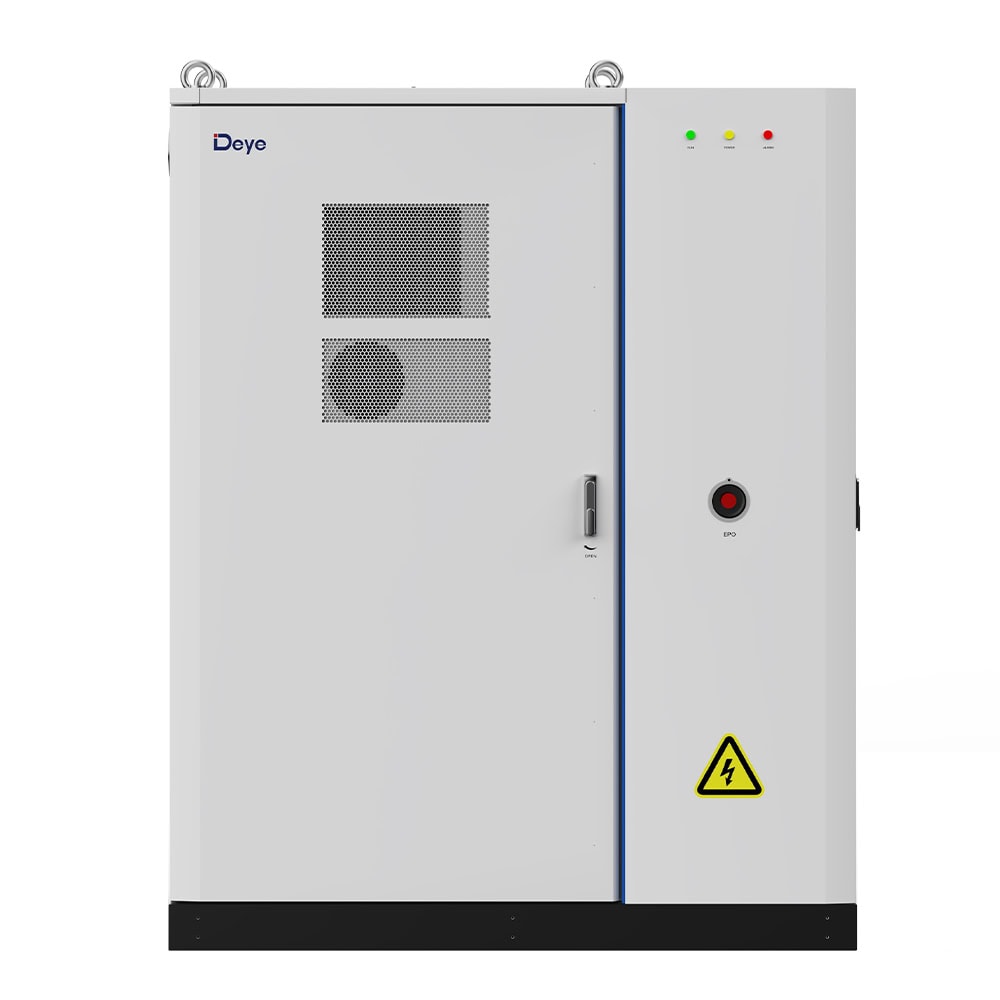

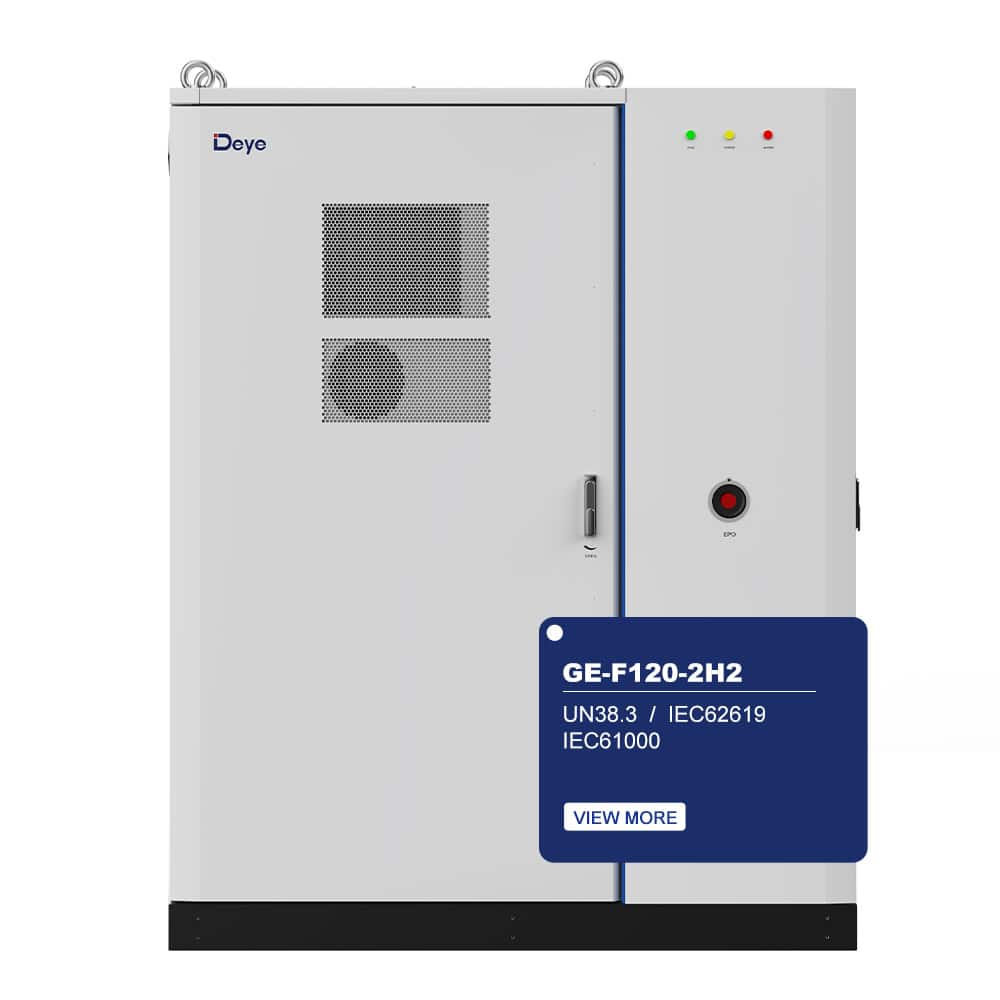

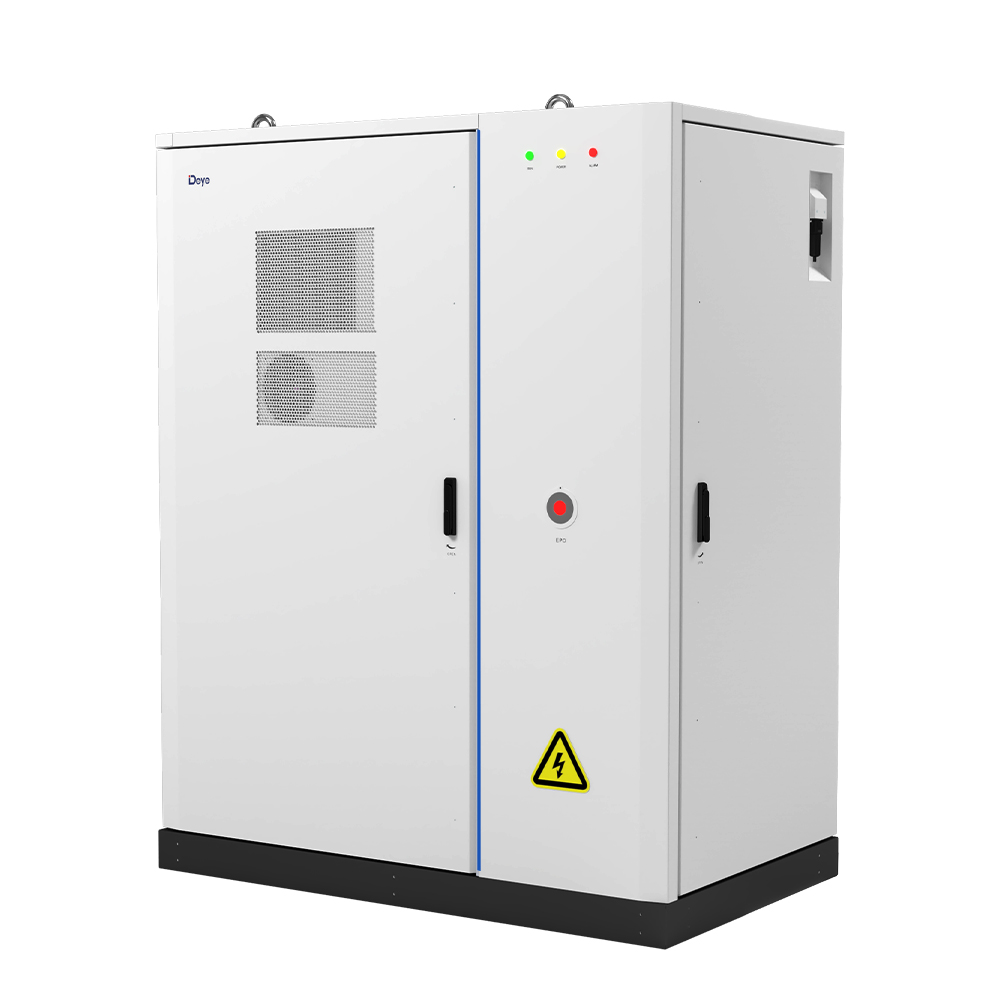

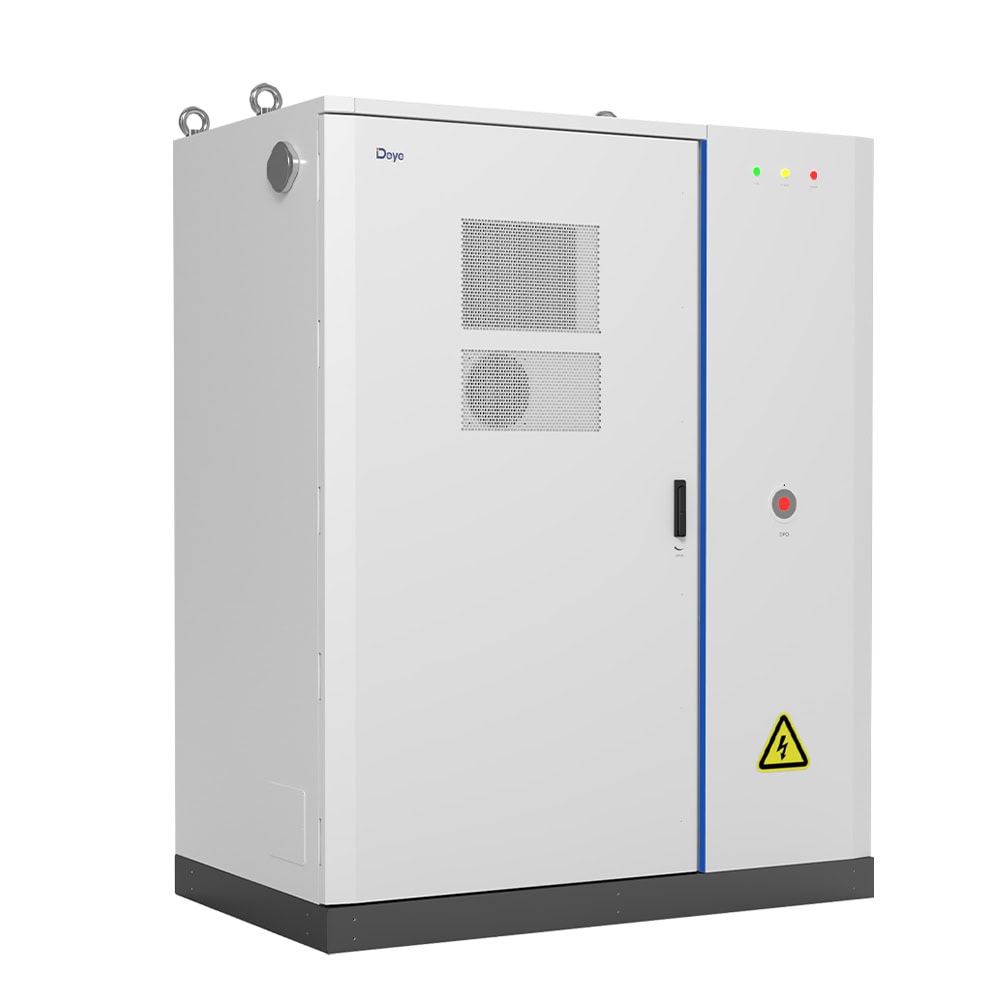

Introducing the GE-F120-2H2, a top – notch energy storage system that combines outstanding performance with reliable safety.
Parameter | Specification for GE-F120-2H2 |
---|---|
Nominal Output Power / UPS Power (W) | 50000 |
AC Output Frequency and Voltage | 50 / 60Hz; 220 / 380, 230 / 400Vac |
Grid Type | 3L / N / PE |
Number of Parallel (Off-grid) | 10 |
Energy Configuration (kWh) | 122.8 |
Dimension (W × D × H, mm) | 1780 × 1056 × 2235 |
Weight Approximate (kg) | 2090 |
AC Output Rated Current (A) | 75.8 |
Battery Operating Voltage (V) | 500 ~ 700 |
Max. RTE | 89% |
Battery Chemistry | LiFePO₄ |
IP Rating of Enclosure | IP55 |
Installation Method | Floor-Mounted |
Storage Temperature (°C) | 0 ~ 35 |
Operating Temperature (°C) | -20 ~ 55 (>43 derating) |
Warranty | 10 years |
- Power and Output: Boasting a nominal output power of 50,000 W, it delivers AC output at 50/60Hz with voltages 220/380, 230/400Vac, ensuring stable power supply for various applications. The AC output rated current reaches 75.8 A, meeting high – power demand effortlessly.
- Safety and Longevity: It utilizes LiFePO₄ batteries, renowned for safety and durability. With ≥6000 cycles and 70% EOL (End – of – Life) capacity retention, plus 5 – level extreme safety protection and a 10 – year warranty, it guarantees long – term reliable operation.
- Flexibility and Integration: Supporting battery expansion up to 3600 kWh (off – grid) and featuring integrated technology like EMS, hybrid inverter, and BMS integration, along with power supply redundancy design and black start/off – grid operation capabilities, it adapts to diverse energy needs.
- Specifications: With an energy configuration of 122.8 kWh, dimensions of 1780×1056×2235 mm, and a weight of around 2090 kg, it’s floor – mounted for easy installation. Operating within a temperature range of – 20 ~ 55°C (>43°C with derating) and storage temp of 0 ~ 35°C, it suits various environments.
