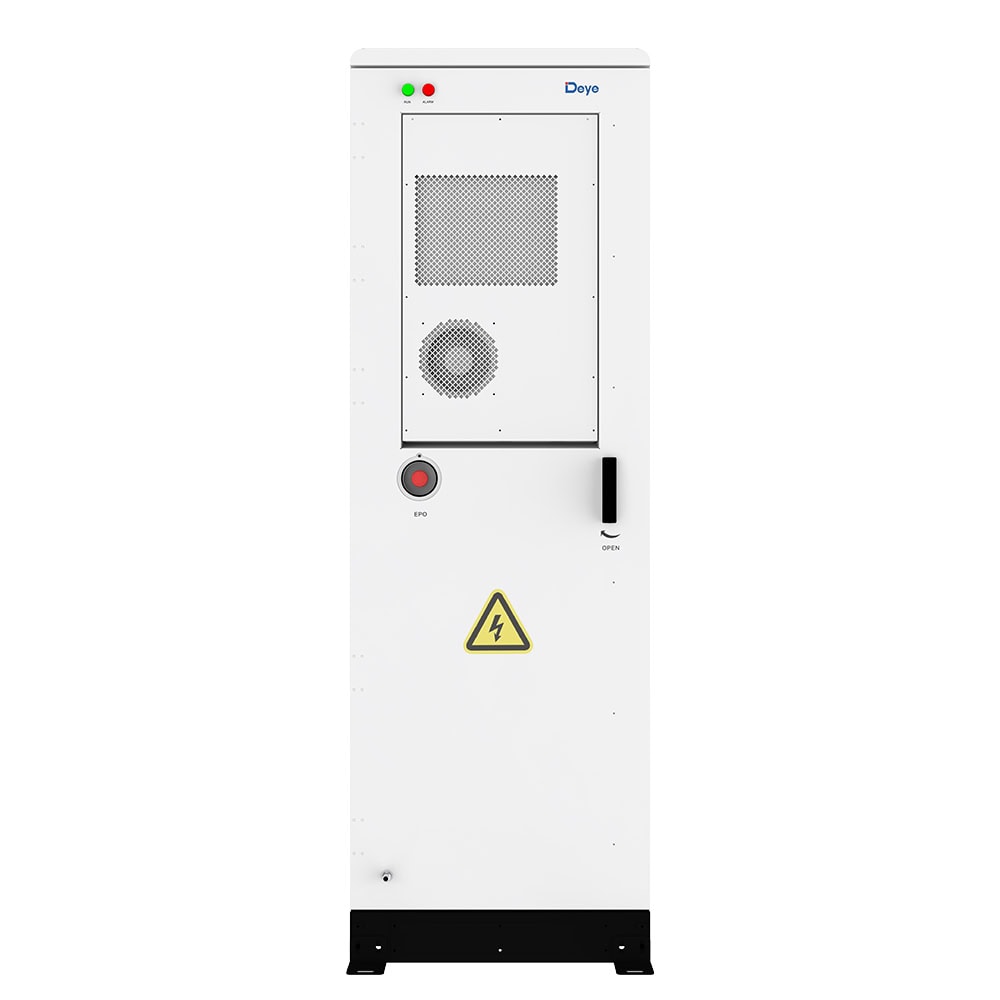

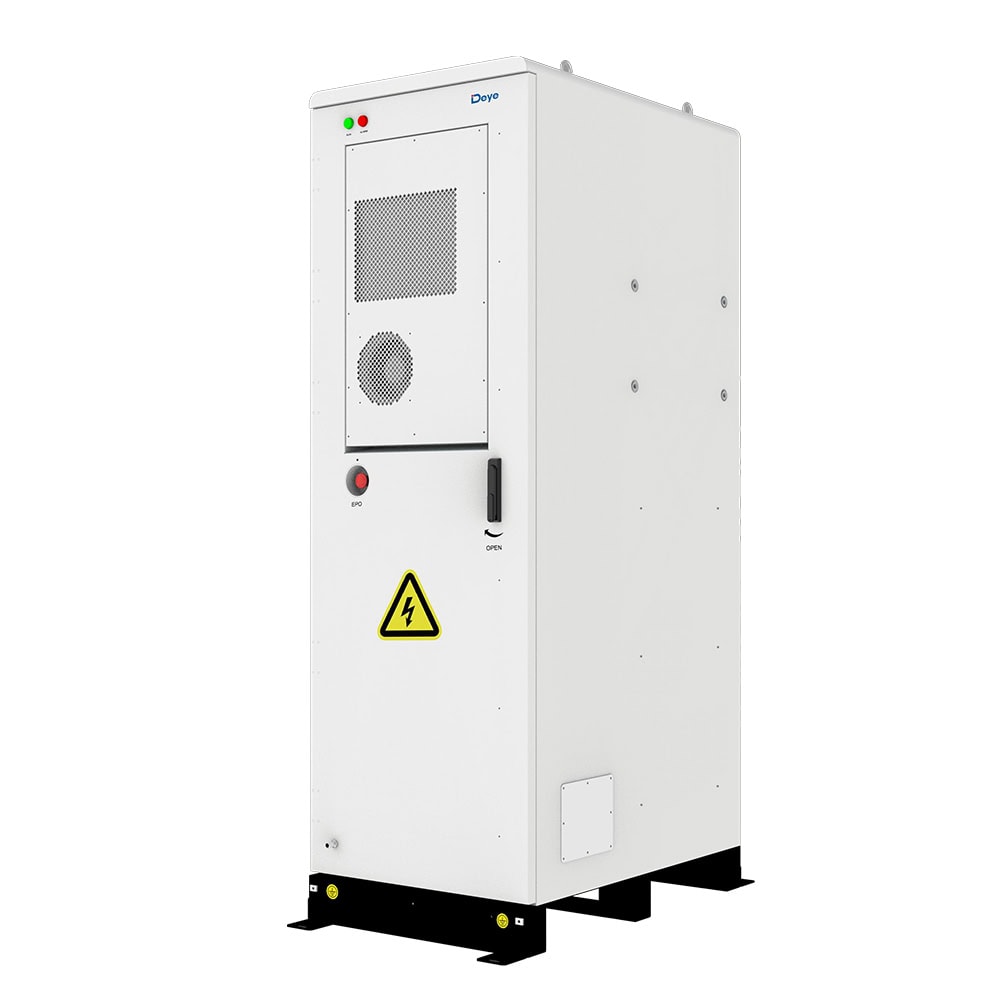

GE-F60

Description

Key Features:

• High Energy Density: Each battery module packs 5.12 kWh of energy with a nominal voltage of 51.2V and 100Ah capacity. The standard 12-module system provides 61.44 kWh of total energy and 55.29 kWh of usable energy.
• Powerful Performance: The GE-F60 supports a rated DC power of 61.44 kW. It can handle charge/discharge currents of 50A (recommended), 100A (nominal), and up to 125A peak discharge for 2 minutes at 25°C.
• Wide Operating Range: With a working temperature range of 0-55°C for charging and -20-55°C for discharging, the GE-F60 can perform in various environments. It is rated for up to 85% relative humidity and altitudes ≤ 2000m.
• Expandable Capacity: The modular design allows for easy capacity expansion. A single system can be expanded up to 360 kWh. Multiple systems can be paralleled for even larger capacities up to 600 kWh.
• Advanced Safety Features: The GE-F60 prioritizes safety with an aerosol fire suppression system, combustible gas and smoke detectors, active ventilation, and a fire alarm. The IP55-rated enclosure provides protection against dust and water.
• Integrated Battery Management: The built-in battery management system (BMS) enables monitoring and protection of the battery modules. It interfaces with the energy management system (EMS) and hybrid inverter for comprehensive control.
• Flexible Installation: The rack-mounted design allows for installation in various settings. The compact footprint of 735 x 1045 x 2235 mm and weight of approximately 1010 kg facilitate transportation and setup.
• Long Lifespan: With a cycle life of ≥6000 cycles at 90% depth of discharge (25±2°C, 0.5C charge/discharge, 70% end of life), the GE-F60 provides long-term value. It comes with a 10-year warranty.

The Deye GE-F60 battery energy storage system combines high performance, safety, and flexibility to meet the needs of demanding energy storage applications. Its expandable capacity, wide operating range, and integrated management features make it a reliable choice for projects requiring robust and scalable energy storage solutions.
