MC-L430-2H2 Series (EU)

  • Smart Cloud: Custom load algorithms, 24/7 O&M, battery alerts, device-cloud link
  • Top Safety: Self-contained fire/explosion protection, 5-level electrical safety, high-voltage interlock
  • Flexible Expansion: All-in-one PCS/BMS/EMS, 8 parallel cabinets, 2-4h storage, high energy density
  • Multi – Scenarios: EV charging expansion, peak shifting, virtual power plant, off-grid use
  • Strong Performance: 5-level safety protection, 10ms grid switching, 10-year warranty, 420kW DC fast charge
SKU: MC-L430-2H2 Series (EU)Category:C&I ESS Solution
Contact Us

Description

Specification MC-L430-2H2 Series
Safety Protection 5-Level extreme protection
Grid Transfer Response ≤ 10 ms seamless on/off grid
Warranty 10 years (incl. coolant)
DC Fast Charging Up to 420 kW DC coupling

MC-L430-2H2 Series:

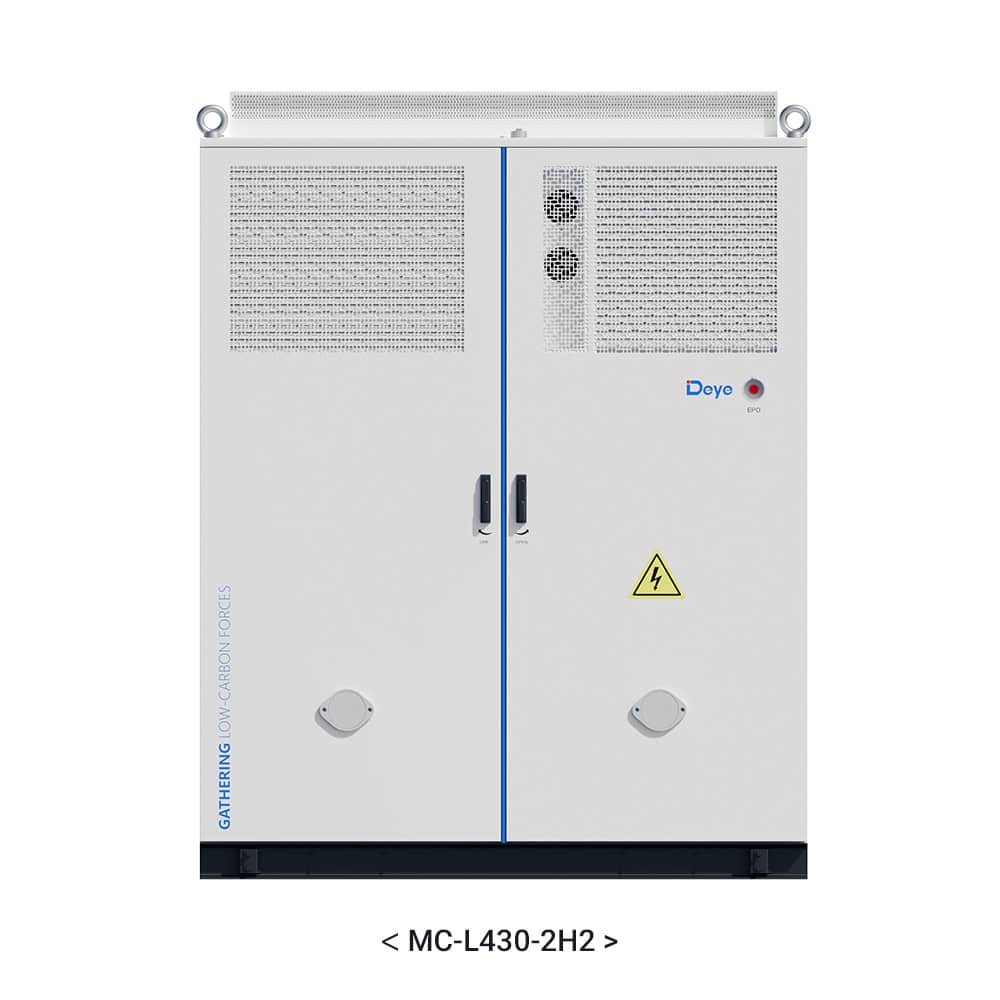

  • MC-L430-2H2: This model is an AC Battery Energy Storage System (BESS) with a nominal capacity of 280Ah and a nominal energy of 430.08kWh. It operates at a nominal DC voltage of 768Vd.c. and has a DC voltage range of 636Vd.c to 876Vd.c. The system is housed in an IP54-rated enclosure and weighs up to 4600kg.

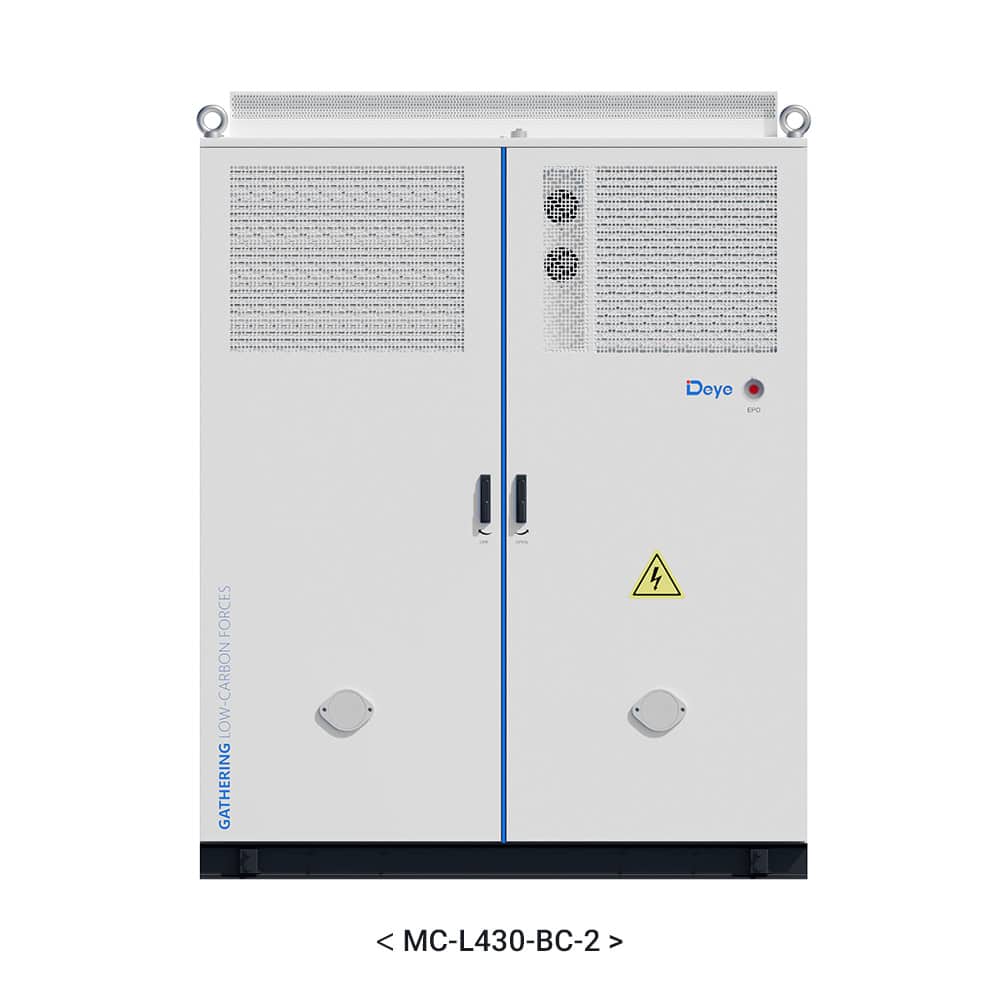

  • MC-L430-BC-2: This is a DC Battery Energy Storage System (BESS). It shares the same battery specifications as the MC-L430-2H2, with a nominal capacity of 280Ah, nominal energy of 430.08kWh, a nominal DC voltage of 768Vd.c., and a DC voltage range of 636Vd.c to 876Vd.c. However, it is slightly lighter, weighing up to 4300kg, and is also housed in an IP54-rated enclosure.

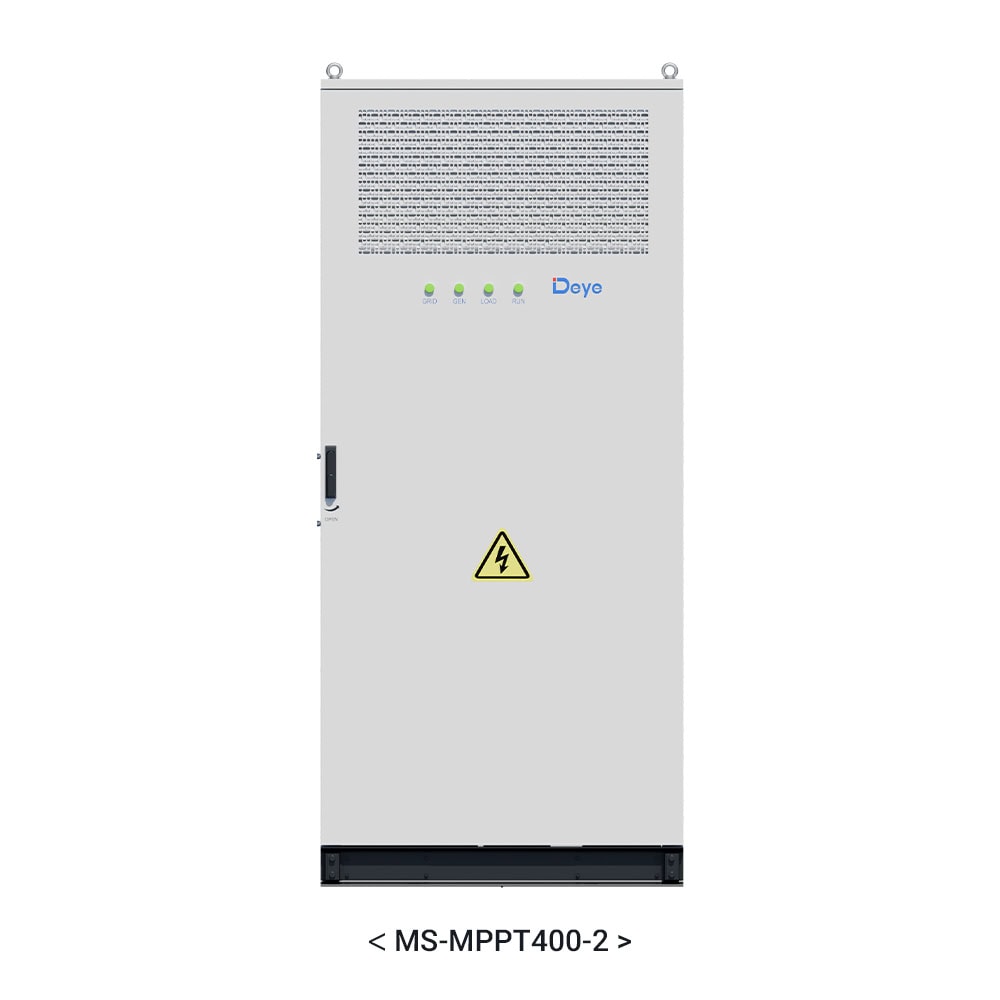

  • MS-MPPT400-2: This model is a Maximum Power Point Tracker (MPPT) with a rated power of 250kW for the load, 500kW for the power grid, and 500kW for an oil engine. It has a maximum PV input power of 200kW and a wide MPPT voltage range of 180V to 850V. This unit is designed for efficient solar energy harvesting with an MPPT efficiency of over 99.9%. It is significantly lighter than the other two models, weighing up to 700kg, and comes in an IP54-rated enclosure.

Intelligent Cloud Platform

  • Features customizable load algorithmic modules for tailored energy management.
  • Enables 24-hour online operation and maintenance (O&M) for uninterrupted monitoring.
  • Provides battery life and safety warnings to ensure timely maintenance.
  • Allows seamless device-cloud interconnection for efficient data exchange.

Ultimate Safety

  • Equipped with a self-contained fire protection system for rapid fire response.
  • Incorporates an explosion-proof safety protection system to mitigate explosion risks.
  • Boasts five-level electrical safety protection for comprehensive electrical hazard prevention.
  • Utilizes high-voltage interlocking to prevent loaded arc operation, enhancing operational safety.

Versatile Expansion

  • Adopts a PCS/BMS/EMS all-in-one modular design for easy integration and scalability.
  • Supports up to 8 cabinets in parallel to meet large-scale energy storage needs.
  • Accommodates 2-hour and 4-hour energy storage applications for flexible energy deployment.
  • Offers higher energy density, reducing the physical footprint of the system.

Download

Deye MC-L430-2H2 Series C&I ESS Datasheet EN

Deye ESS User Manual MC-L430-2H2 EU (EN) V01

Certificate

Statement

DEYE Statement on Battery Expansion and Insulation Fault
