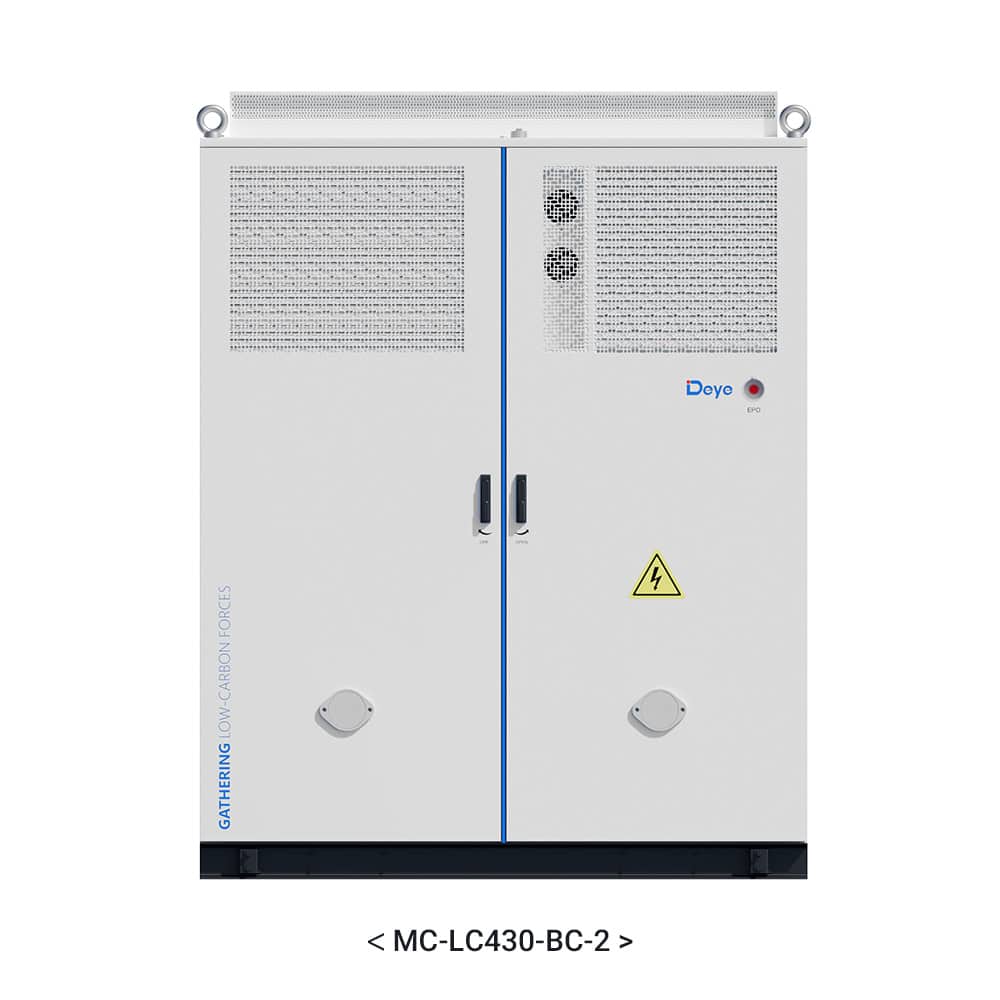

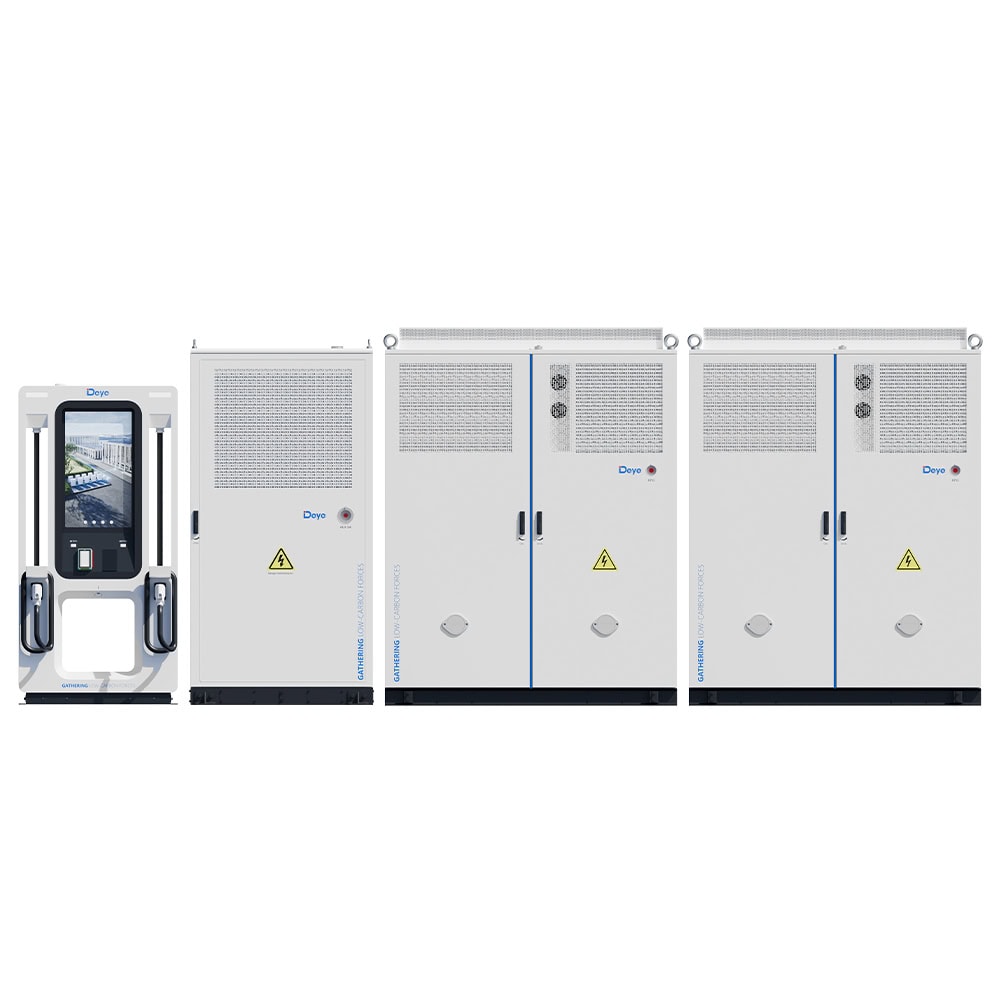

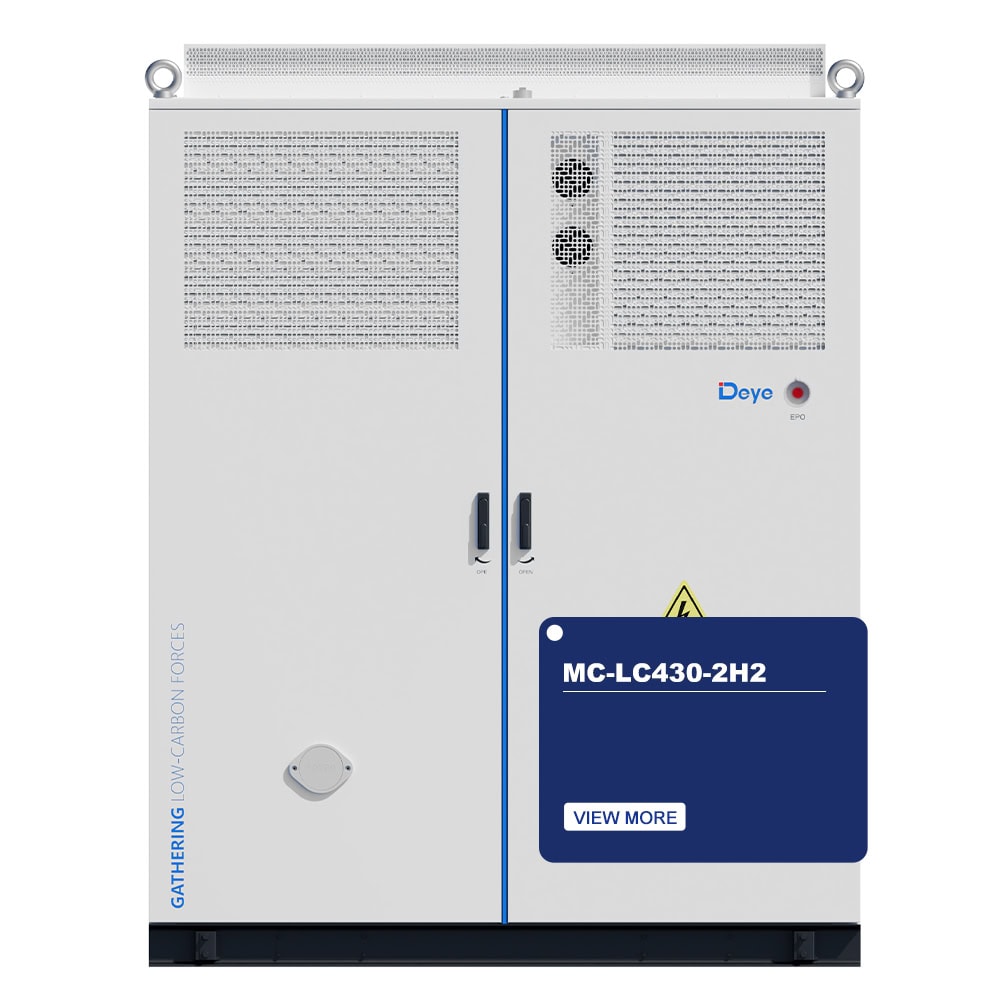

MC-LC430-2H2 Series
Core Architecture: A cloud-interconnected platform with modular, expandable PCS/BMS/EMS integration.Safety Standard: Guaranteed by a multi-layer 3+3 protection system and 5-level fire defense protocol.Key Performance: Ensures seamless 10ms grid switching and supports DC coupling for PV and ESS.Deployment Value: Designed for diverse scenarios including energy arbitrage, virtual power plants, and backup power.
Description
10ms
Seamless on-grid and off-grid
5 Level
Extreme safety protection
Detection, early warning, smoke exhaust, fire fighting, explosion venting
480kW
DC fast charging
DC coupling for ESS and charging
Intelligent Cloud Platform
Customizable load algorithmic modules
24-hour online O&M
Battery life and safety warning
Device cloud interconnection
Ultimate Safety
3+3 Fire Protection System
3+3 Electrical Safety Safeguards
AC Leakage & DC Insulation Detection
High-voltage interlocking, preventing loaded arc operation
Versatile Expansion
PCS/BMS/EMS All-in-one modular design
Support up to 10 cabinets in parallel
Support 2/4/6/8-hour energy storage applications
Higher energy density to reduce footprint

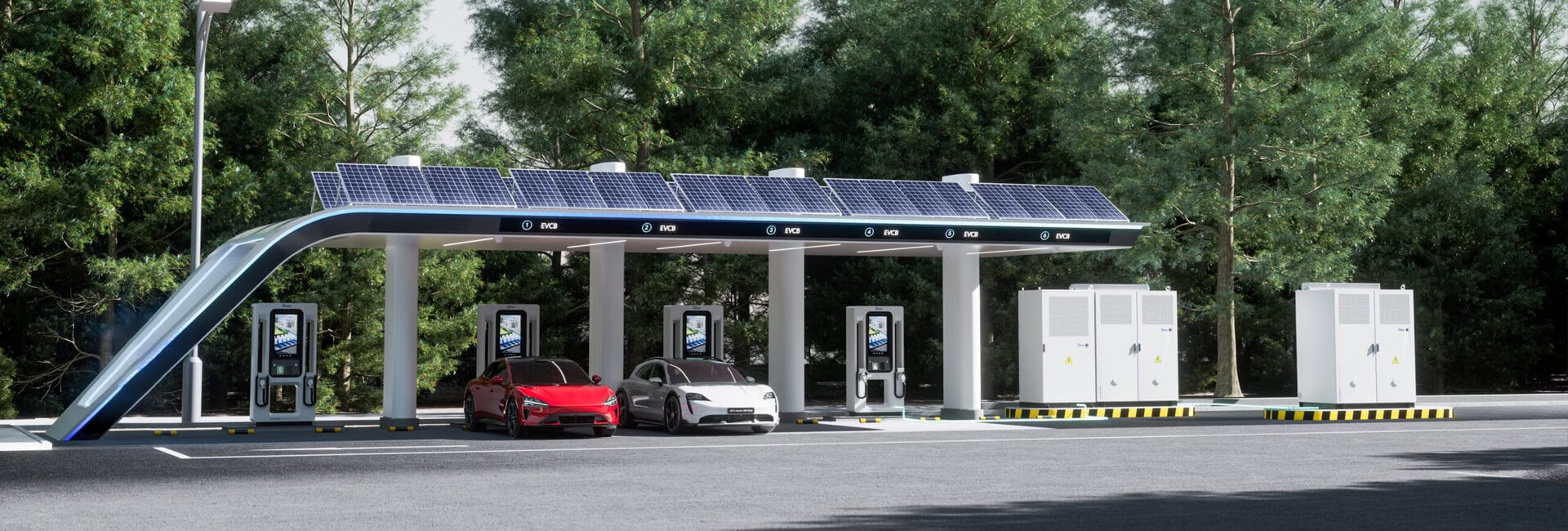

PV and BESS DC Coupling
Multiple Application Scenarios
Peak-to-Valley arbitrage/Peak-to-Valley shifting
Virtual power plant ready
Off-grid operation (islands, communication base stations, etc.)
System parameter
Operating Temperature
-25°C ~ +55°C
Storage Temperature
-30°C ~ +60°C
Humidity
0 ~ 95% ( No condensation )
Type of cooling
Liquid cooling
Fire Suppression
Aerosol, Water
Ingress Protection
IP54
Anticorrosion grade
C4-M (Optional C5)
Altitude
≤2000m
Communication
RS485, Modbus TCP, DIO
Weight
≤5000kg
Dimensions (W × D × H)
2000 × 1350 × 2480mm
DC Data
Battery
LiFePO₄
Nominal Capacity
280Ah
Nominal Energy
430.08kWh
Nominal DC Voltage
768Vd.c.
DC Voltage Range
636Vd.c. ~ 876Vd.c.
Charge and discharge rate
charge 0.5P, discharge 1P
AC Data
Nominal AC Voltage
380/400V 3L+N+PE
Rated Frequency
50 / 60Hz
Rated Power
200kW
Maximun Power
220kW ( 1.1 times of rated power )
Power Factor
-1~+1
Certificate
