MS-G215 (CHN) Micro Grid System

  • Multi-fusion: Integrates EMS converter and BMS, features power supply redundancy design and supports black start function
  • Intelligent temperature control: In full-power operation, battery’s max temperature is under 35°C, with temperature difference less than 8°C
  • Scalable: Allows expansion of MPPT module, charging module and diesel generator connection
  • Reliable: Intelligent BMS offers full protection and proactive balancing to extend battery cycling life
  • Safer: Uses Lithium Iron Phosphate (LFP) Battery and adopts aerosol fire extinguishing solution
  • High protection: Provides 1-hour flame retardant protection and C4 shell protection
SKU: MS-G215 (CHN)Category:C&I ESS Solution
Contact Us

Description

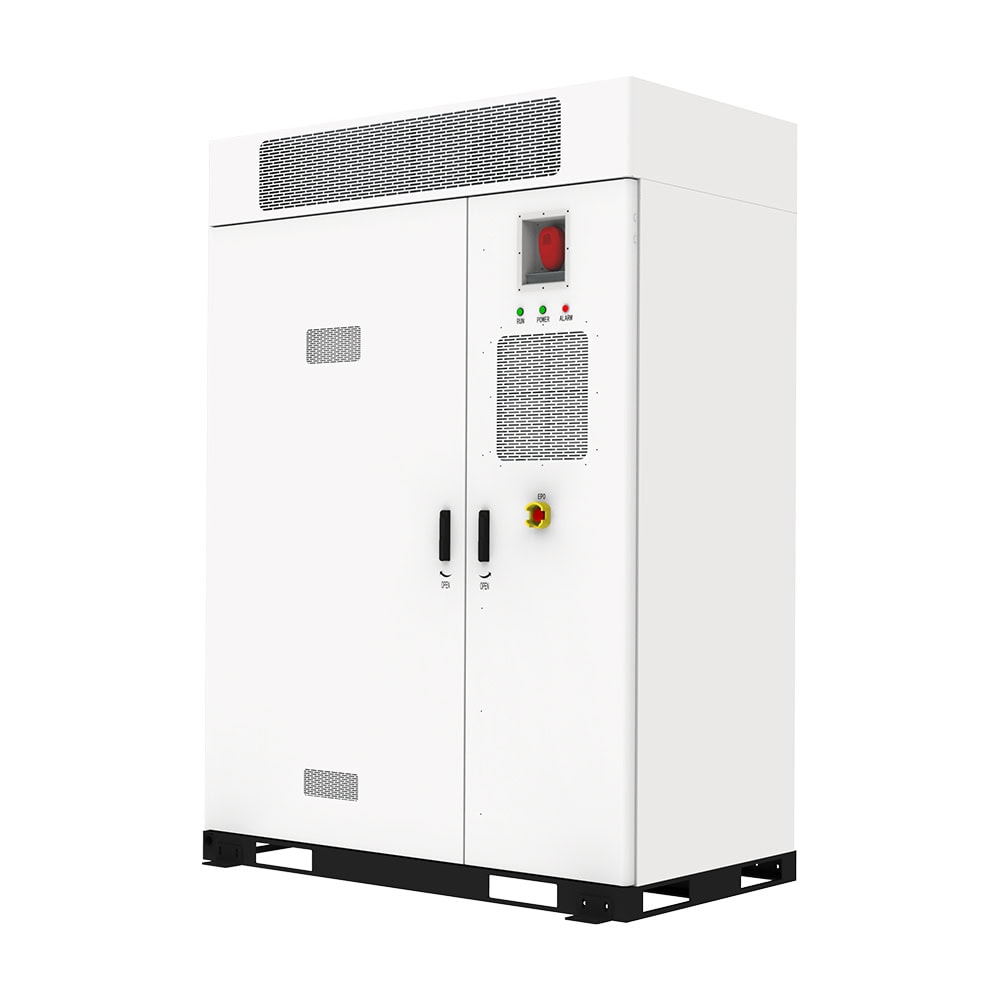

MS-G215 Micro Grid System

The MS-G215 Micro Grid System is a cutting-edge energy solution with a nominal output power of 100KW and an energy storage capacity of 215KWh.
Item Specification
Model MS-G215
Nominal Output Power (KW) 100
AC Output Frequency and Voltage 50/60Hz; 380/400Vac
Grid Type 3L/PE
Energy (kWh) 215
Dimension (W x D x H, mm) 1765x1000x2500
Weight Appr. (kg) 2.7T
Battery Operating Voltage (V) DC: 660 ~ 876
Max. RTE 88%
System Communication ETH/4G
System Operating temperature range (°C) -20~45
Max. working altitude (m) ≤3000
IP Rating of Enclosure IP54
Anti-corrosion grade C4
Installation Style Floor-Mounted

Product Advantages

  • Multi-fusion: It comes with an EMS converter and BMS inside. The power supply redundancy design ensures stable power supply, and it supports the black start function for quick recovery in power outage situations.
  • Intelligent temperature control: During full-power operation, the battery’s maximum temperature is kept below 35°C, and the temperature difference is less than 8°C, ensuring optimal battery performance.
  • Scalable: It supports the expansion of MPPT modules, charging modules, and diesel generator connection, allowing for flexible system expansion as per needs.
  • Reliable: The intelligent BMS provides complete protection and proactive balancing solutions, effectively extending the battery’s cycling life.
  • Safer: Utilizing Lithium Iron Phosphate (LFP) Battery, the system adopts an aerosol fire extinguishing solution for enhanced safety.
  • High protection: It offers 1-hour flame retardant protection and C4 shell protection, ensuring durability in various environments.
With an AC output frequency of 50/60Hz, voltage of 380/400Vac, an IP54 enclosure rating, and a 10-year warranty, the MS-G215 is a reliable choice for meeting diverse energy demands.

Download

Deye MS-G215 Datasheet EN

Deye MS-G215 User Manual Chinese

Certificate

Statement

DEYE Statement on Battery Expansion and Insulation Fault
