MS-GS215-2H3
- 100 kW AC output & 200 kWp PV input with 215 kWh storage
- Scales to 20 units on-grid (2 MW/4.3 MWh) or 10 units off-grid (1 MW/2.15 MWh)
- LFP batteries, aerosol fire extinguishing, auto-venting & explosion-proof compartment
- Thermal management (< 35 °C), peak-valley control, anti-backflow & overload protection
- IP54/C5 rated, –20 °C to 50 °C operation, up to 3000 m altitude
- 6000 cycles @ 70 % EOL, 97.6 % max efficiency, 10-year warranty
- Integrated BMS/PCS, MPPT expansion, CAN/RS485/Ethernet communication
SKU: MS-GS215-2H3
Category: High Voltage Series (HV)
Description

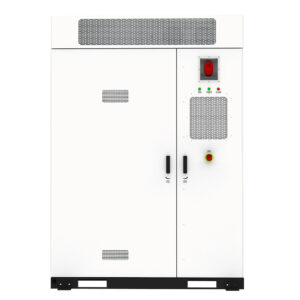

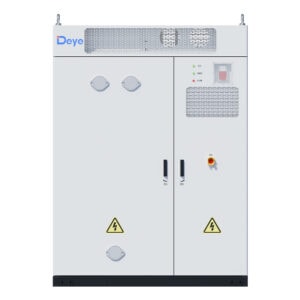

DEYE WINTER MS SERIES: MS-GS215-2H3 Solar & Battery Energy Storage System
The MS-GS215-2H3 is a comprehensive and robust solar and battery energy storage solution designed for both on-grid and off-grid operations. As part of the Deye Winter MS Series for Commercial & Industrial (C&I) applications, this system is engineered for scalability, safety, and intelligent control, ensuring a reliable power supply.
Parameter | Value |
---|---|
AC Output Power | 100 kW (380 / 400 Vac, 50 / 60 Hz) |
PV Input Power | 200 kWp |
Energy Capacity | 215 kWh |
Round-Trip Efficiency | 88 % |
Max. Parallel Units (Off-Grid) | 10 pcs |
Communication | ETH / 4G (system) · CAN / RS485 / ETH (converter) |
Operating Temp. | –20 °C to 50 °C |
Altitude | ≤ 3,000 m |
Dimensions (W × D × H) | 1,865 × 1,000 × 2,500 mm (system) |
Weight | 2,732 kg |
Protection & Certification | IP54 · C5 · Class 1 SPD · UN3536 · IEC standards |
Warranty | 10 years or ≥ 6,000 cycles |
Converter Max Efficiency | 97.6 % |
THD | < 3 % |
Key Features:
- High-Capacity Power: Delivers an AC output power of 100 kW and supports a PV input power of 200 kWp, with a substantial energy capacity of 215 kWh.
- Scalable Design: Adapt the system to your needs by connecting multiple units. It supports up to 20 units in parallel for on-grid applications (maximum 2MW/4.3MWh) and up to 10 units for off-grid backup (maximum 1MW/2.15MWh).

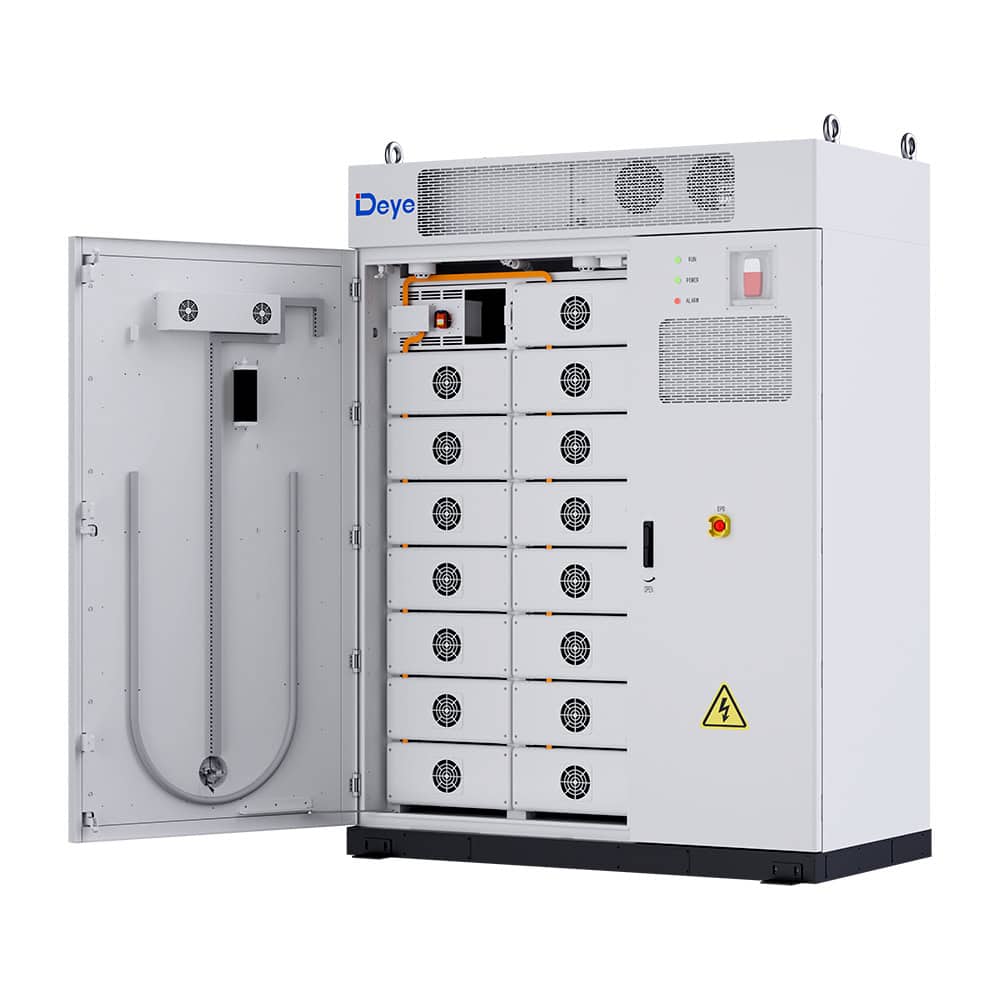

- Enhanced Safety: Built with safety as a priority, the system utilizes LFP batteries and features a sophisticated aerosol fire extinguishing system. The battery compartment is designed to be auto-venting and explosion-proof.
- Intelligent Control & Management:
- Advanced thermal management keeps the battery temperature below 35°C.
- Features include peak-valley management, anti-backflow, overload protection, load tracking, and demand control.
- Reliable & Durable Performance:
- Operates in a wide temperature range from -20°C to 50°C and at altitudes up to 3000 meters.
- Boasts an IP54 enclosure and a C5 anti-corrosion grade for resilience in various environments.
- Guaranteed for over 6000 cycles and comes with a 10-year warranty.
- Multi-Fusion Integration: The system integrates the Battery Management System (BMS) and Power Conversion System (PCS). It also supports the expansion of the MPPT module for optimized solar energy harvesting.
- High-Efficiency Converter: The converter specification highlights a maximum efficiency of 97.6%, ensuring minimal energy loss. It includes multiple communication options like CAN, RS485, and ETH for seamless integration and monitoring.
The MS-GS215-2H3 is a versatile and powerful energy storage system, ideal for businesses looking for a dependable and long-lasting solution to manage their energy needs effectively.
