SE-F12 (AS, AF, LATAM)
- High Energy Capacity: 11.8 kWh nominal energy for reliable storage
- Scalable Design: Supports up to 32 units in parallel, expanding storage to 18 MWh
- Advanced Lithium-Ion Technology: Safe and durable LiFePO4 battery chemistry
- Long Lifespan: Over 6,000 charge cycles at 80% Depth of Discharge
- Durable Housing: IP21 rating with wall-mounted or stack-mounted installation options
- Smart Monitoring: Bluetooth APP for real-time performance monitoring and system control
- Wide Temperature Range: Operates from -20°C to 55°C for various environments
- Compact and Lightweight: Dimensions of 400 × 583 × 232 mm and 78 kg weight
Description

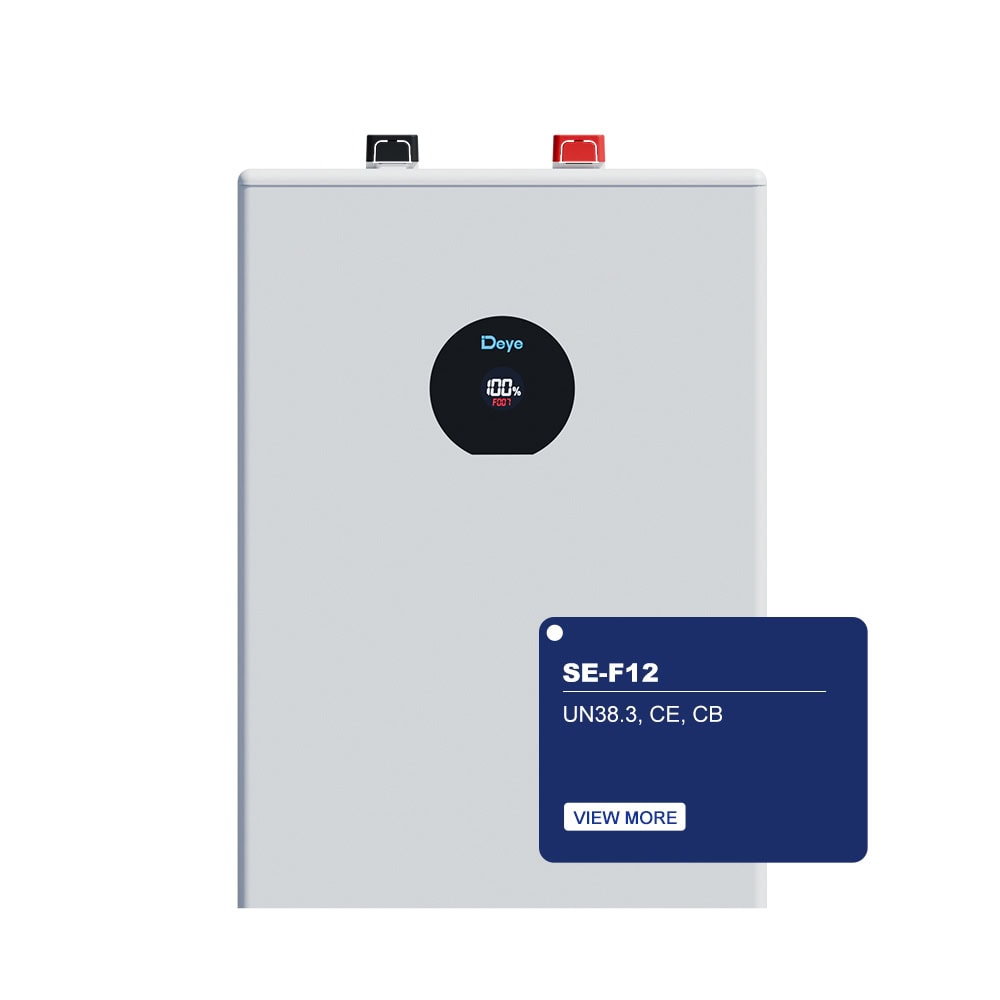

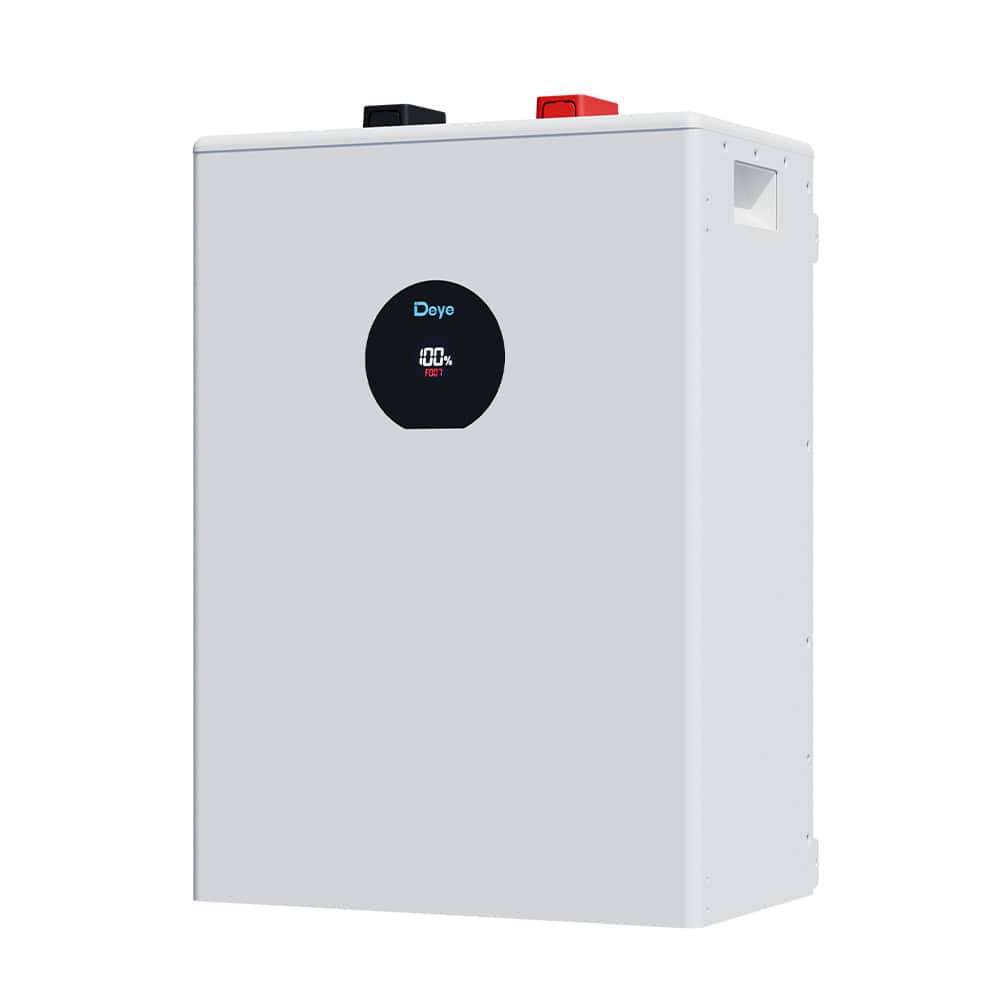

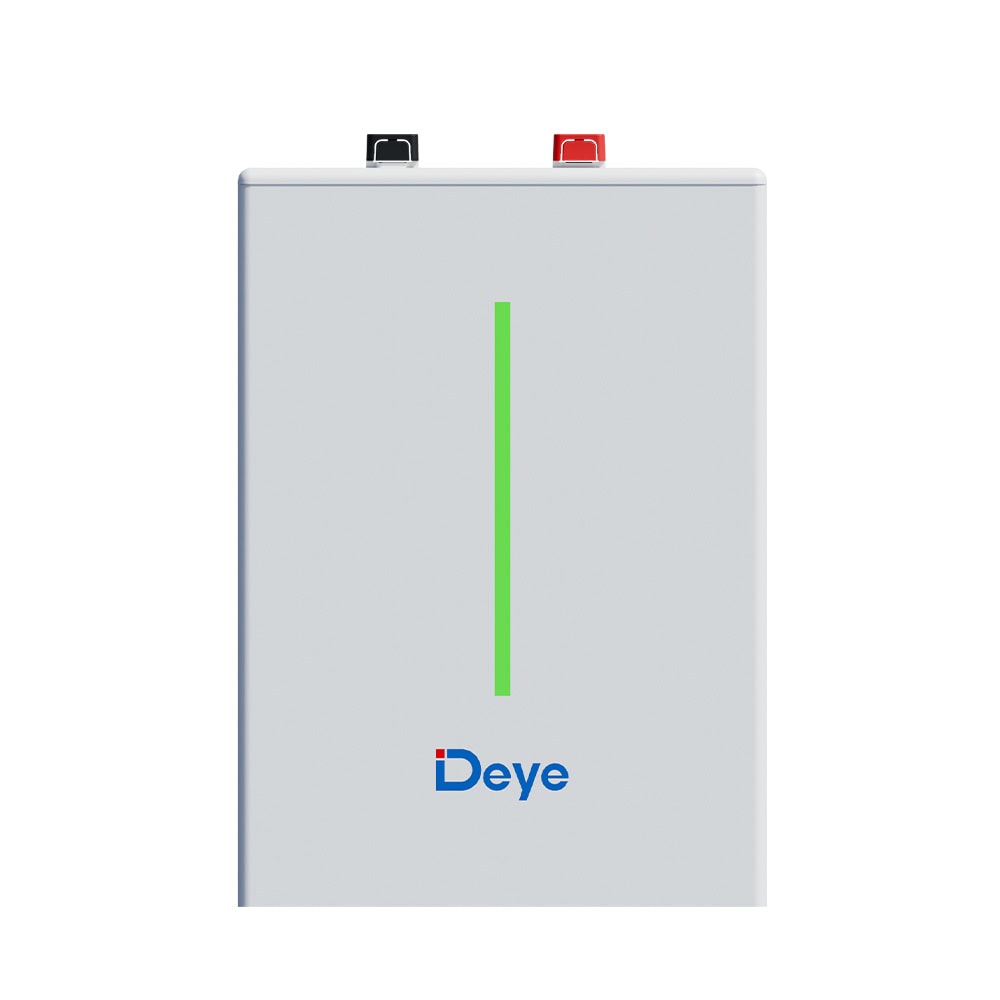

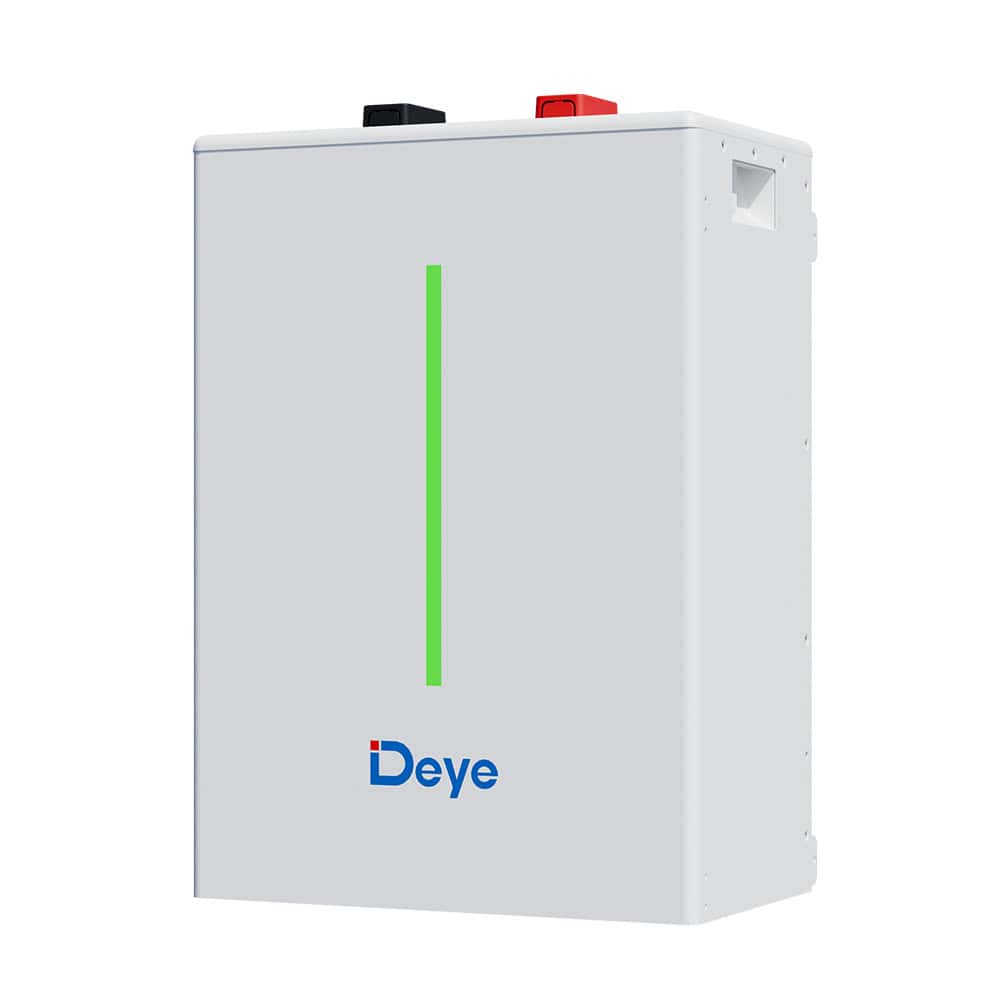

Deye SE-F12 High-Performance Energy Storage Battery
The Deye SE-F12 is a robust, scalable, and efficient energy storage solution designed to deliver optimal performance for off-grid and hybrid systems. With cutting-edge technology and a durable design, the SE-F12 is ideal for residential, commercial, or remote applications requiring dependable power storage.
| Category | Specification |
|---|---|
| Nominal Voltage | 51.2 V |
| Voltage Range | 44.8 V ~ 57.6 V |
| Nominal Energy | 11.8 kWh |
| Max Continuous Charge Current | 115 A |
| Max Continuous Discharge Current | 120 A |
| Peak Discharge Current (10s) | 150 A |
| Battery Chemistry | LiFePO4 |
| Cycle Life | ≥ 6,000 (80% DoD, 25°C) |
| Operating Temperature | Charge: 0-55°C / Discharge: -20-55°C |
| IP Rating | IP21 |
| Expandable Parallel Units | Up to 32 |
Key Features
- High Energy Capacity
The SE-F12 boasts a nominal energy capacity of 11.8 kWh, making it capable of storing significant power for a wide range of energy needs. - Exceptional Scalability
Supports up to 32 units in parallel, allowing expansion to an impressive maximum capacity of 18 MWh. It’s perfect for growing energy demands or larger systems needing dynamic scalability. - Advanced Lithium-Ion Technology
Built with LiFePO4 (Lithium Iron Phosphate) chemistry, providing superior safety, longevity, and thermal stability. - High Charge and Discharge Performance
- Continuous Operation: Max charge current of 115 A and max discharge current of 120 A.
- Peak Performance: Handles up to 150 A during discharge for 10 seconds, making it suitable for high-demand scenarios.
- Durable Design for Long Life
Rated for over 6,000 charge cycles (at 80% DoD) while maintaining 70% end-of-life capacity—ensuring years of reliable operation. - Compact and Sturdy Construction
With its wall-mounted or stack-mounted installation options, the SE-F12 is both adaptable and space-efficient.
Dimensions: 400 × 583 × 232 mm. Weight: 78 kg. - Remote Monitoring and Intelligent Control
Features include Bluetooth APP monitoring, allowing real-time tracking of system performance and battery health. It integrates smoothly with inverters via CAN2.0 and RS485 communication protocols, streamlining system management.
Smart Energy Management Integration
The SE-F12 is fully compatible with the Deye Smart Energy Management System, offering:
- Real-time Monitoring
- Seamless System Expansion
- Remote, AI-based maintenance capabilities to ensure peak performance
Applications
- Backup power for homes and businesses
- Renewable energy storage in solar PV systems
- Off-grid energy storage requiring high capacity and reliability
- Hybrid systems leveraging grid power and renewable energy
