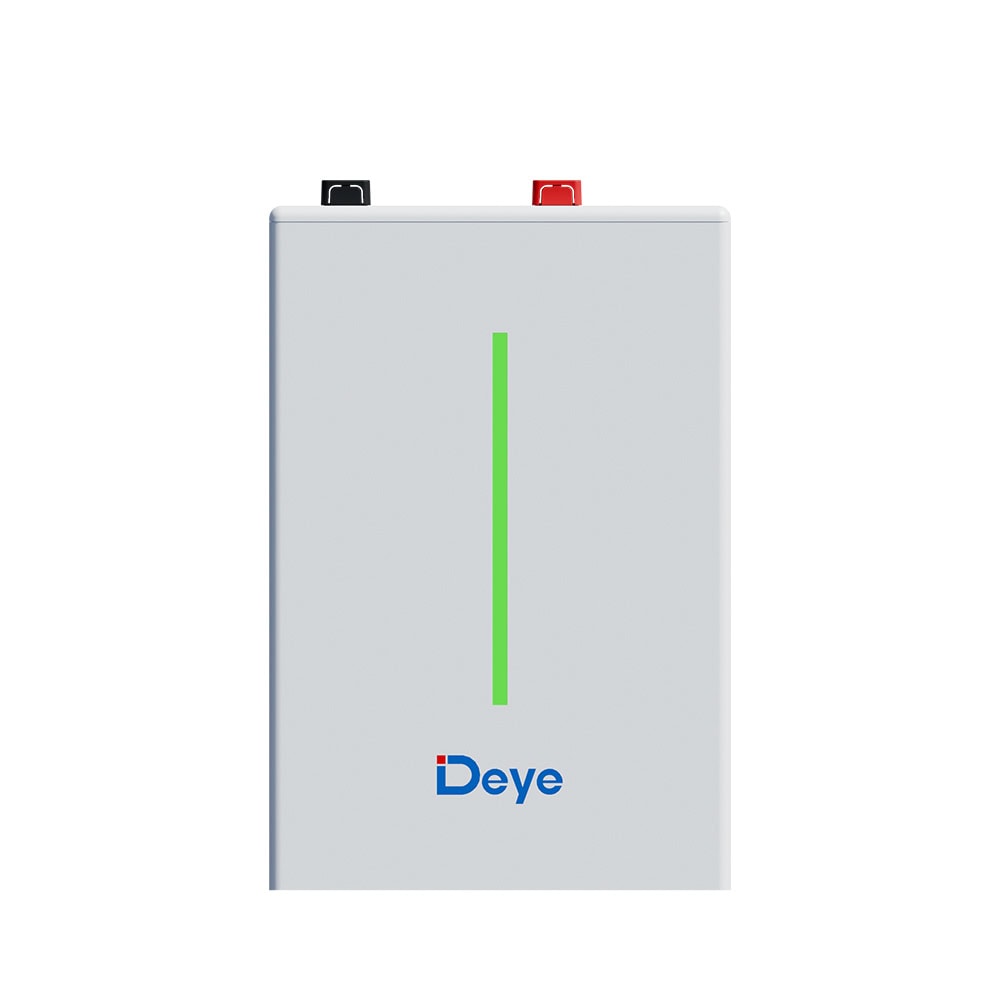

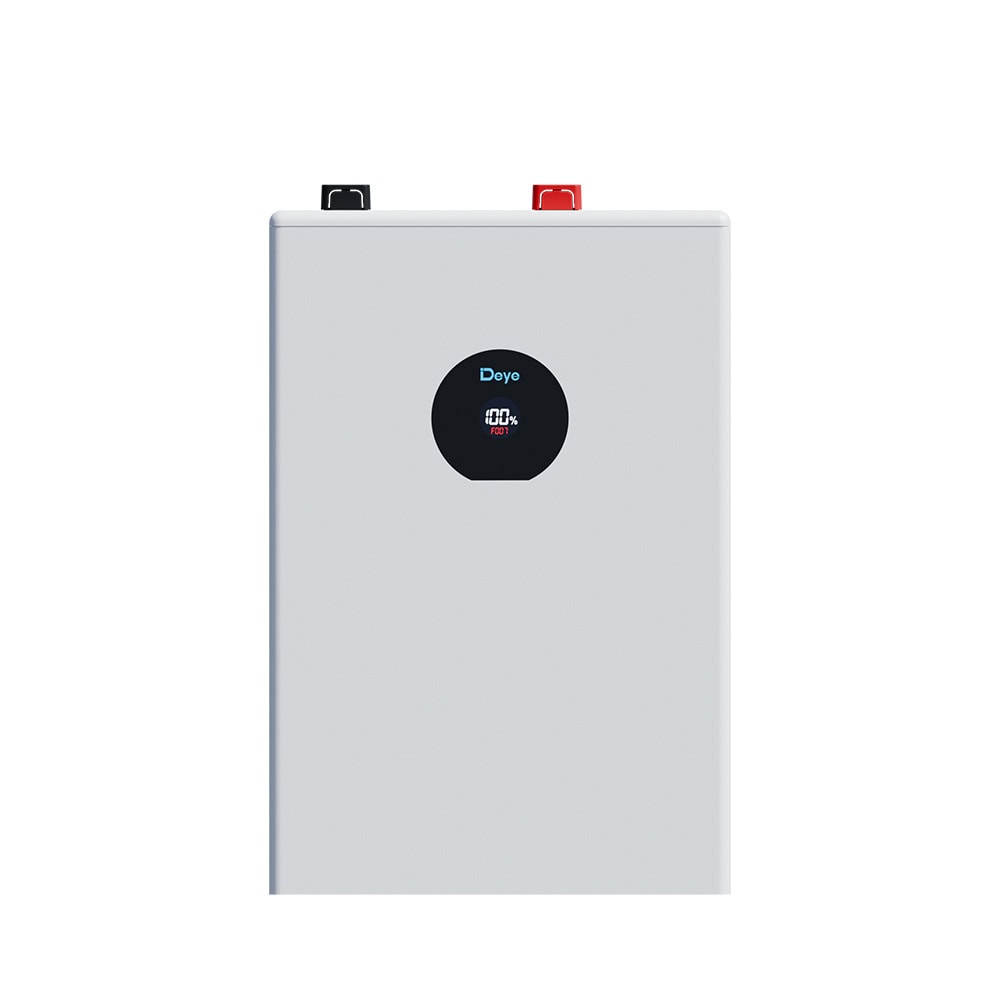

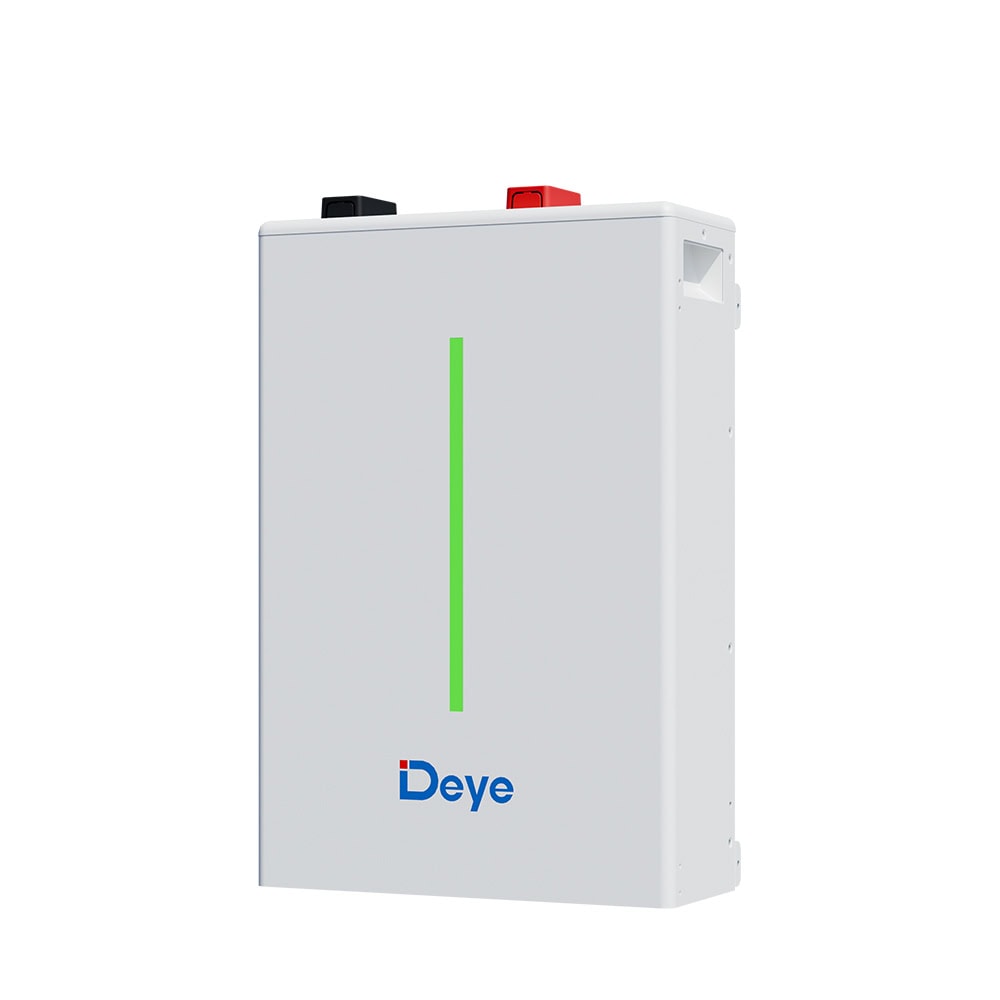

Deye SE-F5 (AS, AF, EU, LATAM) – High-Performance Solar Power Battery

  • 5.12 kWh Nominal Energy: Ideal for residential and small commercial energy storage
  • Expandable Capacity: Scalable to 32 units in parallel, reaching up to 8 MWh
  • High Performance: Supports 175A peak current (10 sec) and 115A continuous
  • Long Lifespan: Over 6,000 cycles at 80% Depth of Discharge (DoD)
  • Smart Integration: RS485, CAN, and Bluetooth for seamless monitoring via the Deye App

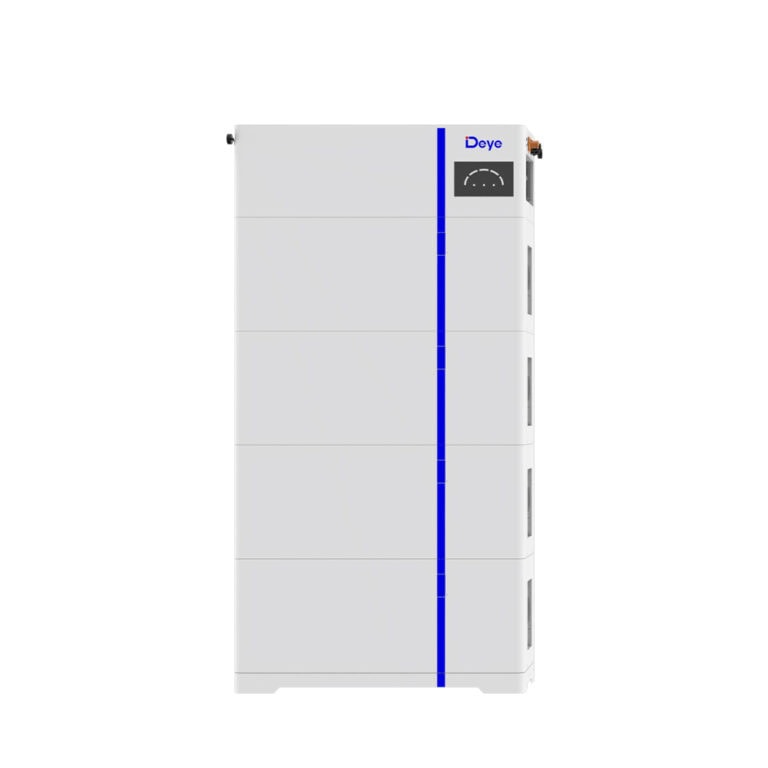

  • Compact & Flexible Design: Wall or stack-mounted installation with IP21 protection
  • Reliable in Extreme Conditions: Operates between -20°C to 55°C (discharge)
  • Durable Lithium-Ion (LiFePO4): Ensures safety and consistent performance
SKU: SE-F5 (AS, AF, EU, LATAM)Category:Low Voltage Series (LV)
Contact Us

Description

SE-F5: Reliable & Efficient ESS Choice

SE-F5 is a top-notch Energy Storage System (ESS) that delivers outstanding performance and dependability.

Parameters Details
Battery Chemistry LiFePO₄
Capacity 100 Ah
Scalability Max 32 pcs in parallel
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Nominal Energy 5.12 kWh
Charge Current – Max Continuous 100 A
Charge Current – Peak 120 A (10 sec)
Discharge Current – Max Continuous 120 A
Discharge Current – Peak 150 A (10 sec)
Recommended Depth of Discharge 80% DoD
Dimension (W × H × D) (Without hanging board) 370 × 548 × 140 mm
Weight Approximate 41 kg
LED Indicator LED (SOC, working, protecting) & Buzzer
IP Rating of Enclosure IP21
Operating Temperature Charge: 0 – 55℃ / Discharge: -20 – 55℃
Storage Temperature 0 – 35℃
Relative Humidity 95% (non-condensing)
Altitude ≤3000m
Cycle Life ≥6000 (25℃±2℃, 70% EOL)
Installation Wall-Mounted, Floor-Mounted, Stack-Mounted
Communication CAN2.0, RS485, Bluetooth+APP
Warranty Period 5 years
Energy Throughput 8 MWh
Certification UN38.3, MSDS, CE, CB

Key Features

  • Comprehensive Protection: Features an advanced Battery Management System (BMS) with an active fuse, effectively preventing overcharging, over-discharging, and short circuits for safe operation.
  • Superior Performance: Supports a maximum 1C charge and 1.2C discharge, ensuring efficient energy transfer. Utilizes GaN MOSFETs, reducing energy loss by 50% and offering high-temperature resistance for stable performance in various conditions.
  • Optimized Energy Density: The integrated PACK design minimizes line loss, enhancing energy density to boost storage efficiency.
  • Flexible Expansion: Allows parallel connection of up to 32 units, enabling you to expand energy storage capacity as needed.
  • Easy Maintenance: Provides auto-networking, local battery monitoring, and remote ESS monitoring, simplifying maintenance tasks.
  • Reliable Durability: Operates reliably within a temperature range of -20℃ to 55℃ with natural cooling, ensuring longevity in diverse climates.
With a nominal energy of 5.12 kWh and a 5-year warranty, SE-F5 is a trustworthy option for your energy storage needs.
