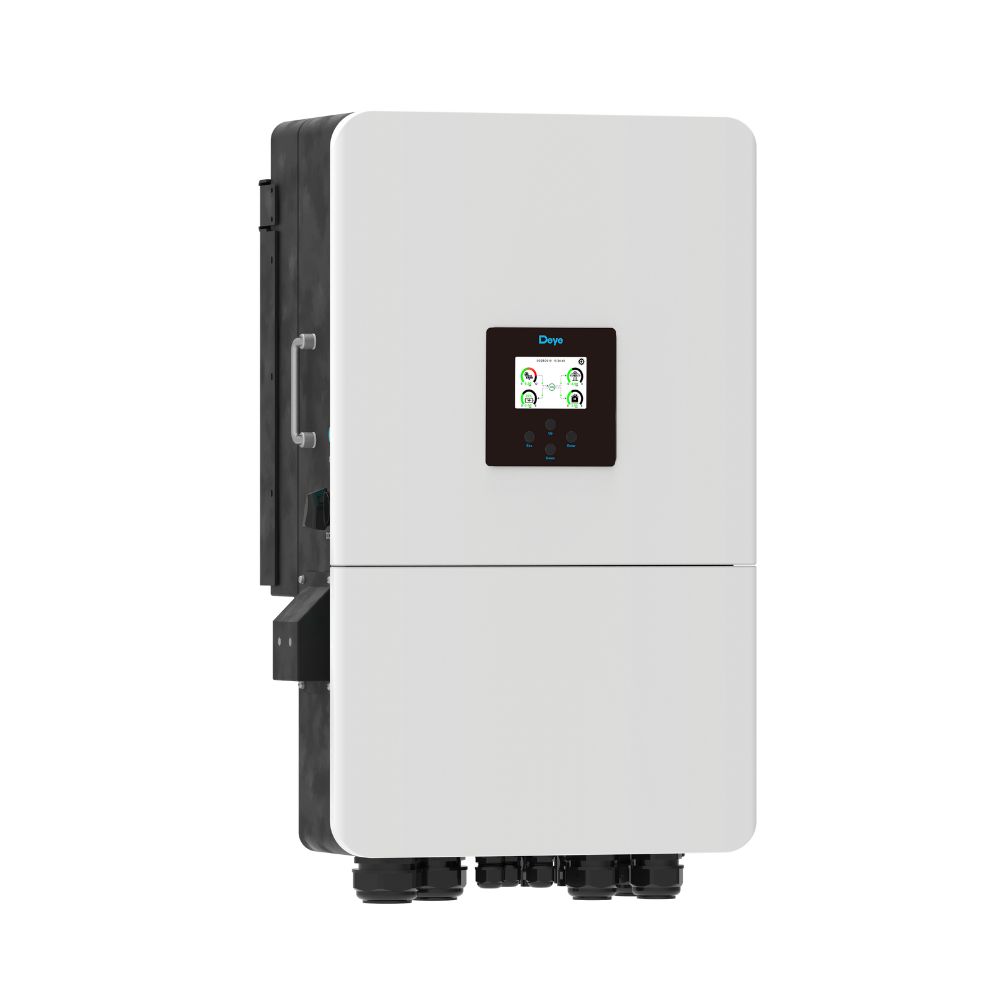

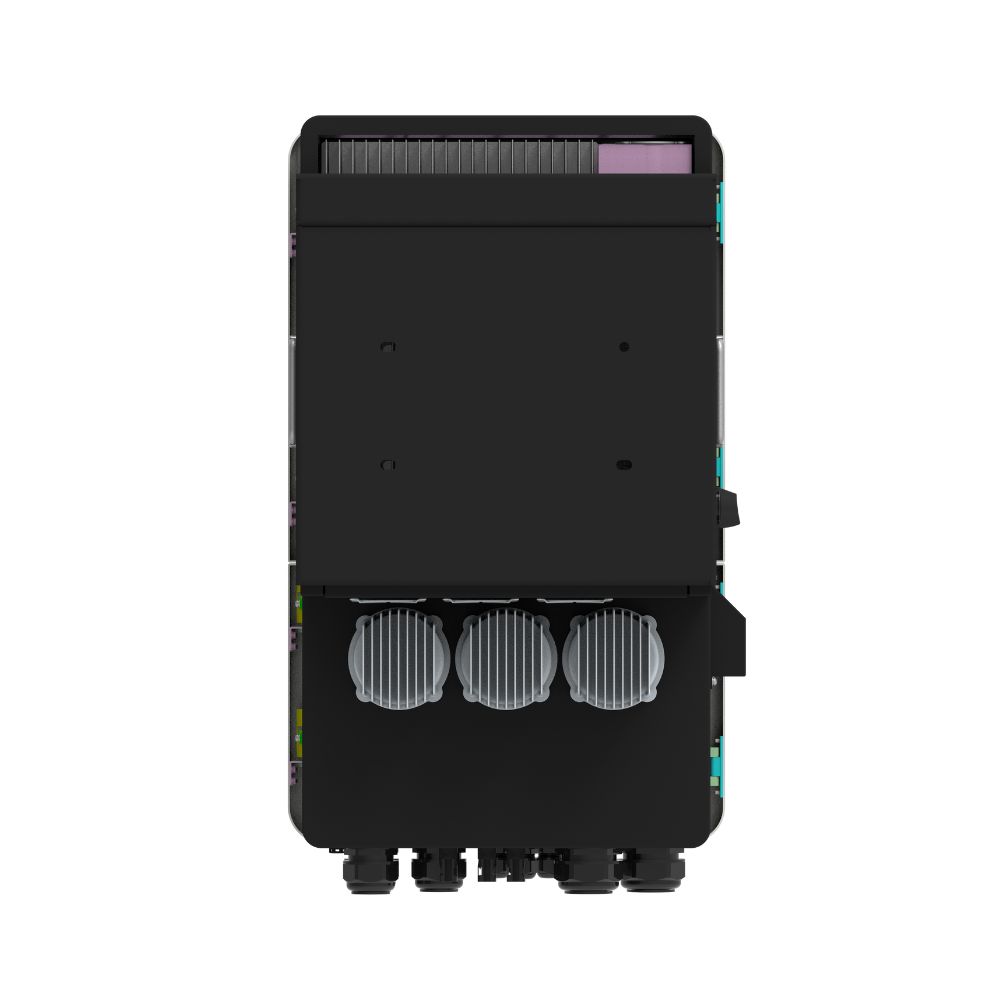

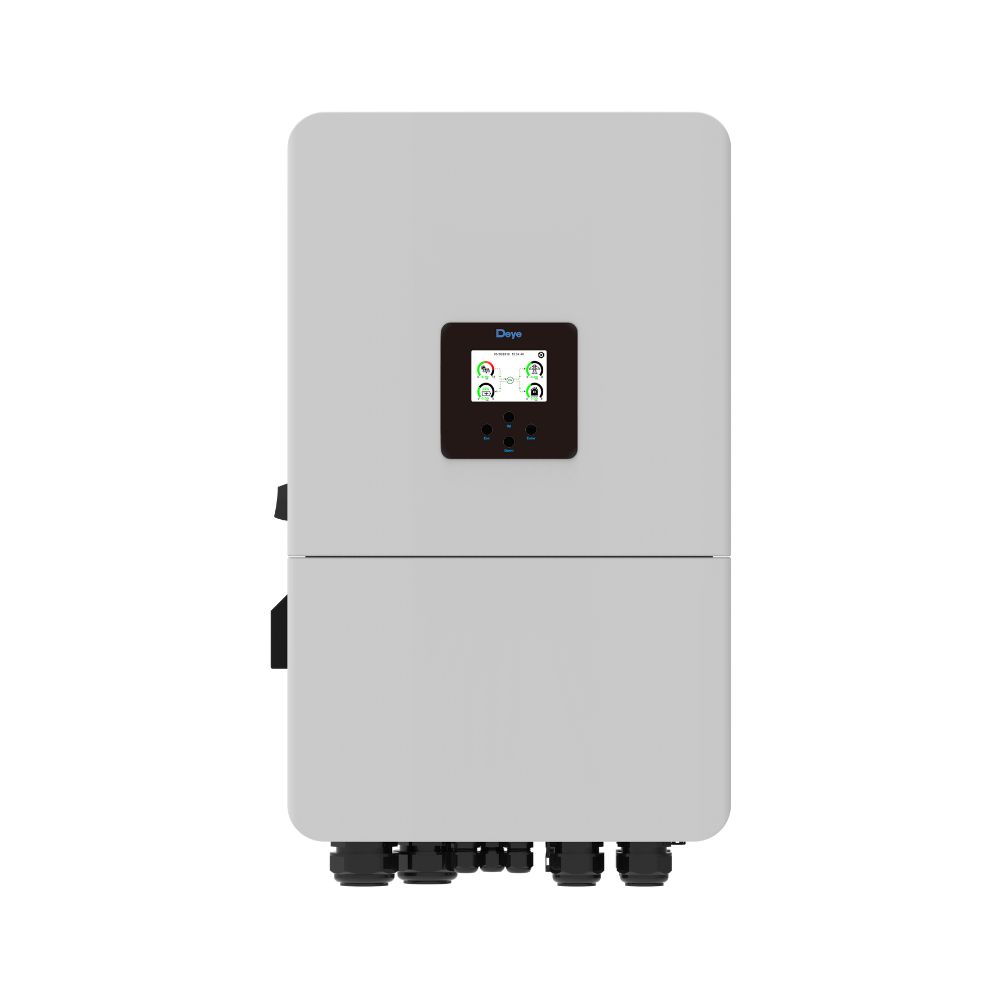

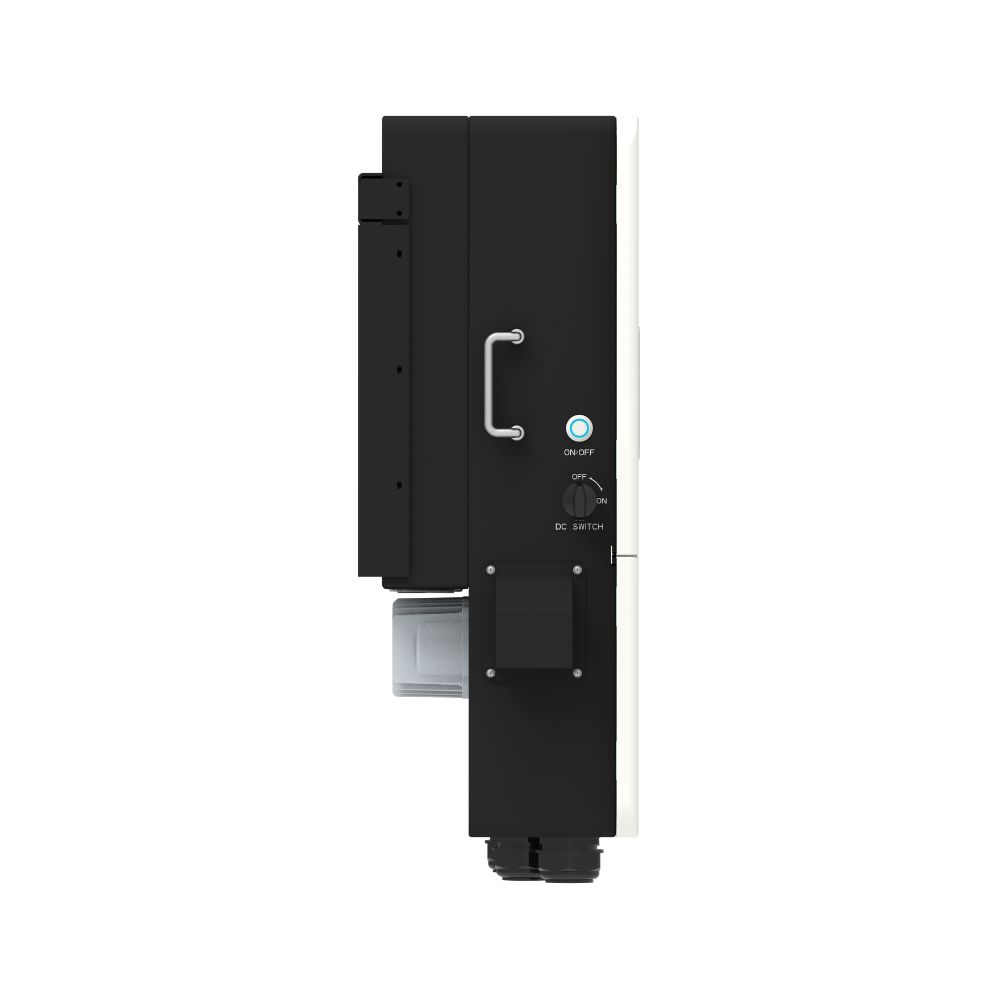

SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter

  • Battery Compatibility: Supports lead-acid or lithium-ion batteries (40-60V, 2 inputs), with max charging/discharging currents up to 350A and adaptive Li-ion charging via BMS
  • PV Input Capacity: Handles max PV access power up to 40,000W, with 2 MPPT trackers (2 strings each) and a 160-650V MPPT voltage range
  • AC Performance: Rated active power from 14,000W to 20,000W, supports 3L+N+PE grid connection, with THDi <3% and DC injection <0.5% In
  • Efficiency & Protection: Boasts max efficiency 97.6%, Euro efficiency 97.0%, and integrated protections (DC reverse polarity, AC overcurrent/voltage, etc.)
  • General Features: Operates in -40~+60°C, IP65 rated, with communication options (RS485/ WIFI/4G etc.) and 5-10 year warranty
SKU: SUN-14/15/16/18/20K-SG05LP3-EU-SM2Category:Hybrid Inverter, Inverter
Contact Us

Description

SUN-5/6/8/10/12K-SG04LP3-EU Three Phase Hybrid Inverter
  • 100% unbalanced output, max. output up to 50% rated power for each phase
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 350A
  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
Model SUN-14K-SG05LP3-EU-SM2 SUN-15K-SG05LP3-EU-SM2 SUN-16K-SG05LP3-EU-SM2 SUN-18K-SG05LP3-EU-SM2 SUN-20K-SG05LP3-EU-SM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 260 280 300 330 350
Max. Discharging Current (A) 260 280 300 330 350
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 2
PV String Input Data
Max. PV Access Power (W) 28000 30000 32000 36000 40000
Max. PV Input Power (W) 22400 24000 25600 28800 32000
Max. PV Input Voltage (V) 800
Start-up Voltage (V) 160
MPPT Voltage Range (V) 160-650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 36+36
Max. Input Short-Circuit Current (A) 54+54
No. of MPP Trackers/
No. of Strings/MPP Tracker		 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W) 14000 15000 16000 18000 20000
Max. AC Input/Output Apparent Power (VA) 15400 16500 17600 19800 22000
Rated AC Input/Output Current (A) 21.3/20.3 22.8/21.8 24.3/23.2 27.3/26.1 30.4/29
Max. AC Input/Output Current (A) 23.4/22.4 25/24 26.7/25.6 30/28.7 33.4/31.9
Max. Continuous AC Pass-through (grid to load) (A) 70
Peak Power (off-grid) (W) 2 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
