SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2

  • Battery Compatibility: Supports lead-acid or lithium-ion batteries (40-60V), with adaptive charging strategy for Li-ion via BMS. Max charging/discharging current ranges from 70A to 240A across models
  • PV Input Flexibility: Accepts PV access power up to 24,000W, with input voltage up to 800V and MPPT voltage range 160-650V. Features 2/1+1 or 2/2+2 MPPT trackers/strings configuration
  • AC Performance: Rated AC power from 3,000W to 12,000W, with peak off-grid power (2x rated, 10s). Supports grid voltages (220/380V, 230/400V) and frequencies (50/60Hz), with <3% THDi and DC injection <0.5%
  • Efficiency & Protection: Boasts max efficiency 97.6%, Euro efficiency 97.0%, and MPPT efficiency >99%. Integrated protections include DC reverse polarity, AC overcurrent/overvoltage, thermal, and optional arc fault detection
SKU: SUN-(3-12)K-SG05LP3-EU-SM2Category:Hybrid Inverter, Inverter
Contact Us

Description

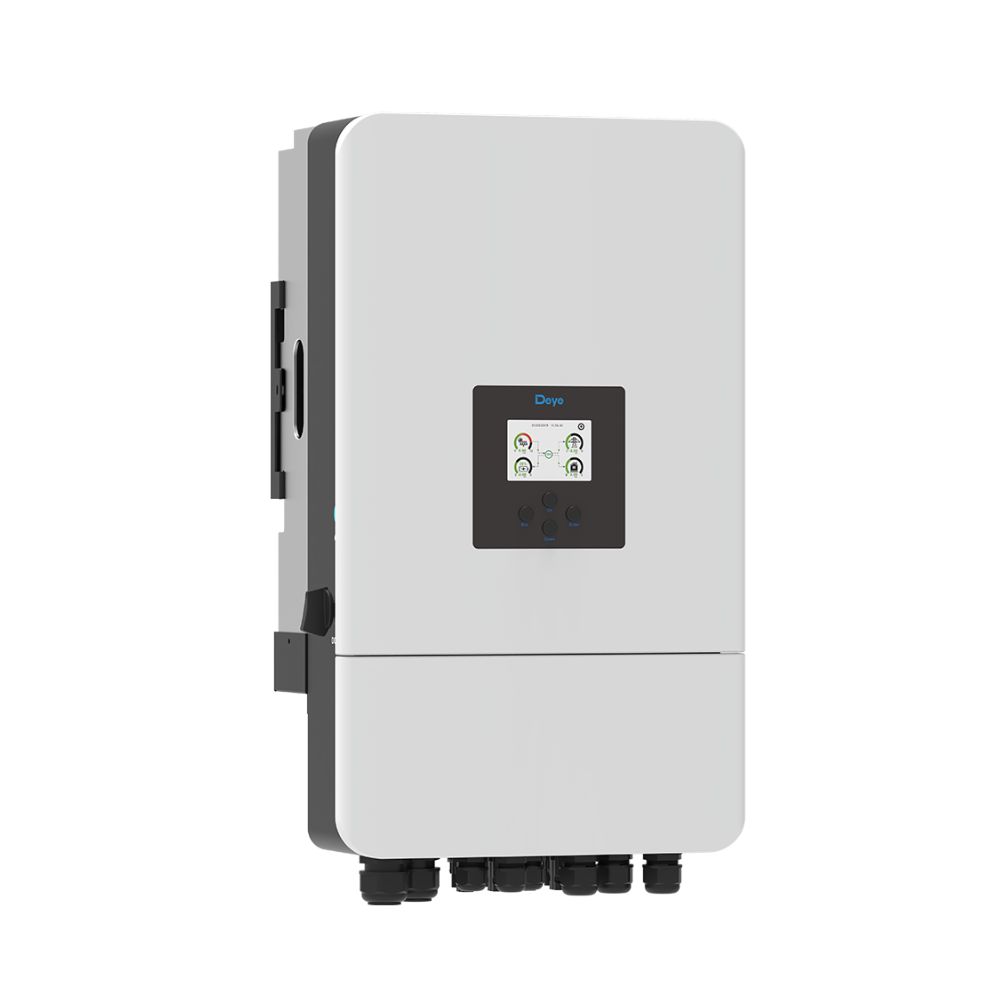

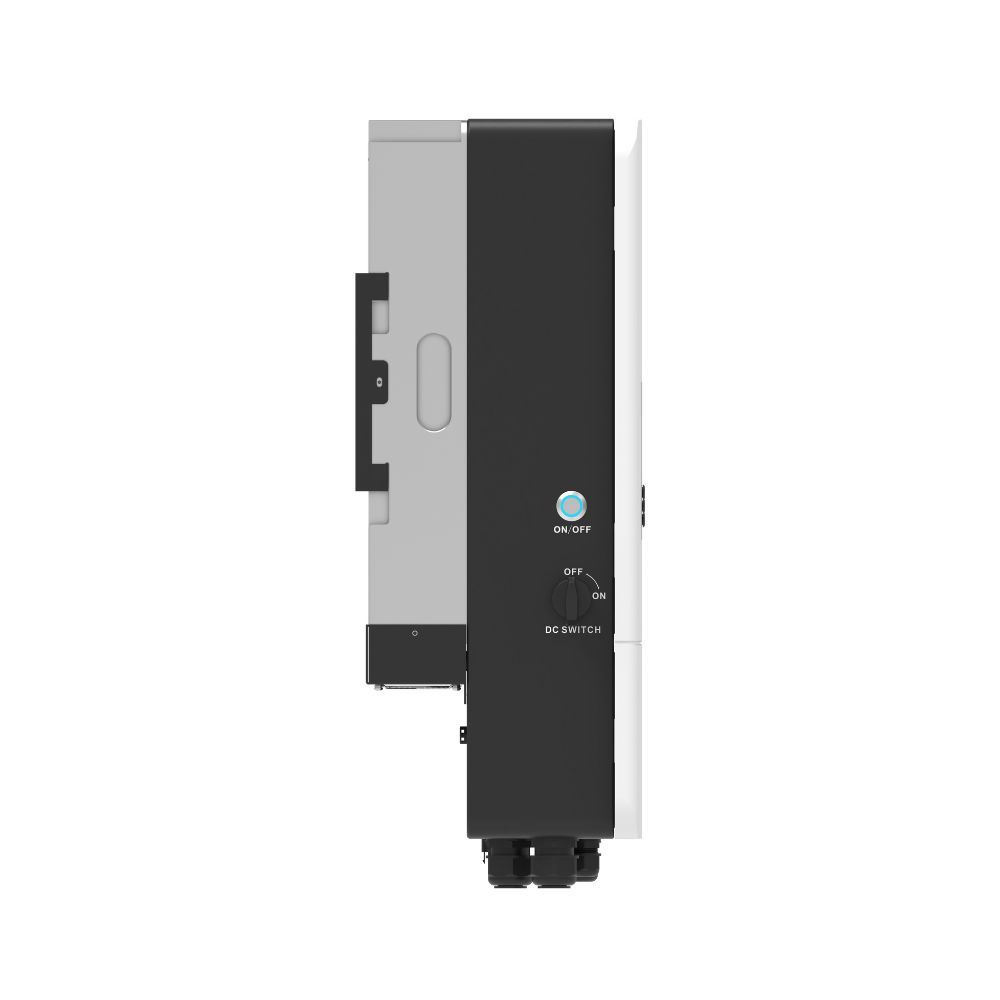

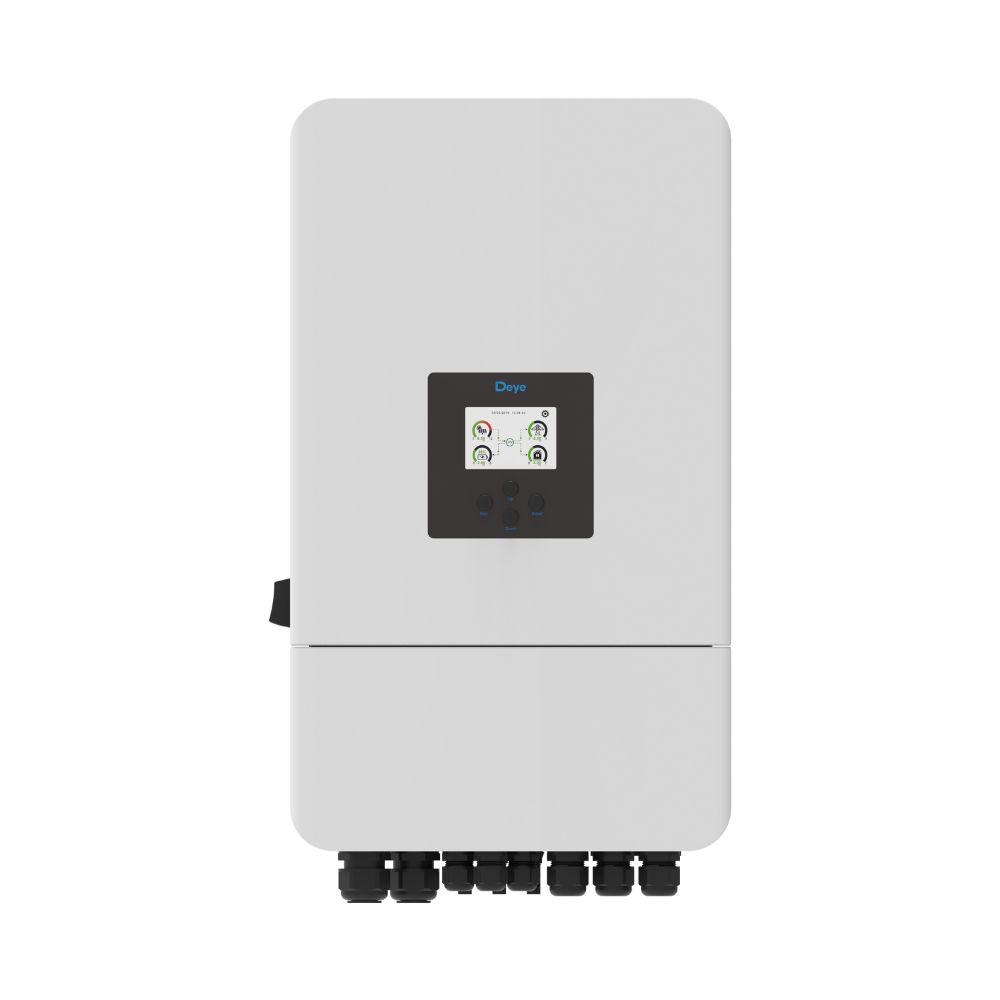

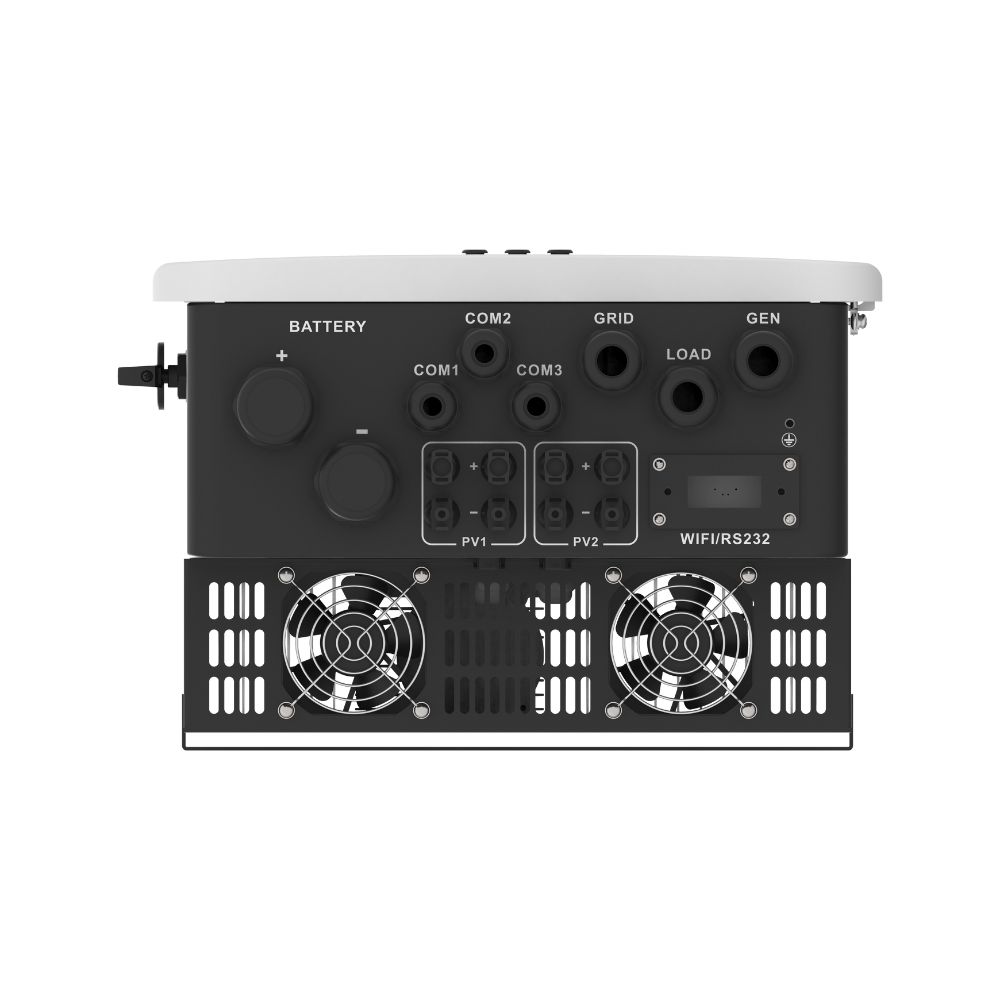

SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter
  • 100% unbalanced output, max. output up to 50% rated power for each phase
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 240A
  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
Model SUN-3K-SG05 LP3-EU-SM2 SUN-4K-SG05 LP3-EU-SM2 SUN-5K-SG05 LP3-EU-SM2 SUN-6K-SG05 LP3-EU-SM2 SUN-8K-SG05 LP3-EU-SM2 SUN-10K-SG05 LP3-EU-SM2 SUN-12K-SG05 LP3-EU-SM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 70 95 120 135 190 210 240
Max. Discharging Current (A) 70 95 120 135 190 210 240
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 6000 8000 10000 12000 16000 20000 24000
Max. PV Input Power (W) 4800 6400 8000 9600 12800 16000 19200
Max. PV Input Voltage (V) 800
Start-up Voltage (V) 160
MPPT Voltage Range (V) 160 – 650
Rated PV Input Voltage (V) 550
Max. Operating PV Input Current (A) 20+20 26+26
Max. Input Short-Circuit Current (A) 30+30 39+39
No. of MPPT Trackers/ No. of Strings/MPP Tracker 2/1+1 2/2+2
AC Input/Output Data
Rated AC Input/Output Power (W) 3000 4000 5000 6000 8000 10000 12000
Max. AC Input/Output Apparent Power (VA) 3300 4400 5500 6600 8800 11000 13200
Rated AC Input/Output Current (A) 4.6/4.4 6.1/5.8 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4
Max. AC Input/Output Current (A) 5/4.8 6.7/6.4 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2
Max Continuous AC Passthrough (grid to load) (A) 45
Peak Power (off-grid) (W) 2 times of rated power, 10s
Power Factor Adjustment Range 0.2 leading to 0.8 lagging
Rated Input/Output Grid Voltage/Range (V) 220/380V, 230/400V, 0.85Un-1.1Un
Rated Input/Output Voltage/Frequency/Range(Hz) 50±5, 60±5, 40/55-65
Grid Connection Form 3L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5%
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short-Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE III(AC)

Download

Deye SUN-(3-12)K-SG05LP3-EU-SM2 Data Sheet
