Description

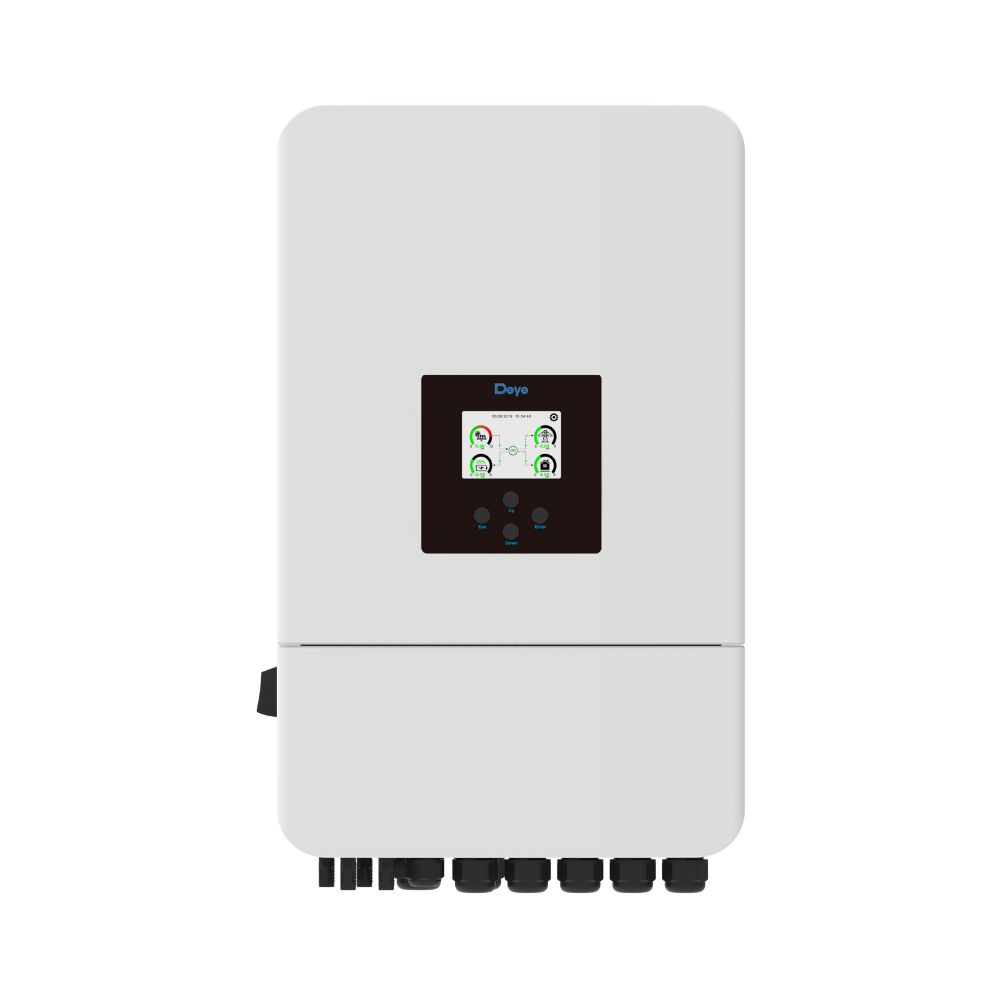

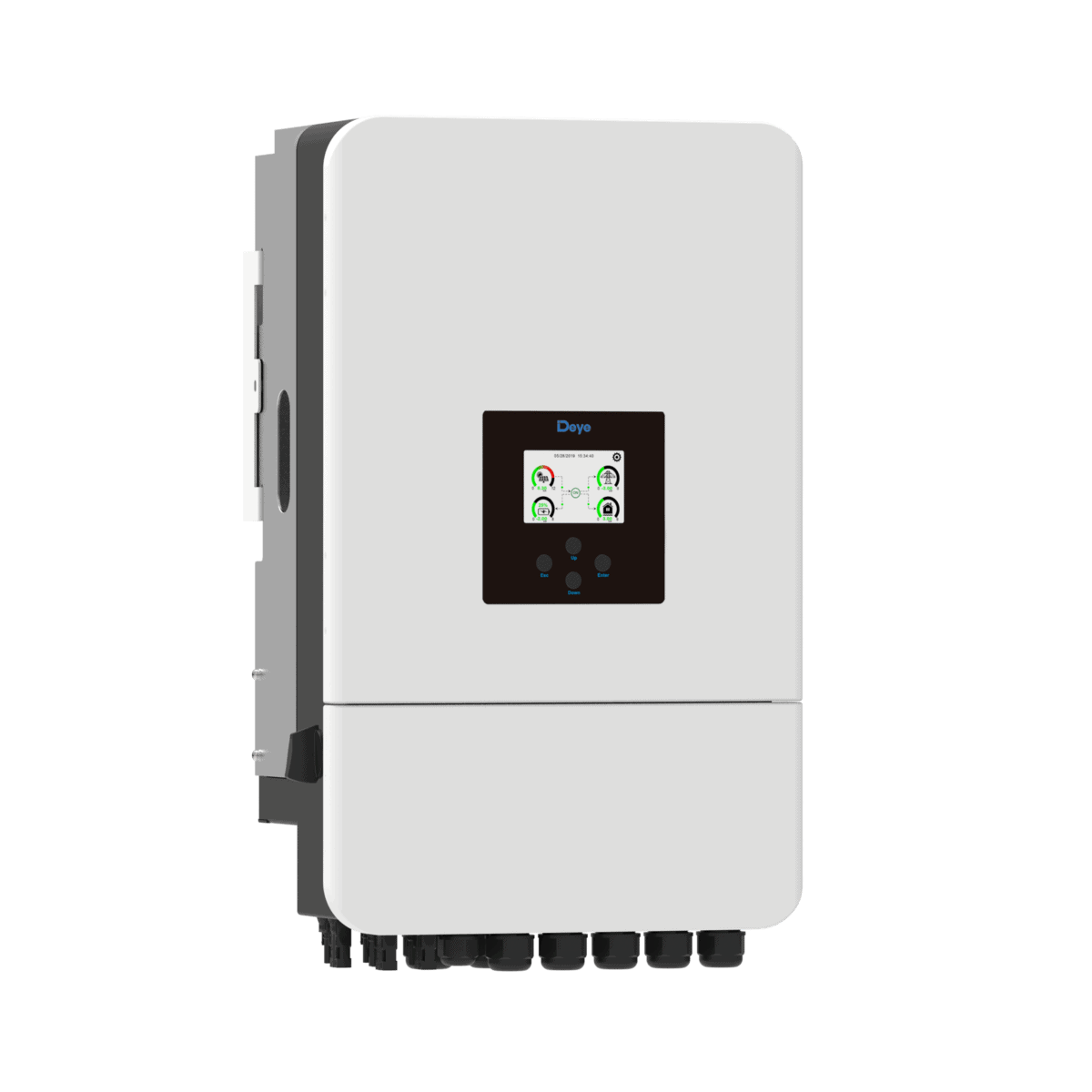

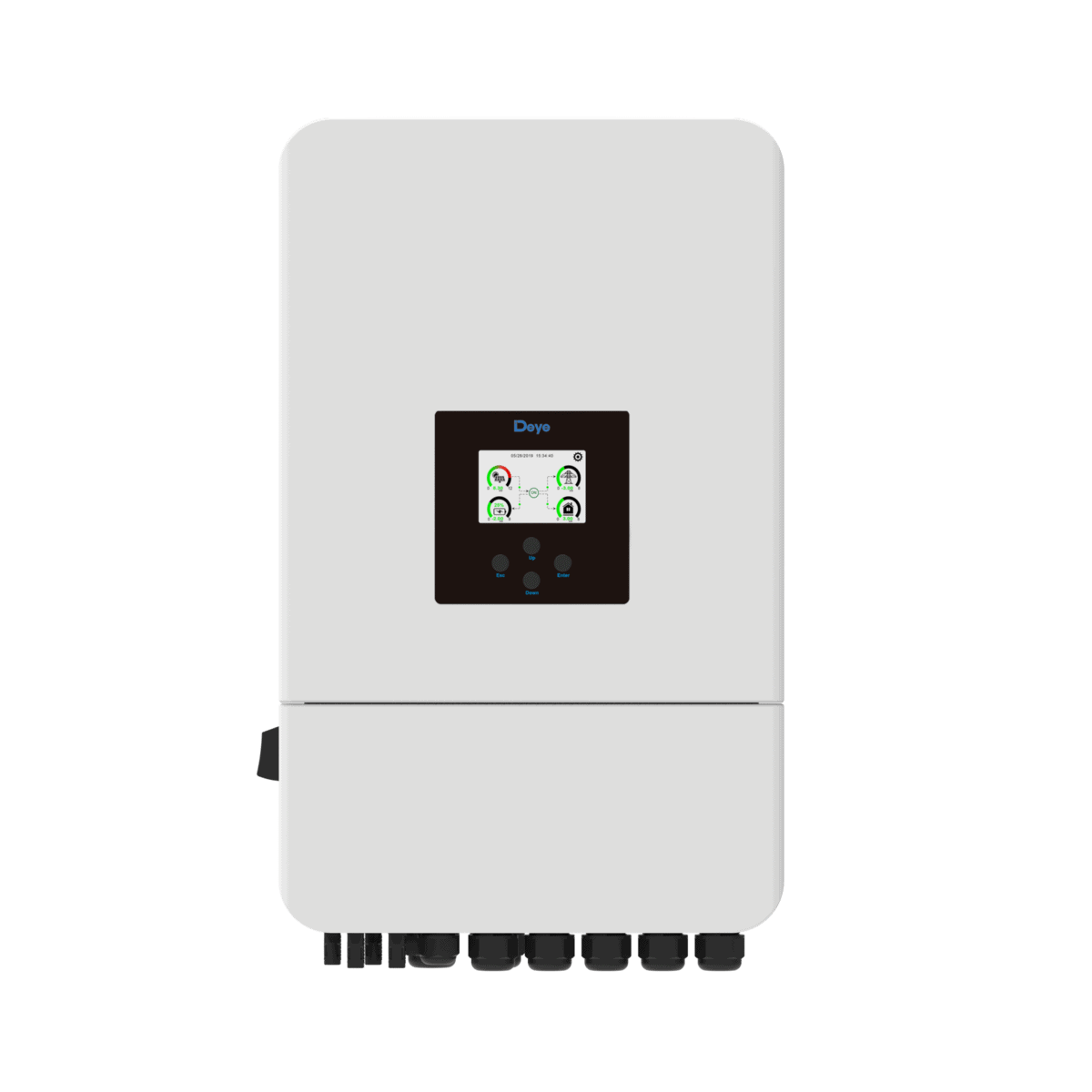

SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P Single Phase Hybrid Inverter |
|||||||
|---|---|---|---|---|---|---|---|
|
|
|
Model
|
SUN-3.6K-SG05 LP1-EU-SM2-P
|
SUN-5K-SG05 LP1-EU-SM2-P
|
SUN-6K-SG05 LP1-EU-SM2-P
|
SUN-7K-SG05 LP1-EU-SM2-P
|
SUN-7.6K-SG05 LP1-EU-SM2-P
|
SUN-8K-SG05 LP1-EU-SM2-P
|
SUN-10K-SG05 LP1-EU-SM2-P
|
|---|---|---|---|---|---|---|---|
|
Battery Input Data
|
|||||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
||||||
|
Battery Voltage Range (V)
|
40-60
|
||||||
|
Max. Charging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
210
|
|
Max. Discharging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
210
|
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
||||||
|
Number of Battery Input
|
1
|
||||||
|
PV String Input Data
|
|||||||
|
Max. PV Access Power (W)
|
7200
|
10000
|
12000
|
14000
|
15200
|
16000
|
20000
|
|
Max. PV Input Power (W)
|
5760
|
8000
|
9600
|
11200
|
12160
|
12800
|
16000
|
|
Max. PV Input Voltage (V)
|
500
|
||||||
|
Start-up Voltage (V)
|
125
|
||||||
|
MPPT Voltage Range (V)
|
150-425
|
||||||
|
Rated PV Input Voltage (V)
|
370
|
||||||
|
Max. Operating PV Input Current (A)
|
18+18
|
32+32
|
|||||
|
Max. Input Short-Circuit Current (A)
|
27+27
|
48+48
|
|||||
|
No. of MPP Trackers/No. of Strings MPP Tracker
|
2/1+1
|
2/2+2
|
|||||
|
AC Input/Output Data
|
|||||||
|
Rated AC Input/Output Active Power (W)
|
3600
|
5000
|
6000
|
7000
|
7600
|
8000
|
10000
|
|
Max. AC Input/Output Apparent Power (VA)
|
3960
|
5500
|
6600
|
7700
|
8360
|
8800
|
11000
|
|
Rated AC Input/Output Current (A)
|
16.4/15.7
|
22.8/21.8
|
27.3/26.1
|
31.9/30.5
|
34.6/33.1
|
36.4/34.8
|
45.5/43.5
|
|
Max. AC Input/Output Current (A)
|
18/17.3
|
25/24
|
30/28.7
|
35/33.5
|
38/36.4
|
40/38.3
|
50/47.9
|
|
Max. Continuous AC Passthrough (grid to load) (A)
|
35
|
40
|
50
|
||||
|
Peak Power (off-grid) (W)
|
2 times of rated power, 10s
|
||||||
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging
|
||||||
|
Rated Input/Output Voltage/Range (V)
|
220/230 0.85Un-1.1Un
|
||||||
|
Rated Input/Output Grid Frequency/Range(Hz)
|
50/45-55, 60/55-65
|
||||||
|
Grid Connection Form
|
L+N+PE
|
||||||
|
Total Current Harmonic Distortion THDI
|
<3% (of nominal power)
|
||||||
|
DC Injection Current
|
<0.5% In
|
||||||
|
Efficiency
|
|||||||
|
Max. Efficiency
|
97.6%
|
||||||
|
Euro Efficiency
|
96.5%
|
||||||
|
MPPT Efficiency
|
>99%
|
||||||
