SUN-5/6/7.6/8K-SG02LP2-US-AM2
Battery Compatibility : Supports Lead-acid or Lithium-ion batteries, with a voltage range of 40-60V. Offers max charging/discharging currents up to 250A (depending on model) and self-adaptive BMS charging for Li-ionPV Input Capacity : Handles max PV input power up to 18,000W, with a max voltage of 500V and MPPT range of 150-425V. Features multiple MPP trackers (up to 3) and string configurationsAC Performance : Provides rated active/apparent power up to 12,000W/VA, with max AC currents up to 50A. Supports peak off-grid power (2x rated for 10s), flexible power factor adjustment, and low harmonic distortion (<3%)
Description

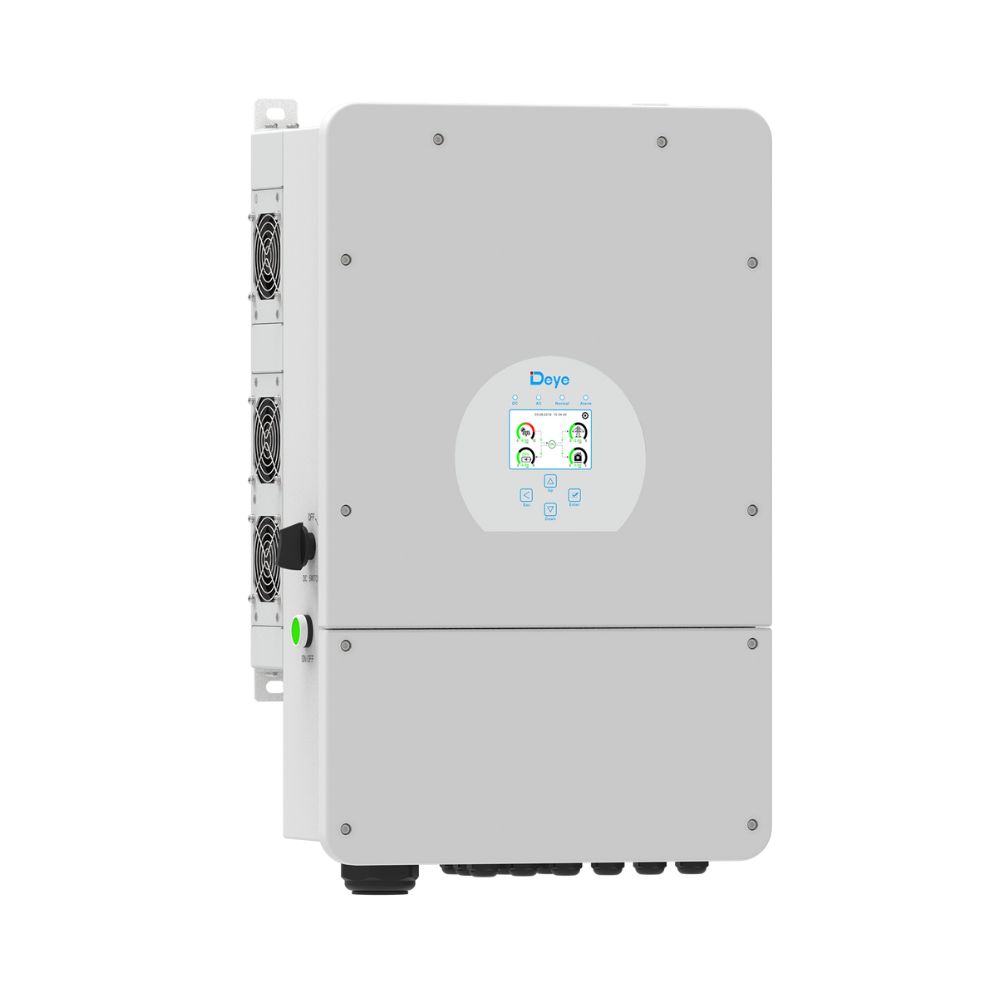

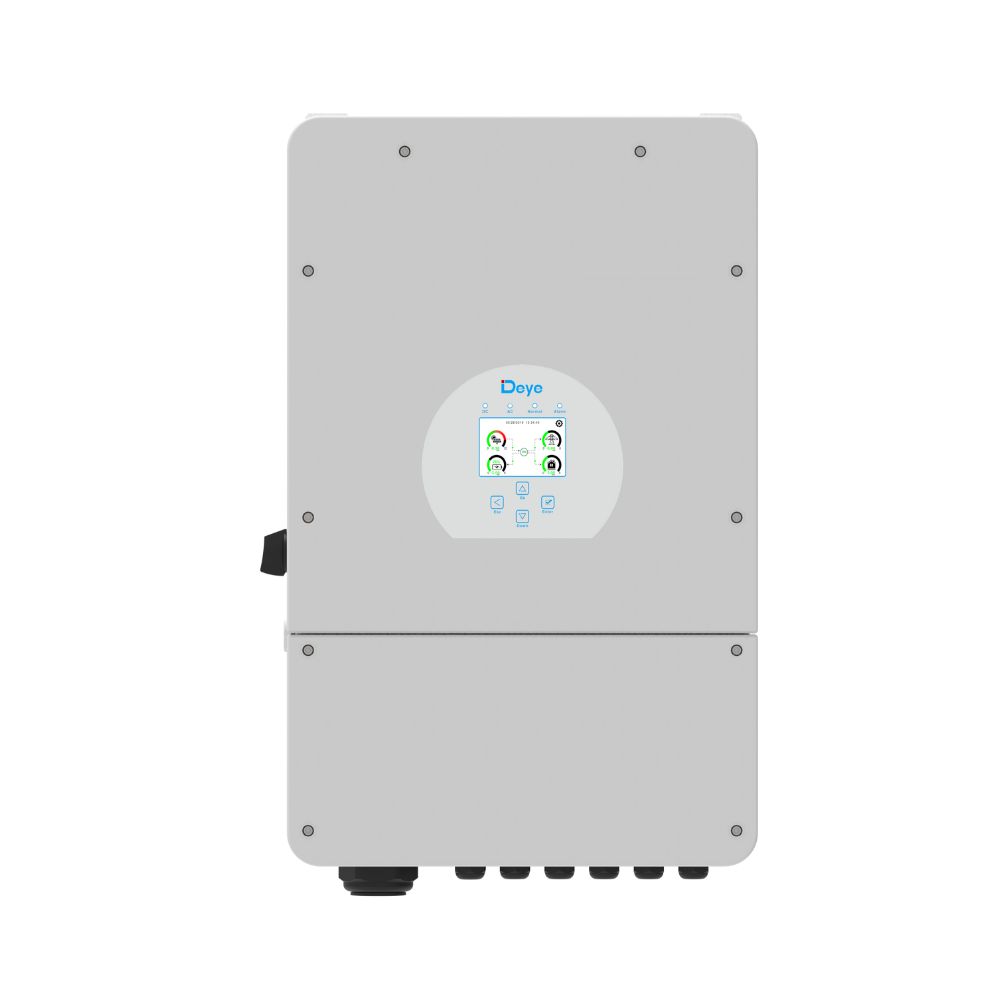

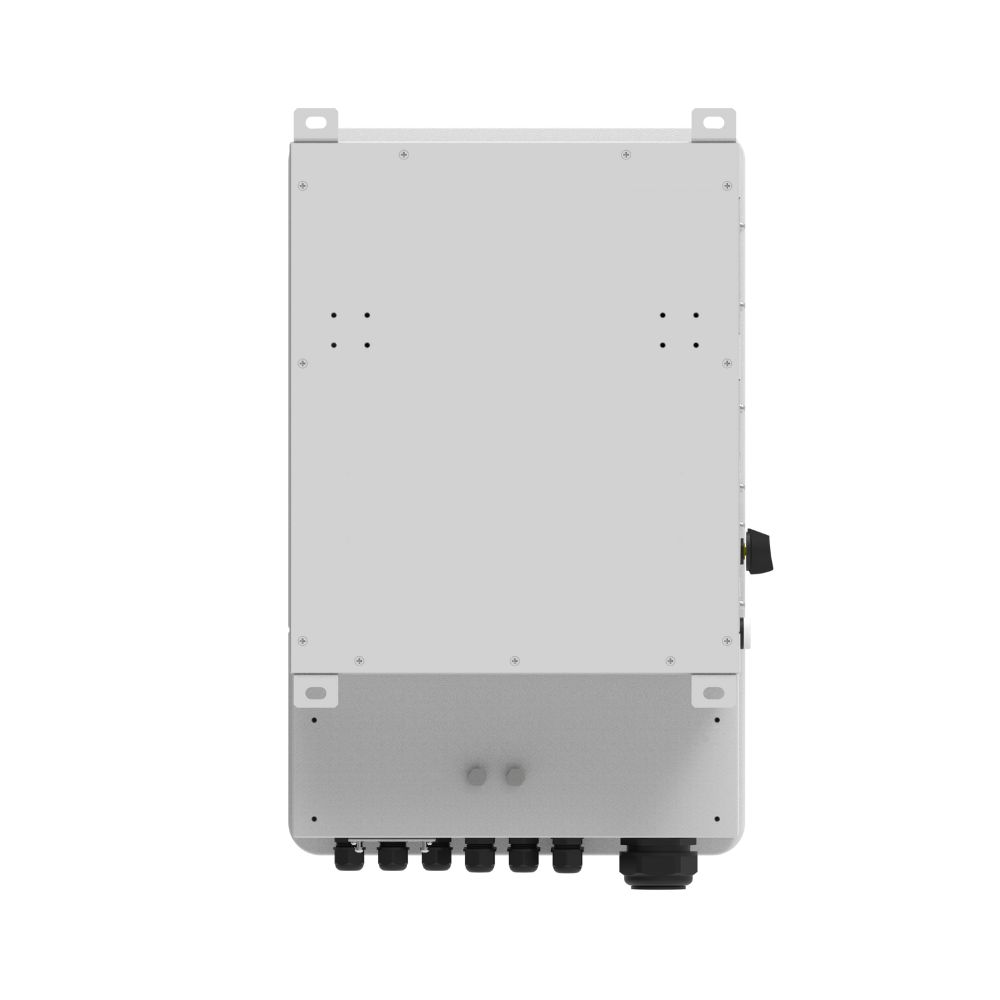

SUN-5/6/7.6/8K-SG02LP2-US-AM2 Split Phase Hybrid Inverter
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 250A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Model SUN-5K-SG02 LP2-US-AM2 SUN-6K-SG02 LP2-US-AM2 SUN-7.6K-SG02 LP2-US-AM2 SUN-8K-SG02 LP2-US-AM2 SUN-10K-SG02 LP2-US-AM3 SUN-12K-SG02 LP2-US-AM3
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120 135 190 190 220 250
Max. Discharging Current (A) 120 135 190 190 220 250
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Input Power (W) 7500 9000 11400 12000 15000 18000
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
Max. Operating PV Input Current (A) 20+20 26+26 26+26+26
Max. Input Short-Circuit Current (A) 44+44 44+44 44+44+44
No. of MPP Trackers/ 2/2+2 3/2+2+2
No. of Strings MPP Tracker 2/2+2 3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W) 5000 6000 7600 8000 10000 12000
Max. AC Input/Output Apparent Power (VA) 5000 6000 7600 8000 10000 12000
Rated AC Input/Output Current (A) 20.9 25 31.7 33.4 41.7 50
Max. AC Input/Output Current (A) 20.9 25 31.7 33.4 41.7 50
Max. Continuous AC Passthrough (grid to load) (A) 35 40 50 60
Peak Power (off-grid) (W) 2 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Rated Input/Output Voltage/Range (V) 120/240; 208 0.88Un＜U＜1.1Un
Rated Input/Output Grid Frequency/Range(Hz) 60/55-65
Grid Connection Form 2L+N+PE
Total Current Harmonic Distortion THDi <3% (of nominal power)
DC Injection Current <0.5% In
Certificate
