SUN-7/7.5/8/9/10/10.5K-G | 7-10.5KW | Single Phase | 2 MPPT

Model: SUN-7/7.5/8/9/10/10.5K-G Categories: ,

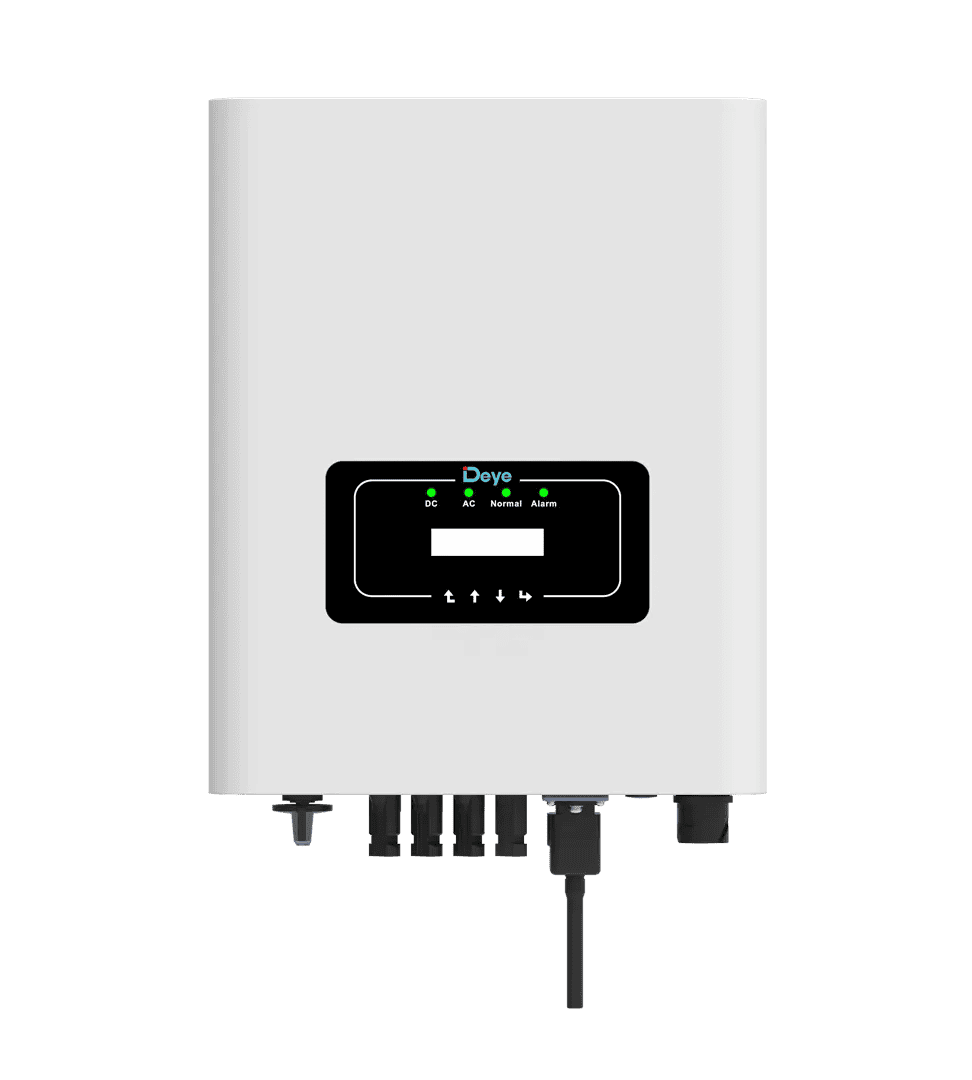

Higher yields / Safe & Reliable / Smart /  SUN-9K-G
The single-phase inverter is one of the best options for residential application thanks to its smaller size and local LCD display, buttons. Also, with built-in zero-export function (external CT is needed), it offers true ease and comfort for PV system operators and installers.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • 2 MPP trackers, Max. efficiency up to 97.7%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)

Technical Specifications

Model SUN-7K-G SUN-7.5K-G SUN-8K-G SUN-9K-G SUN-10K-G SUN-10.5K-G
Input Side
Max. DC Input Power(kW) 9.1 9.8 10.4 11.7 13 13.7
Max. DC Input Voltage (V) 550
Start-up DC Input Voltage(V) 80
MPPT Operating Range(V)  70~500
Max. DC Input Current(A) 13+26 26+26
Max. Short Circuit Current (A) 19.5+39 39+39
Number of MPPT/Strings per MPPT 2/1+2 2 / 2+2
Output Side
Rated Output Power(kW) 7 7.5 8 9 10 10.5
Max. Active Power(kW) 7.7 8.25 8.8 9.9 11 11.55
Rated AC Grid Voltage(V) 220/ 230(Optional)
AC Grid Voltage Range(V) 160Vac~300 Vac(this may vary with grid standards)
Rated Grid Frequency(Hz) 50 / 60 (Optional)
Operating Phase Single phase
Rated AC Grid Output Current(A) 30.4 32.6 34.8 39.1 43.5 45.7
Max. AC Output Current(A) 33.5 35.9 38.3 43 47.8 50.2
Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current(mA) <0.5%
Grid Frequency Range 47~52 or 57~62 (Optional)
Efficiency
Max.Efficiency 97.7%
Euro Efficiency 97.5%
MPPT Efficiency >99%
Protection
DC Reverse-Polarity Protection Yes
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Islanding Protection Yes
Temperature Protection Yes
Integrated DC Switch Yes
Remote software upload Yes
Remote change of operating parameters Yes
Surge protection DC Type II / AC Type II
General Data
Size(mm) 330W×410H×198.5D
Weight(kg) 15.7
Topology Transformerless
Internal Consumption <1W (Night)
Running Temperature
-25~65℃, >45℃ derating
Ingress Protection IP65
Noise Emission(Typical) ≤ 25 dB
Cooling Concept Natural cooling
Max. Operating Altitude Without Derating 2000m
Designed Lifetime >20 years
Grid Connection Standard   CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Operating Surroundings Humidity 0-100%
Safety EMC/Standard   IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
DC Connection MC-4 mateable
AC Connection IP65 rated plug
Display LCD1602
Interface RS485/RS232/Wifi/LAN
