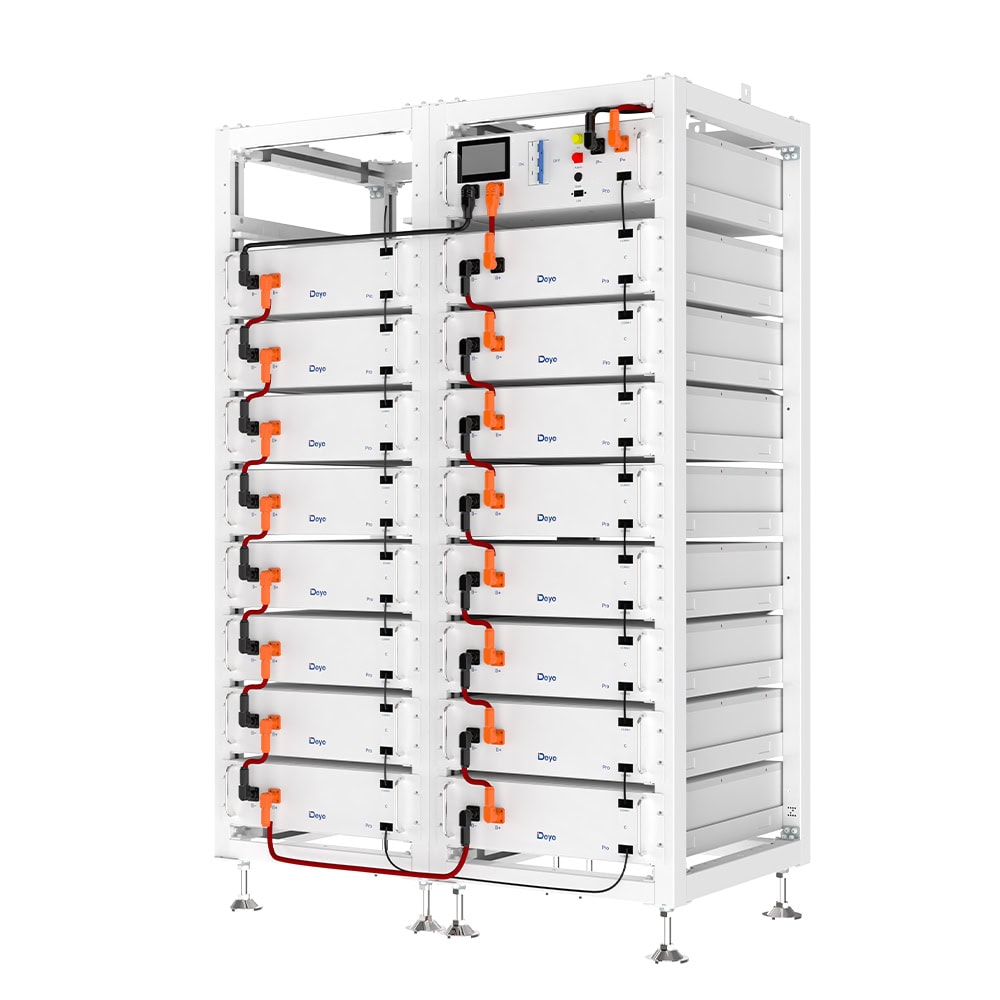

BOS-G Pro (EU, SA, AU)

  • Convenient installation: 19-inch embedded standard module, easy for installation and maintenance
  • Safe and reliable: Uses LiFePO₄ cathode material with safety, long cycle life, low self-discharge (up to 6 months, no memory effect, good shallow charge/discharge performance), supports aerosol fire extinguishing
  • Intelligent BMS: Provides over-discharge, over-charge, over-current, over-high/low temperature protection; automatically manages charge/discharge and balances cell voltage/current
  • Flexible configuration: Multiple modules can be paralleled for capacity/power expansion
  • Eco-friendly: Non-toxic, non-polluting
  • Wide temperature range: -20°C to 55°C with excellent discharge and cycle performance
SKU: BOS-G Pro (EU, SA, AU)Category:ESS Battery, High Voltage Series (HV)
Contact Us

Description

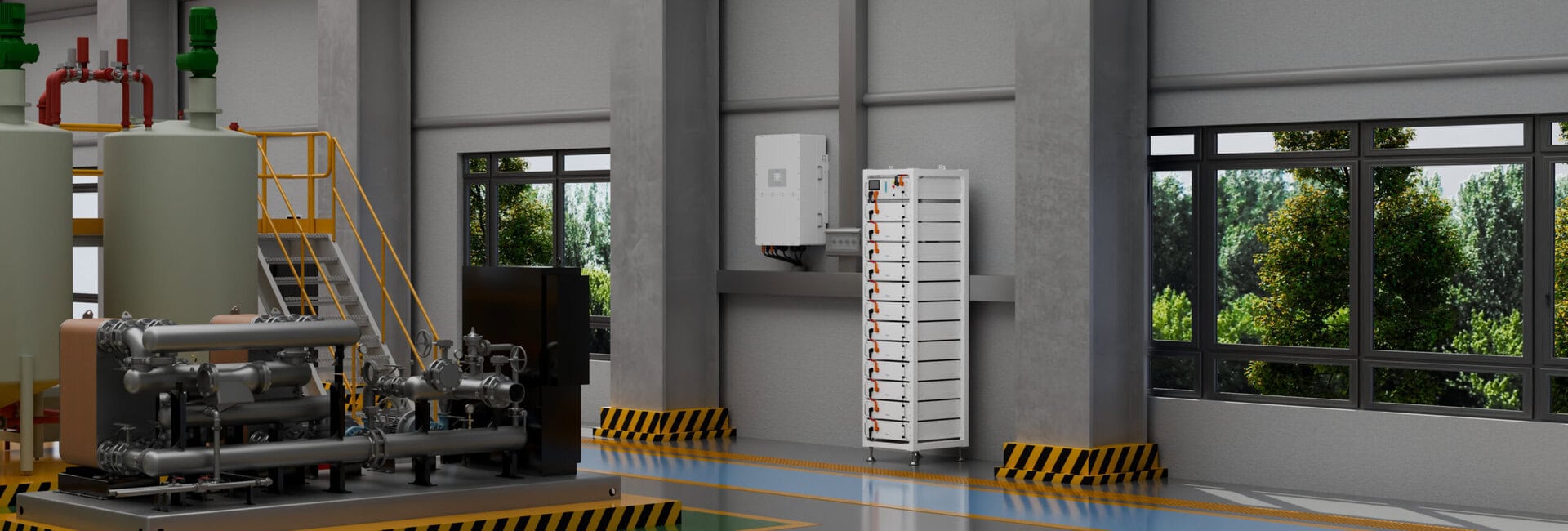

BOS-G Pro: Your Ideal Small-Scale C&I Energy Storage Solution

BOS-G Pro is a standout small – scale commercial and industrial (C&I) energy storage solution, designed to meet diverse energy needs with excellence.
Specification Detail
Cell Chemistry LiFePO₄
Module Energy 5.12 kWh
Module Nominal Voltage 51.2 V
Module Capacity 100 Ah
Battery Module Number Options BOS – G25 Pro (5), BOS – G40 Pro (8), BOS – G60 Pro (12), BOS – G80 Pro (16)
System Energy 25.6 kWh (G25 Pro), 40.96 kWh (G40 Pro), 61.44 kWh (G60 Pro), 81.92 kWh (G80 Pro)
Rated DC Power 25.6 kW (G25 Pro), 40.96 kW (G40 Pro), 61.44 kW (G60 Pro), 81.92 kW (G80 Pro)
Working Temperature Charge: 0 – 55°C; Discharge: – 20 – 55°C
Communication Port CAN2.0 / RS485
IP Rating IP20
Cycle Life ≥6000 cycles (25±2°C, 0.5C/0.5C, EOL70%)
Warranty 10 years
Certification UN38.3 / CE / EMC / IEC62040 / CEC / VDE

Key Features:

  • Convenient Installation & Maintenance: Featuring a 19 – inch embedded design, it enables quick installation. The module’s structure also ensures easy maintenance.
  • Safe and Reliable Performance: Constructed with LiFePO₄ cathode material, it boasts safety, long cycle life, and low self – discharge (lasting up to 6 months). There’s no memory effect, and it excels in shallow charge – discharge. Additionally, it supports aerosol fire extinguishing for enhanced safety.
  • Intelligent Battery Management: Equipped with an Intelligent BMS, it offers protection against over – discharge, over – charge, over – current, and extreme temperatures. The system automatically manages charging/discharging status and balances cell current and voltage.
  • Flexible Configuration Options: Multiple battery modules can be paralleled to expand capacity and power. It also supports USB upgrades and remote upgrades, and is compatible with Deye inverters.
  • Eco – friendly Design: The entire module is non – toxic, non – polluting, and environmentally friendly.
  • Wide Temperature Adaptability: It operates efficiently within a temperature range of – 20°C to 55°C, ensuring excellent discharge performance and cycle life even in varying climates.

Download

Certificate

CB_IEC 62619_BOS-G-Pro_DSS_FI-62886

CE-EMC_BOS-G-PDU-2_DSS_SZEM2504003849BA Ver_CE

IEC 63056_BOS-G-Pro_DSS_FI-65130

VDE_BOS-G-Pro_DSS_PCS-24-20027

IEC 62040_BOS-G-Pro_DSS_LVD SZES2406004241BA

Statement

DEYE Statement on Battery Expansion and Insulation Fault
