GE-F120-2H6 & 3H6 & 4H6

  • Nominal Output: 30 kW (GE-F120-4H6), 40 kW (GE-F120-3H6), 50 kW (GE-F120-2H6)
  • Energy Capacity: 122.8 kWh total (100 kWh usable)
  • Battery Chemistry: LiFePO₄ modules
  • Cycle Life & Warranty: ≥ 6 000 cycles (@0.5 C, 25 °C) with 10-year warranty, 70% EOL capacity
  • Round-Trip Efficiency: 89%
  • PV Input: 45/60/75 kW max, 3–4 MPPT strings, 97.6% MPPT efficiency
  • Integrated Tech: EMS + hybrid inverter + BMS; black-start & off-grid capable; redundant power design
  • Installation & Enclosure: Floor-mounted, IP55 rated
  • Scalability: Up to 10 units in parallel; battery expansion to 3 600 kWh (off-grid)
SKU: GE-F120-2H6 & 3H6 & 4H6 Category:

Description

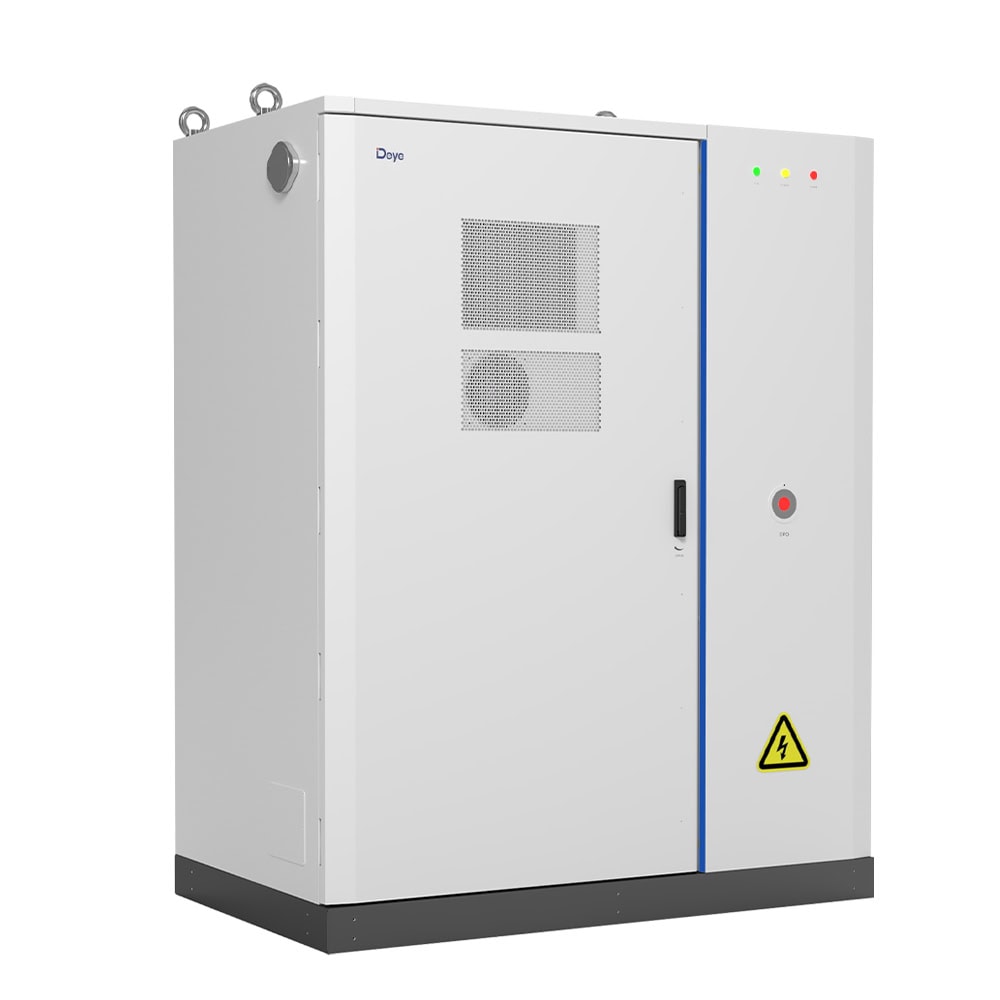

The Deye GE-F120 series, a key part of the Deye Summer GE lineup, offers a robust and scalable Commercial & Industrial Energy Storage Solution. With three distinct models—the GE-F120-2H6, GE-F120-3H6, and GE-F120-4H6—this series is engineered to meet a wide range of power demands, from 30kW to 50kW nominal output.

Specification GE-F120-4H6 GE-F120-3H6 GE-F120-2H6
Nominal Power (UPS/W) 30 000 W 40 000 W 50 000 W
AC Output Rated Current 43.5 A 58 A 72.5 A
Grid Type 3L / N / PE
Energy Configuration 122.8 kWh
Usable Energy 100 kWh
Dimensions (W×D×H) 1780 × 1056 × 2235 mm
IP Rating IP55
Efficiency 97.6% Max.
MPPT Efficiency > 99%
Max. PV Input Power 45 000 W 60 000 W 75 000 W
Num. of MPPT 3 4
MPPT Voltage Range 150–850 Vdc
Battery Module Voltage/Energy 51.2 V / 5.12 kWh
Cycle Life ≥ 6000 cycles
Communication CAN, RS485, RS232, Wi-Fi
Certifications IP (IEC 60529), CEC, CE-LVD (IEC 62040), UN38.3, IEC 62619, IEC 61000

Key Features Across the Series:

  • Advanced Safety: The GE-F120 series prioritizes safety with a 5-level protection system. This includes the use of stable Lithium Iron Phosphate (LiFePO₄) batteries, combustible gas, smoke, and temperature detection, an active exhaust system, a fire alarm, and aerosol fire suppression solutions.
  • Integrated Technology: Each unit comes with an integrated Energy Management System (EMS), a hybrid inverter, and a Battery Management System (BMS). The system supports black start functionality and off-grid operation, providing a reliable power source even during grid outages.
  • High Efficiency and Performance: The series boasts a high round-trip efficiency of up to 89% and a maximum PV input efficiency of 97.6%. This ensures that the energy harvested from solar panels is stored and utilized with minimal loss.
  • Durability and Longevity: Designed for a long service life, the battery modules are rated for over 6000 cycles and come with a 10-year warranty, retaining up to 70% of their capacity at the end of their life (EOL).
  • Flexible and Scalable: The system is designed for flexible extension, with the capability to support battery expansion up to a maximum capacity of 3600KWH in an off-grid configuration. Additionally, up to 10 units can be paralleled for increased power output.

All models share a common energy configuration of 122.8 kWh, with a system usable energy of 100 kWh. They are housed in an IP55-rated enclosure, making them suitable for various environmental conditions, and are designed for floor-mounted installation. With a comprehensive set of certifications, including CE, VDE, and IEC, the Deye GE-F120 series is a reliable, efficient, and safe choice for any commercial and industrial energy storage application.
