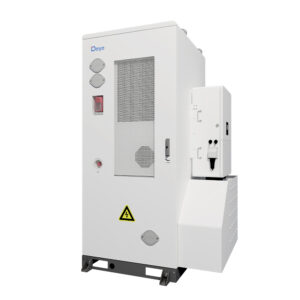

MC-LC430-2H2: All-in-One, Zero-Risk Energy Storage System

GE-F128-BC-2-A3

Ultimate Safety: Six-dimensional protection system ensures continued “0” safety accidents.
All-in-One Integration: Highly integrated design enables quick, wall-bearing-free deployment for PV+ESS.
Stable Performance: Features long-life LFP battery with 100% unbalanced output and high-temperature resistance.
Intelligent Scalability: Supports flexible expansion with AI-driven energy management for optimal strategies.

Description

Ultimate Protection, Continuing “0” safety accidents Six-dimensional safety design, eliminating the risk of the end explosion D1 electrical isolation + D2 physical insulation + D3 active exhaust + D4 directional venting + D5 aerosol suppression + D6 water fire sprinkler High-intensity cabinet, unique patented door latch design, eliminates structural weak points Hour level fire resistance, prevent heat spread
Highly Integrated, All-in-one quick deployment Outer cabinet wall covering inverter bracket installation position, no wall bearing concerns, no need to drill Hybrid inverter, present PV, grid, load, generator, and battery interfaces Single cabinet can easily deploy PV+ESS, PV+ESS+DG
Stable Efficient, Excellent performance ensures returns Long-life lithium iron phosphate battery, ≥6000 cycles High temperature resistance, can normally operate at 45℃, cell temperature difference ≤5℃ 100% unbalanced output, up to 200% PV over matching access
Intelligent Management, Flexible adaptation and expansion Leading rack-level + pack-level + cell-level energy balancing algorithm, non-inductive pack change and cabinet expansion Single cabinet can be configured with a 2/3/4h system of 30-60kW, up to 10 units AC-side on/off-grid parallel or 10 units DC-side battery parallel Integrated energy platform 24/7 AI smart customization of optimal power usage strategies

Model	GE-F112-BC-2-A3	GE-F128-BC-2-A3
Main Parameters
Cell Type	LiFePO₄
Module Capacity (Ah)	314
Module Nominal Voltage (Vdc)	51.2
Module Energy (kWh)	16.07
Module Qty In Series	7	8
System Nominal Energy (kWh)	112	128
System Usable Energy (kWh)*1	112	128
System Nominal Voltage (Vdc)	358.4	409.6
System Operating Voltage (Vdc)	280-408.8	320-467.2
Rated DC Power (kW)	56	64
Charge/Discharge Max. Continuous Current(A)*2	180
Peak discharge@15s/25±2℃	285
Other Parameters
Fire Protection System	Aerosol and Water fire interface
Cooling Method	Smart Air Cooling
Communication Port	CAN, RS485
Communication protocol	CAN2.0, Modbus, TCP/IP
Operating Temperature(℃)*3	-30-55
Recommend Storage Temperature(℃)	0-55
Humidity	5% – 95%RH (No Condensing)
Altitude	3000m
IP Protection	IP55
Anti Corrosion Level	C4-M
Dimension(W x D x H mm)	998 x 1240 x 2400
Weight(kg)	1595	1700
Installation Location	Floor mount
Cycle Life	≥8000 (25±2℃ 0.5P EOL70%)
Warranty	10 years
Certification	UN38.3, IEC, CE, VDE, ROHS, REACH
