Description

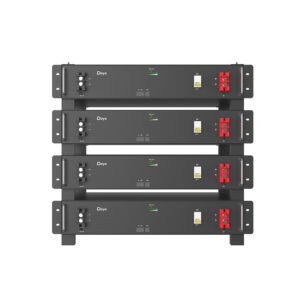

RW-F16: Advanced Residential Energy Storage Battery
The RW-F16 is a cutting-edge battery for residential energy storage, designed to deliver reliable and efficient power management for homes.
| Specification | Detail |
|---|---|
| Model | RW – F16 |
| Battery Chemistry | LiFePO₄ |
| Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
| Usable Energy | 14.4 kWh (90% Depth of Discharge) |
| Charge/Discharge Current – Maximum Continuous | 160 A |
| Charge/Discharge Current – Peak | 300 A (10 seconds) |
| Dimensions | 480 x 830 x 235 mm |
| Weight | Approximately 122 kg |
| IP Rating | IP20 (suitable for indoor use) |
| Operating Temperature Range – Charge | 0°C to 55°C |
| Operating Temperature Range – Discharge | -20°C to 55°C |
| Relative Humidity | 95% (maximum) |
| Installation | Wall – mounted or floor – mounted |
| Warranty Period | 5 – year warranty (10 years extendable) |
| Certification | UN38.3, MSDS |
Key Features:
- Uncompromised Safety: Utilizes the safest LiFePO₄ battery chemistry and features an Intelligent BMS, ensuring safe and stable operation.
- Powerful Output & Ample Energy: Offers a maximum 8kW output power and 14.4kWh usable energy (with 90% depth of discharge), meeting diverse home energy demands.
- External Power Backup: Enables external power activation to prevent battery suspension, guaranteeing continuous energy supply.
- Flexible Use & Scalability: Comes with built-in 10A constant current limited charging, compatible with numerous inverter brands. Allows up to 32 units in parallel for easy expansion.
- Hassle-free Maintenance: Supports over-discharge direct recharge, making upkeep simple.
With dimensions of 480 x 830 x 235 mm, weighing around 122 kg, and an IP20 rating for indoor use, the RW-F16 also comes with a 5-year warranty (extendable to 10 years) and holds certifications like UN38.3 and MSDS, making it a dependable choice for home energy storage.
