RW-F5.3-1H3 (AS, AF, LATAM)

Description

Key Features

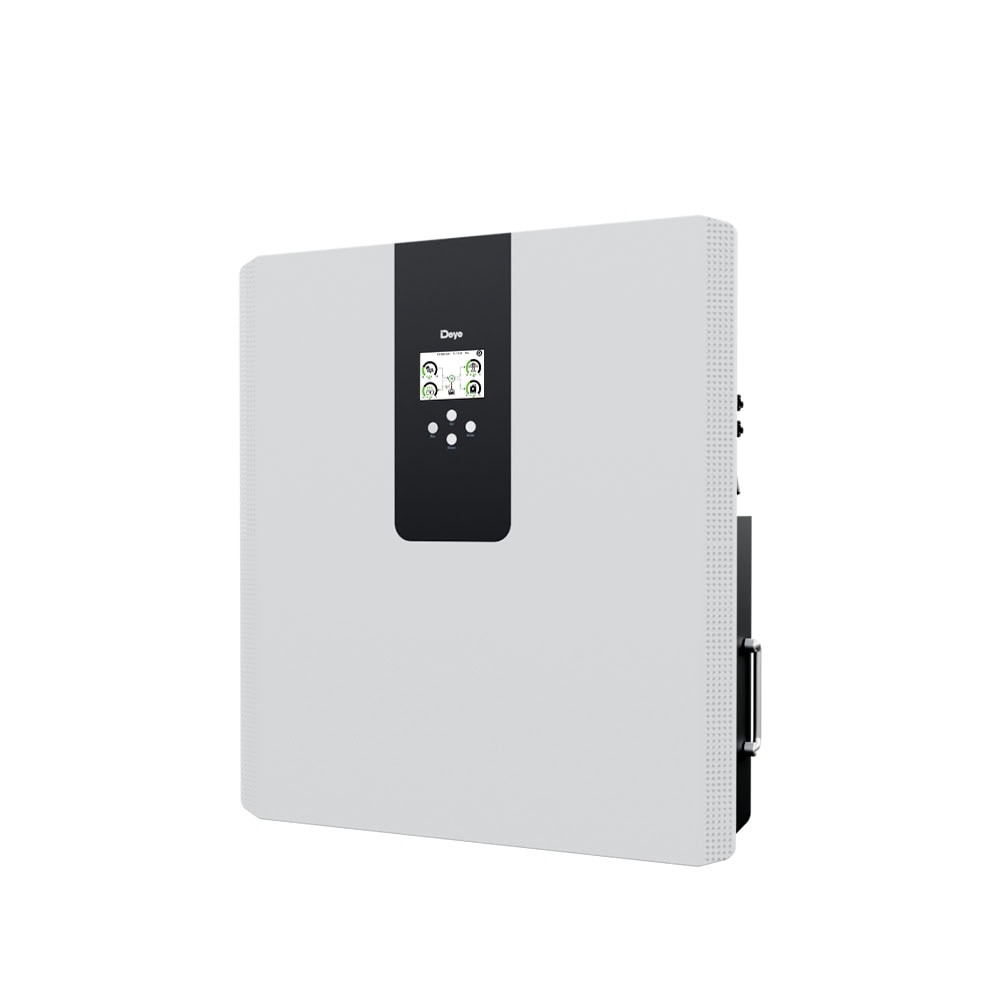

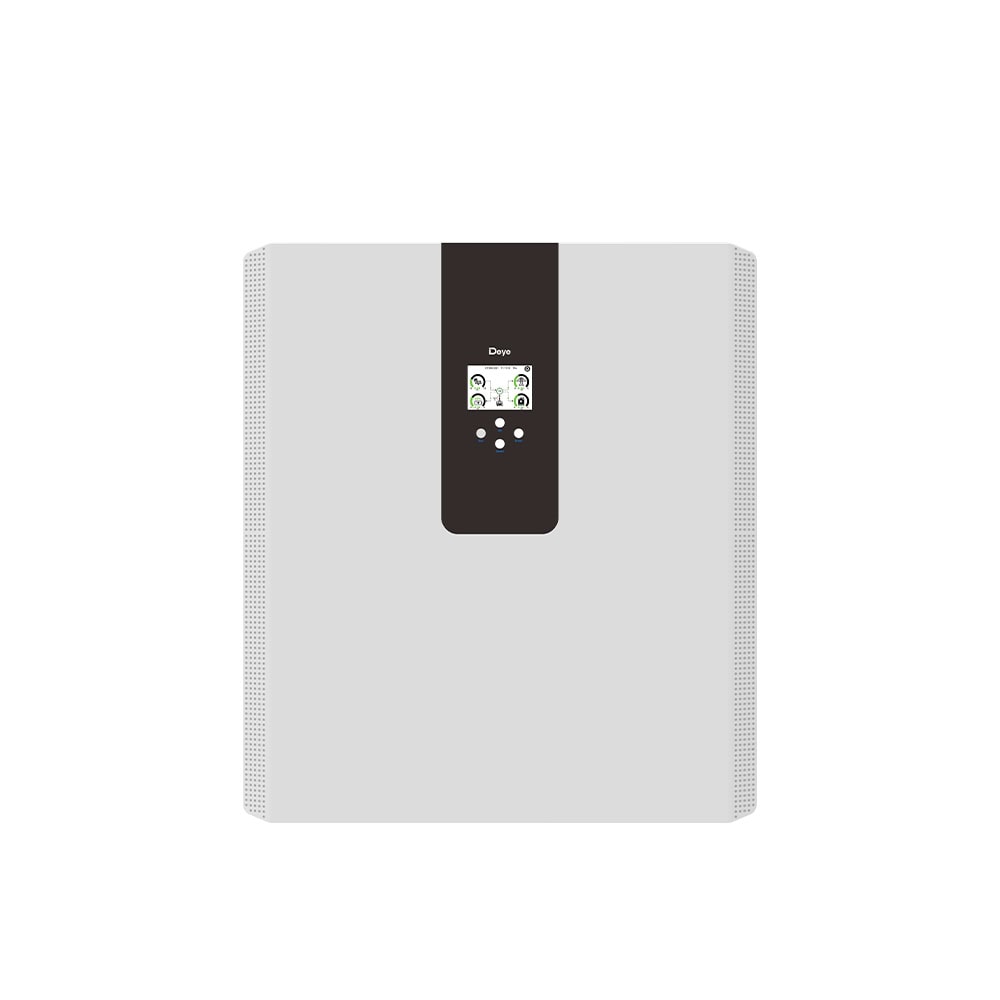

1. Integrated Design: The RW-F5.3-1H3 combines a 3.6kW hybrid inverter with a robust 5.3kWh Lithium Ferrophosphate (LFP) battery. This integration ensures an all-in-one solution that provides both safety and a long lifespan, suitable for various energy storage needs.

2. Fast Switching Time: The system boasts a rapid switching time of 4 milliseconds, which is crucial for maintaining energy security. This capability ensures that power supply remains stable and uninterrupted, even during transitions.

3. Scalability: One of the standout features of the RW-F5.3-1H3 is its scalability. It supports the expansion of up to 16 units in parallel, achieving a maximum capacity of 80kW/84.8kWh. Additionally, it can be expanded with Deye’s 5.3kWh LV batteries, supporting up to 31 additional batteries, bringing the total capacity to 164.3kWh. This makes it highly adaptable to varying energy demands.

4. Advanced Cooling and Protection: The system features Intelligent Air Cooling, complemented by an IP65 rating, which ensures robust protection against dust and water. It operates efficiently within a wide temperature range from -10°C to 55°C. The built-in Intelligent Battery Management System (BMS) provides comprehensive protection, enhancing the safety and longevity of the battery.

5. High Efficiency and Reliability: With a maximum solar-to-home/grid efficiency of 97% and an MPPT efficiency exceeding 99%, the RW-F5.3-1H3 ensures optimal energy conversion. Additionally, the maximum solar-to-battery-to-home/grid efficiency stands at 89%, making it a highly efficient energy storage solution.

Technical Specifications

• Inverter Specifications:
  • Nominal Power: Available in 3,600W or 5,000W variants.
  • Output Frequency and Voltage: 50Hz or 60Hz, 220/230 Vac.
  • Peak Power (Off-Grid): Twice the rated power for 10 seconds.
  • Max. Efficiency: 97%.
  • MPPT Efficiency: Greater than 99%.
• Battery Specifications:
  • Chemistry: Lithium Ferrophosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Energy Capacity: 5.32kWh.
  • Max. Charging/Discharging Current: 75/100A.
  • Battery Cycle Life: At least 6,000 cycles at 25°C, ensuring durability and long-term reliability.
• Physical Dimensions and Installation:
  • Size: 616 × 191 × 690mm.
  • Weight: Approximately 71kg.
  • Installation: Wall-mounted, designed for easy and secure installation.
  • Noise Level: Less than 30dB, ensuring quiet operation.

Compliance and Warranty

The RW-F5.3-1H3 complies with international standards, such as IEC/EN 61000, IEC/EN 62109, and various grid regulations, ensuring that it meets high safety and performance benchmarks. A comprehensive warranty of 10 years underscores the manufacturer’s confidence in the product’s durability and reliability. Detailed warranty information is available in the manufacturer’s warranty policy.

Applications

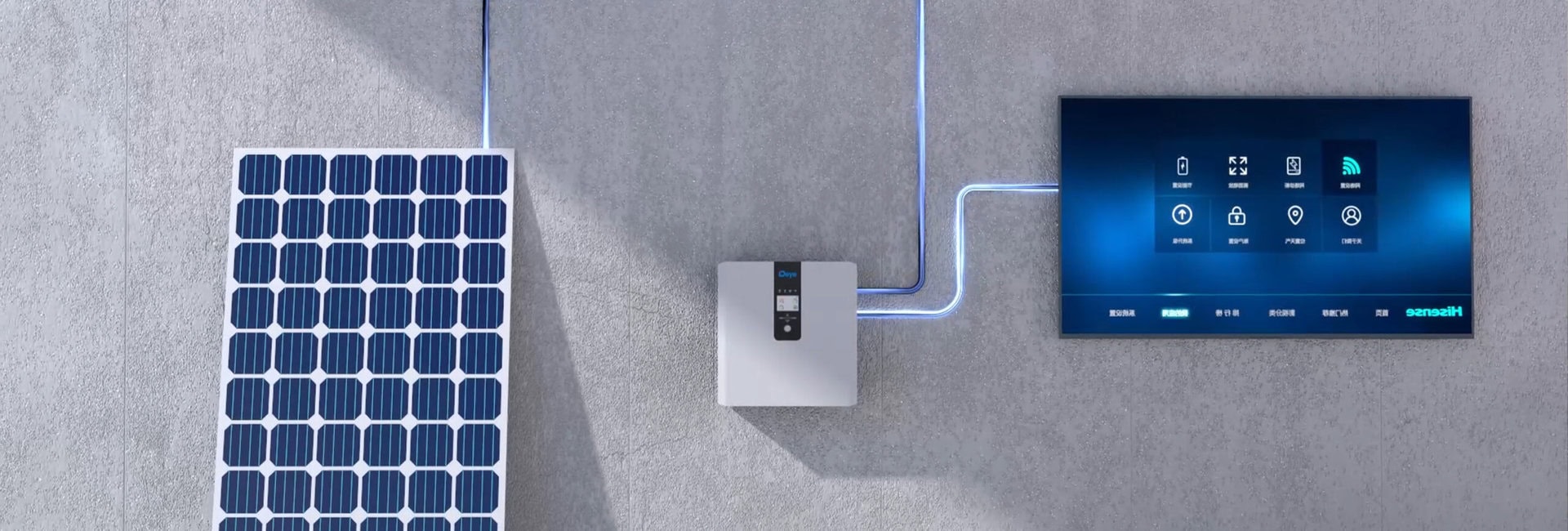

This energy storage system is ideal for a wide range of applications, including on-grid home loads, backup loads, smart loads, and solar energy systems. It supports seamless integration with the grid, generators, and solar panels, ensuring versatile and efficient energy management.

The system’s robust design and advanced features make it an excellent choice for homeowners looking to optimize their energy use and enhance their energy security.
