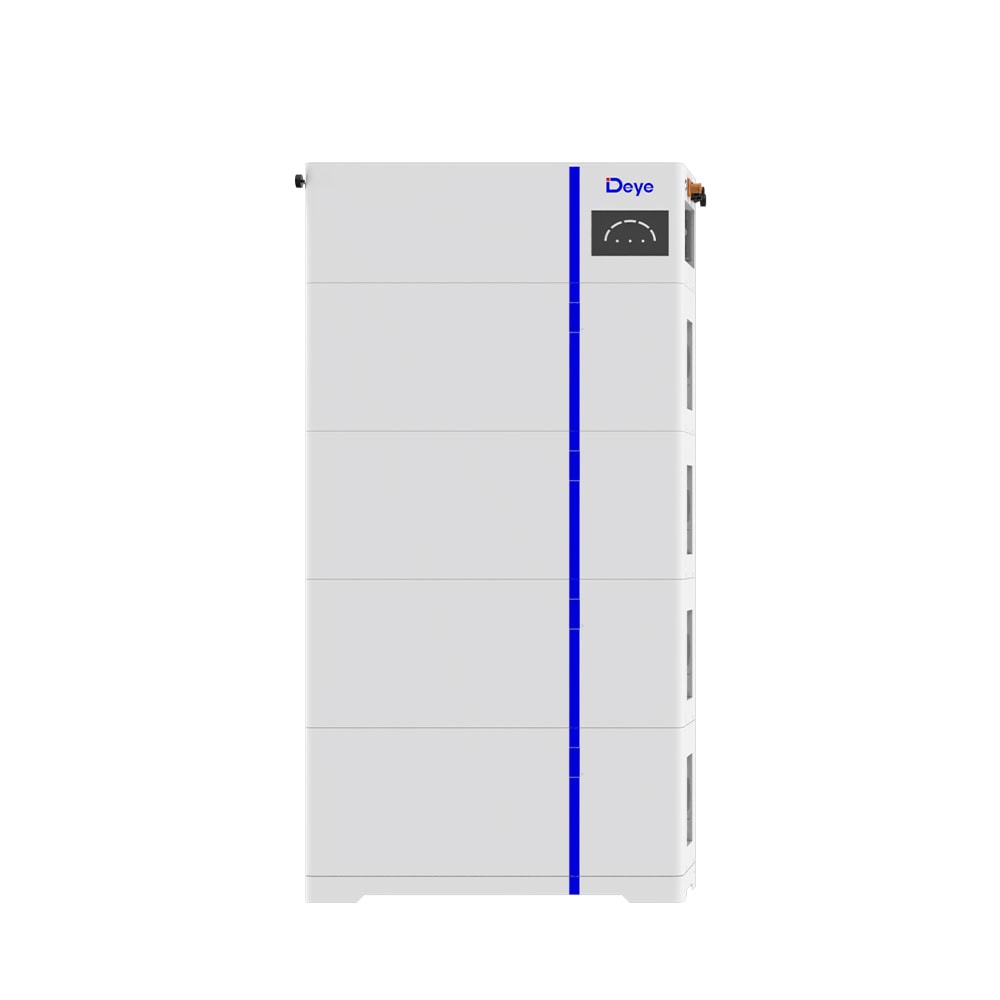

AI-W5.1-B
- Safer
Cobalt Free Lithium lron Phosphate (L FP) Battery, safety and long
lifespan, high efidiency and high-power density. Itelligent BMS,
providing complete protection.
Reliable
Support high discharge power. IP65, natural coling, wide temperature
range: -20°C to 55°C. - Flexible
Modular design, easy to expand, Max.6 clusters in parallel(36 pcs),
Max. capacity of 184kWh.
Suited to residential and commercial applications for increasing the
self-consumption ratio. - Convenient
Battery module auto networking, easy maintenance, support remotely
monitoring and upgrade the firmware. - Eco-Friendly
Use environmental protection materials, the whole module non-
toxic, pollion-fee. - Quick Installation

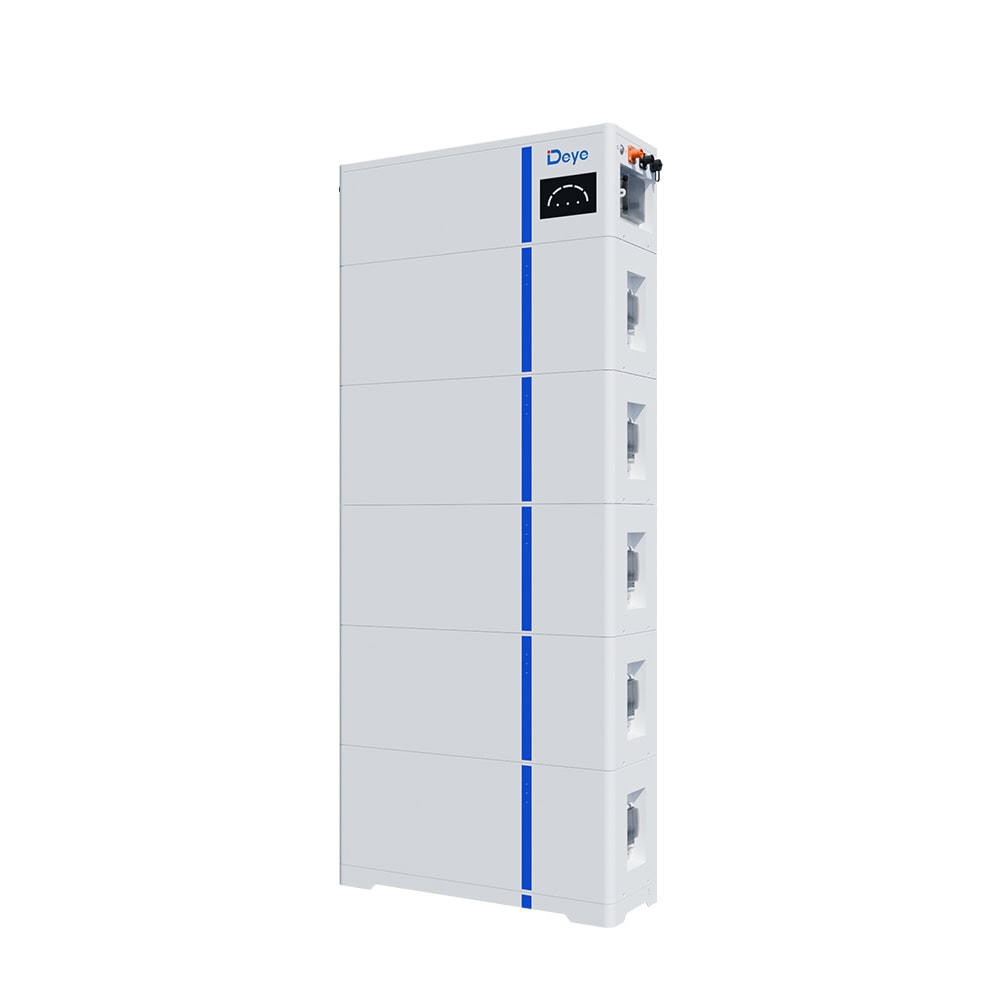

Flat and stackable design, support wall-mounted & foormounted,
no wiring, rapid and easy insallation.
Description
Technical Data
| Model | AI-W5.1-B | ||||||
| Main Parameter | |||||||
| Battery Chemistry | LiFePO4 | ||||||
| Battery Module Energy (kWh) | 5.12 | ||||||
| Battery Module Voltage (V) | 51.2 | ||||||
| Battery Module Capacity (Ah) | 100 | ||||||
| Scalability | 1 | 2 | 3 | 4 | 5 | 6 | |
| Nominal Voltage (V) | 51.2 | ||||||
| Operating Voltage(V) | 43.2~57.6 | ||||||
| Nominal Energy (kWh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 | |
| Usable Energy (kWh)[1] | 4.6 | 9.2 | 13.8 | 18.4 | 23 | 27.6 | |
| Charge/Discharge Current (A) [2] | Recommend | 50 | 100 | 150 | 200 | 250 | 250 |
| Max. | 100 | 180 | 250 | 250 | 250 | 250 | |
| Peak(10s,25℃) | 150 | 270 | 360 | 360 | 360 | 360 | |
| Other Parameter | |||||||
| Recommend Depth of Discharge | 90% | ||||||
| System Dimension (W/D/H, mm) | 720*255*569 | 720*255*850 | 720*255*1131 | 720*255*1412 | 720*255*1693 | 720*255*1974 | |
| System Weight (kg) | 74.5 | 127.5 | 180.5 | 233.5 | 286.5 | 339.5 | |
| Battery Module Dimension(W/D/H, mm) | 720*255*300 (without terminal parts) | ||||||
| Battery Module Weight (kg) | 53 | ||||||
| Master LED Indicator | Battery module: 3LED (working, alarming, protecting),PDU module: 5LED(SOC:20%~100%)&3LED (working, alarming, protecting) | ||||||
| IP Rating of Enclosure | IP65 (after stacking) | ||||||
| Operating Temperature | Charge: 0～55℃ / Discharge: -20℃～55℃ | ||||||
| Storage Temperature | 0℃～35℃ | ||||||
| Humidity | 5%~95% | ||||||
| Altitude | ≤2000m | ||||||
| Installation | Wall-Mounted, Floor-Mounted | ||||||
| Communication Port | CAN2.0, RS485 | ||||||
| Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) | ||||||
| Energy Throughput | 16MWh(Battery Module @70%EOL) | ||||||
| Warranty Period [3] | 10 years | ||||||
| Certification | UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21,CE-LVD, CEC | ||||||
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] Conditions apply, refer to Deye Warranty Letter.
