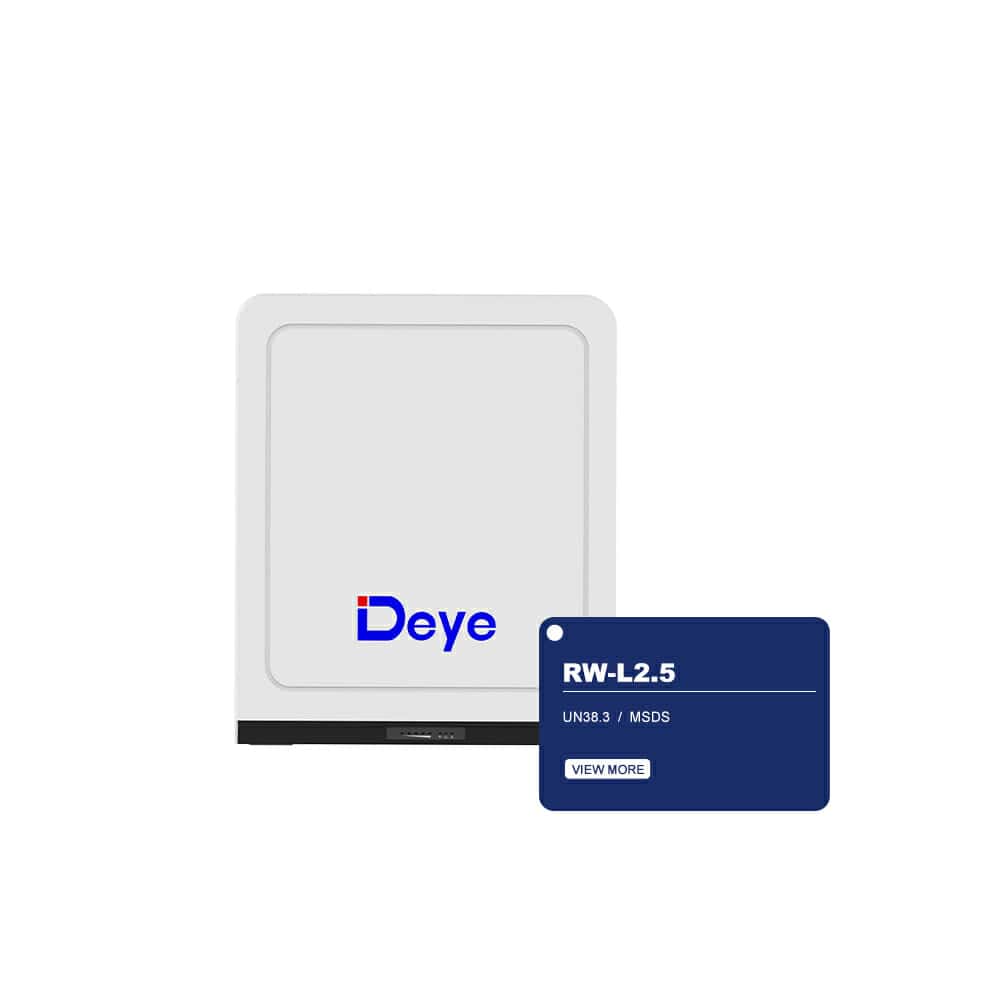

RW-L2.5
The Deye RW-L2.5 is a cutting-edge lithium iron phosphate (LFP) battery designed for safe, reliable, and flexible energy storage in residential and commercial applications. With its cobalt-free chemistry, intelligent battery management system (BMS), and modular design, the RW-L2.5 offers a high-performance solution for increasing your self-consumption ratio.
Description
Key Features:
- Safer: Cobalt-free LFP chemistry provides enhanced safety, long lifespan, high efficiency, and high energy density.
- Reliable: Intelligent BMS offers complete protection, while natural cooling and IP23 rating allow operation in a wide temperature range of -20°C to +55°C.
- Flexible: Modular design enables easy expansion, with a maximum of 32 units in parallel for a total capacity of up to 82 kWh.
- Convenient: Battery modules feature auto-networking, easy maintenance, remote monitoring, and firmware upgrades via USB drive.
- Eco-Friendly: Constructed with environmentally friendly, non-toxic, and pollution-free materials.
- Space-Saving: Flat, wall-mounted design maximizes installation space.
Specifications:
- Battery Chemistry: LiFePO4
- Capacity: 100 Ah
- Scalability: Max. 32 pcs in parallel (82 kWh)
- Nominal Voltage: 25.6 V
- Operating Voltage: 21.6 V – 28.8 V
- Energy: 2.56 kWh
- Usable Energy: 2.30 kWh
- Charge/Discharge Current:
- Recommended: 34 A
- Max: 80 A
- Peak: 100 A (10 mins, 25°C)
- Recommended Depth of Discharge: 90%
- Dimensions (W/H/D): 380 x 450 x 215 mm (without hanging board)
- Weight: Approx. 28 kg
- Warranty: 5 years or 4 MWh energy throughput @ 70% EOL, whichever comes first
The Deye RW-L2.5 LFP battery is the perfect choice for those seeking a safe, efficient, and versatile energy storage solution. Its advanced features and modular design make it suitable for a wide range of applications, from homes to businesses. Invest in the RW-L2.5 today and take control of your energy future with Deye’s cutting-edge technology.
