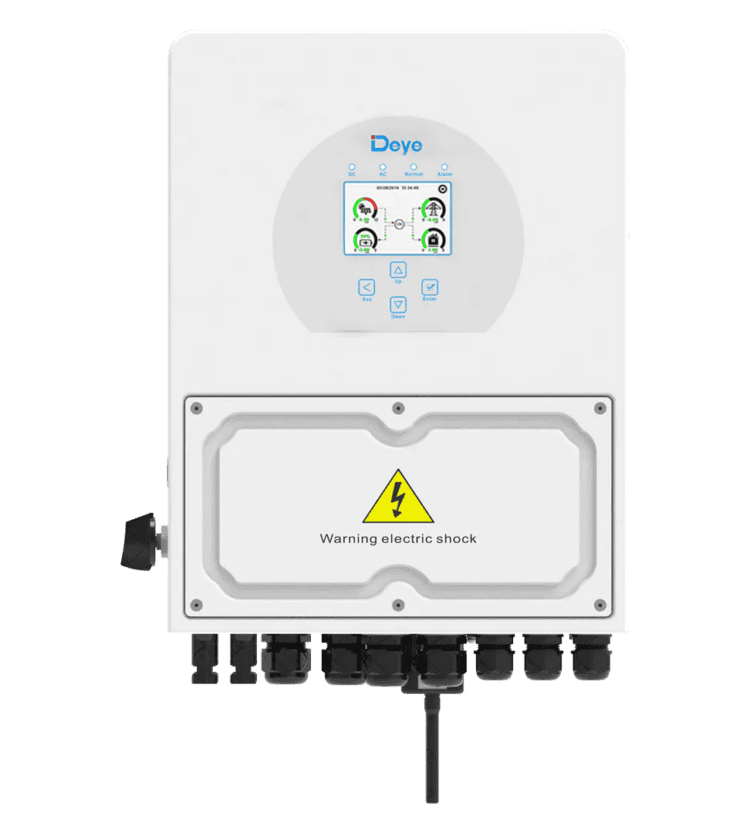

SUN-3/3.6/5/6K-SG04LP1 | 3-6KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SKU: SUN-3/3.6/5/6K-SG04LP1 Categories: ,

Description

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 3/6K-SG04, hybrid inverter, is suitable for residential and light commercial use, maximizing the self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3/6K-SG04. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It is equipped with RS485 / CAN port for battery communication.

The New SUN-3K-SG04LP1 hybrid inverter adopts 24V battery, greatly improving your system safety.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 120A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • 24/48V low voltage battery, safe and reliable
  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

Technical Specifications

Model SUN-3K-SG04LP1-24-EU SUN-3K-SG04LP1-EU
SUN-3.6K-SG04LP1-EU SUN-5K-SG04LP1-EU SUN-6K-SG04LP1-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 20~30 40~60 40~60 40~60 40~60
Max. Charging Current (A) 140A 70A 90A 120A 135A
Max. Discharging Current (A) 140A 70A 90A 120A 135A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 3900W 3900W 4680W 6500W 7800W
PV Input Voltage (V) 370V (125V~500V)
MPPT Range (V) 150~425V
Start-up Voltage (V) 250~425V
PV Input Current (A) 13A 13A+13A
Max. PV ISC (A) 17A 17A+17A
No.of MPPT Trackers 1 2
No.of Strings Per MPPT Tracker 1 1+1
AC Output Data
Rated AC Output and UPS Power (W) 3000W 3600W 5000W 6000W
Max. AC Output Power (W) 3300W 3690W 5500W 6600W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 13.6 16.4 22.7 27.3
Max. AC Current (A) 15 18 25 30
Max. Continuous AC Passthrough (A) 35A 40A
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz; 220/230 / 240Vac (single phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge protection DC Type II / AC Type II
Certifications and Standards
Grid Regulation
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard     IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -45~60℃, >45℃ Derating
Cooling Natural cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 14
Size (mm) 330W×433H×238D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
