Description
Higher yields / Safe & Reliable / Smart / User-friendly

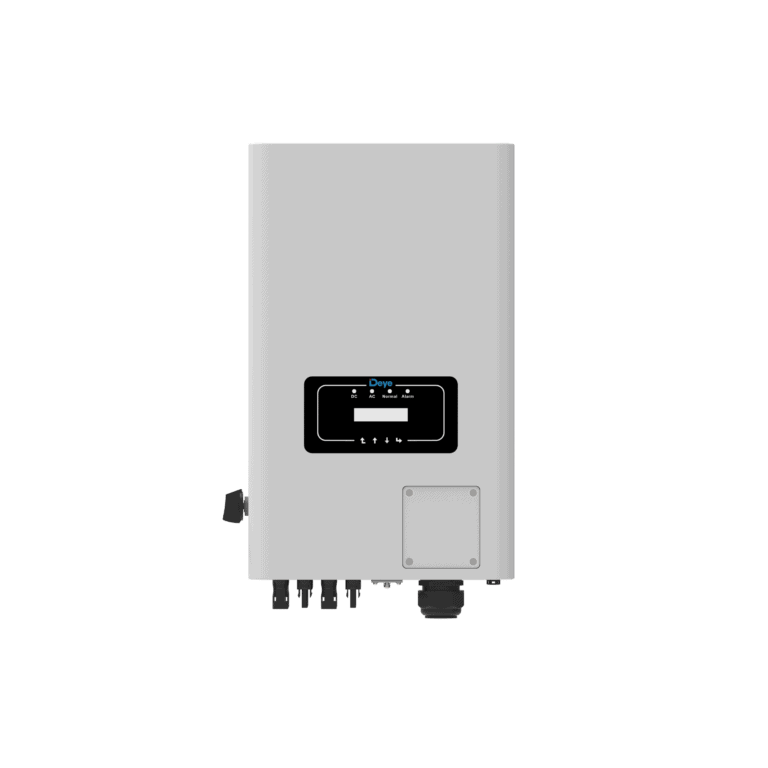

This new series of three-phase output inverter has wider range of 30kw, 33kw, 36kw than the original series, at the same time still got two integrated MPPTs, allowing two-array to input from different roof orientations. In addition, it allows the system to be monitored and controlled remotely.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
- 2 MPP tracker, Max. efficiency up to 98.6%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
Technical Specifications
| Model |
SUN-30K-G04 |
SUN-33K-G04 |
SUN-36K-G04 |
| Input Side |
| Max. DC Input Power(kW) |
39 |
42.9 |
46.8 |
| Max. DC Input Voltage (V) |
1000 |
| Start-up DC Input Voltage(V) |
250 |
| MPPT Operating Range(V) |
200~850 |
| Max. DC Input Current(A) |
40+40 |
| Max. Short Circuit Current (A) |
60+60 |
| Number of MPPT/Strings per MPPT |
2 / 4 |
| Output Side |
| Rated Output Power(kW) |
30 |
33 |
36 |
| Max. Active Power(kW) |
33 |
36.3 |
39.6 |
| Rated AC Grid Voltage(V) |
220 / 380, 230 / 400 |
| AC Grid Voltage Range(V) |
277Vac~460Vac(this may vary with grid standards) |
| Rated Grid Frequency(Hz) |
50 / 60 (Optional) |
| Operating Phase |
Three phase |
| Rated AC Grid Output Current(A) |
43.5 |
47.8 |
52.2 |
| Max. AC Output Current(A) |
47.8 |
52.8 |
57.4 |
| Output Power Factor |
0.8 leading to 0.8 lagging |
| Grid Current THD |
<3% |
| DC Injection Current(mA) |
<0.5% |
| Grid Frequency Range |
47~52 or 57~62 (Optional) |
| Efficiency |
| Max.Efficiency |
98.6% |
| Euro Efficiency |
97.8% |
| MPPT Efficiency |
>99% |
| Protection |
| DC Reverse-Polarity Protection |
Yes |
| AC Short Circuit Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| Output Overvoltage Protection |
Yes |
| Insulation Resistance Protection |
Yes |
| Ground Fault Monitoring |
Yes |
| Islanding Protection |
Yes |
| Temperature Protection |
Yes |
| Integrated DC Switch |
Yes |
| Remote software upload |
Yes |
| Remote change of operating parameters |
Yes |
| Surge protection |
DC Type II / AC Type II |
| General Data |
| Size(mm) |
362W×577H×215D |
| Weight(kg) |
25.5 |
| Topology |
Transformerless |
| Internal Consumption |
<1W (Night) |
| Running Temperature |
-25~65℃ |
| Ingress Protection |
IP65 |
| Noise Emission(Typical) |
<45dB |
| Cooling Concept |
Smart cooling |
| Max. Operating Altitude Without Derating |
2000m |
| Designed Lifetime |
>20 years |
| Grid Connection Standard |
EN50549-1,VDE 0126-1-1 |
| Operating Surroundings Humidity |
0-100% |
| Safety EMC/Standard |
IEC62109-1/-2,IEC61000-6-2,IEC61000-6-4 |
| Features |
| DC Connection |
MC-4 mateable |
| AC Connection |
IP65 rated plug |
| Display |
LCD 1602 |
| Interface |
RS485/RS232/Wifi/LAN |
