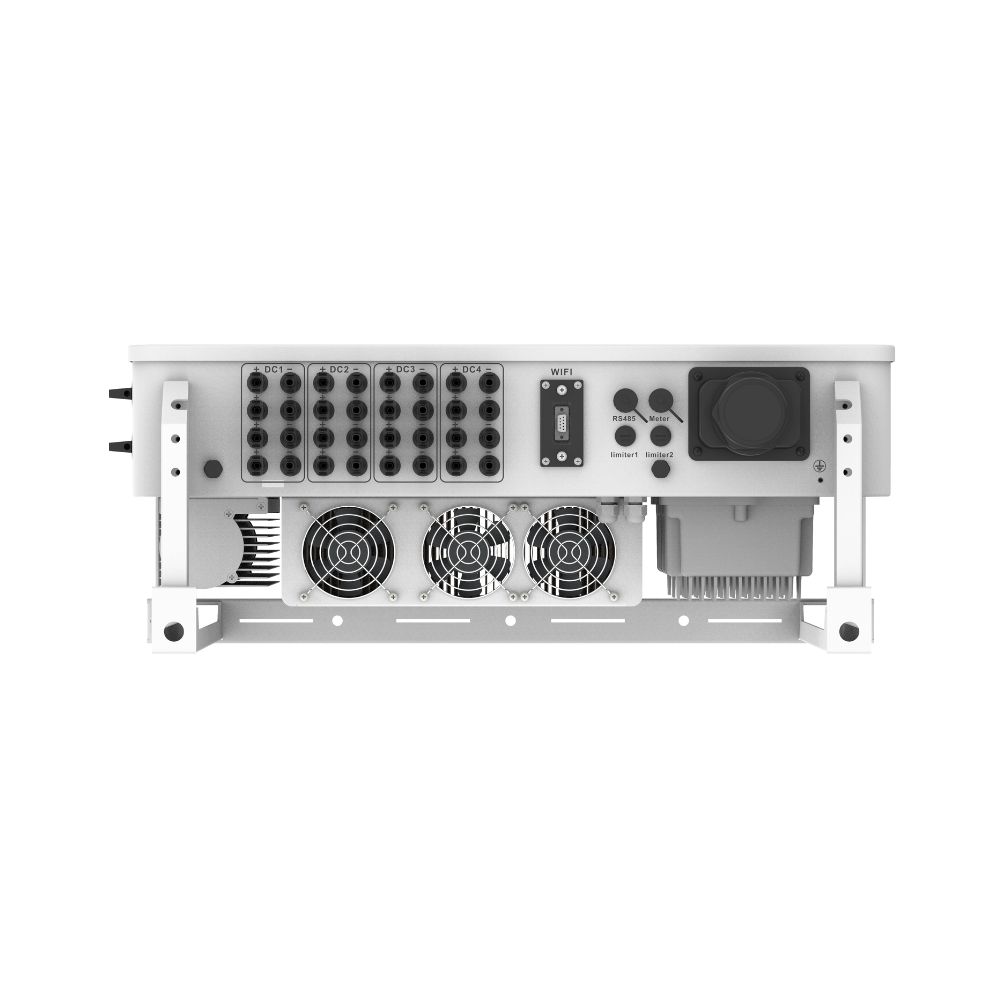

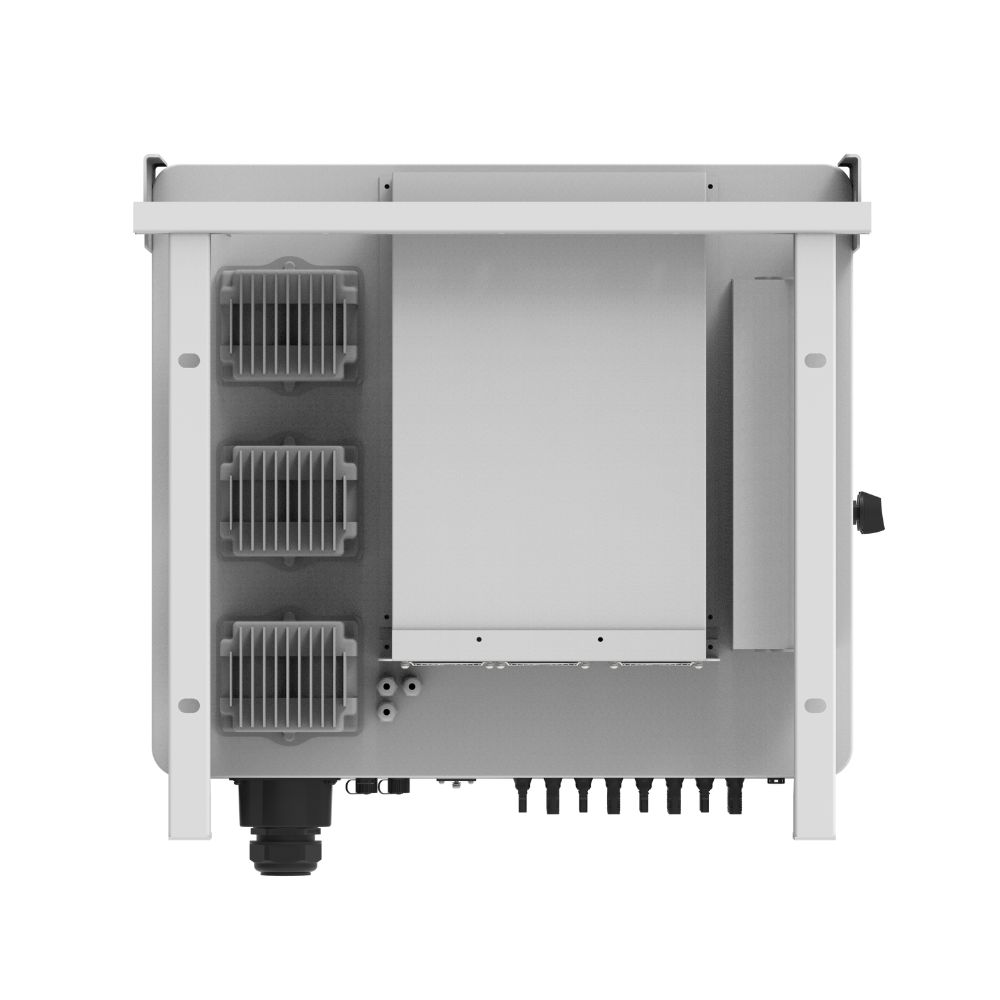

SUN-60/70/75/80K-GSUN-(60-80)K-G04P3-EU-AM4 Three Phase String Inverter

DownloadCertificateContact Us

Product Description

SUN-60/70/75/80K-GSUN-(60-80)K-G04P3-EU-AM4 Three Phase String Inverter
4 MPP trackers, Max. efficiency up to 98.7% Zero export application, VSG application String intelligent monitoring (optional) Wide output voltage range Anti-PID function (Optional) Type II DC/AC SPD

Model	SUN-60K-G04P3-EU-AM4	SUN-70K-G04P3-EU-AM4	SUN-75K-G04P3-EU-AM4	SUN-80K-G04P3-EU-AM4
PV String Input Data
Max. PV Input Power (kW)	90	105	112.5	120
Max. PV Input Voltage (V)	1100
Start-up Voltage (V)	250
MPPT Voltage Range (V)	200-1000
Rated PV Input Voltage (V)	600		720
Max. Operating PV Input Current (A)	40+40+40+40
Max. Input Short Circuit Current (A)	60+60+60+60
No. of MPP Trackers/ No. of Strings/ MPP Tracker	4/3+3+3+3	4/4+4+4+4
AC Output Side
Rated AC Output Active Power (kW)	60	70	75	80
Max. AC Output Apparent Power (kVA)	66	77	82.5	88
Rated AC Output Current (A)	90.9/87	106.7/101.5	113.6/108.7	121.2/115.9
Max. AC Output Current (A)	100/95.7	116.7/111.6	125/119.6	133.3/127.3
Rated Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L/N/PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%In
Efficiency
Max. Efficiency	98.6%	98.7%
Euro Efficiency	98.0%	98.1%
MPPT Efficiency	>99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
DC Component Monitoring	Yes
Arc-Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	Yes
Residual Current Detection	Yes
Surge Protection Level	TYPE II(DC), TYPE III(AC)
DC Switch	Yes
