Description
Model |
SUN-BK80-2.56KWH-EU-AM4-18L |
SUN-BK160-2.56KWH-EU-AM4-18L |
SUN-BK200-2.56KWH-EU-AM4-18L |
SUN-BK250-2.56KWH-EU-AM4-18L |
Rated AC Input/Output Active Power |
800W |
1600W |
2000W |
2500W |
Max. AC Input/Output Active Power |
880W |
1760W |
2200W |
2750W |
Max. off grid power |
2500W |
AC Input / Output Frequency and Voltage |
50Hz (45Hz ~ 55Hz), 60Hz (55Hz ~ 65Hz), L + N + PE, 220 / 230 Vac |
Grid Type |
Single phase |
Rated AC Input/Output Current |
3.7A / 3.5A |
7.3A / 7.0A |
9.1A / 8.7A |
11.4A / 10.9A |
Max. AC Input/Output Current |
4A / 3.9A |
8A / 7.7A |
10A / 9.6A |
12.5A / 12A |
Peak Power ( off – grid ) |
2 time of rated power, 10s |
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
Max. Continuous AC Passthrough (grid to load) |
30A |
DC Injection Current |
<0.5%In |
Key Features:

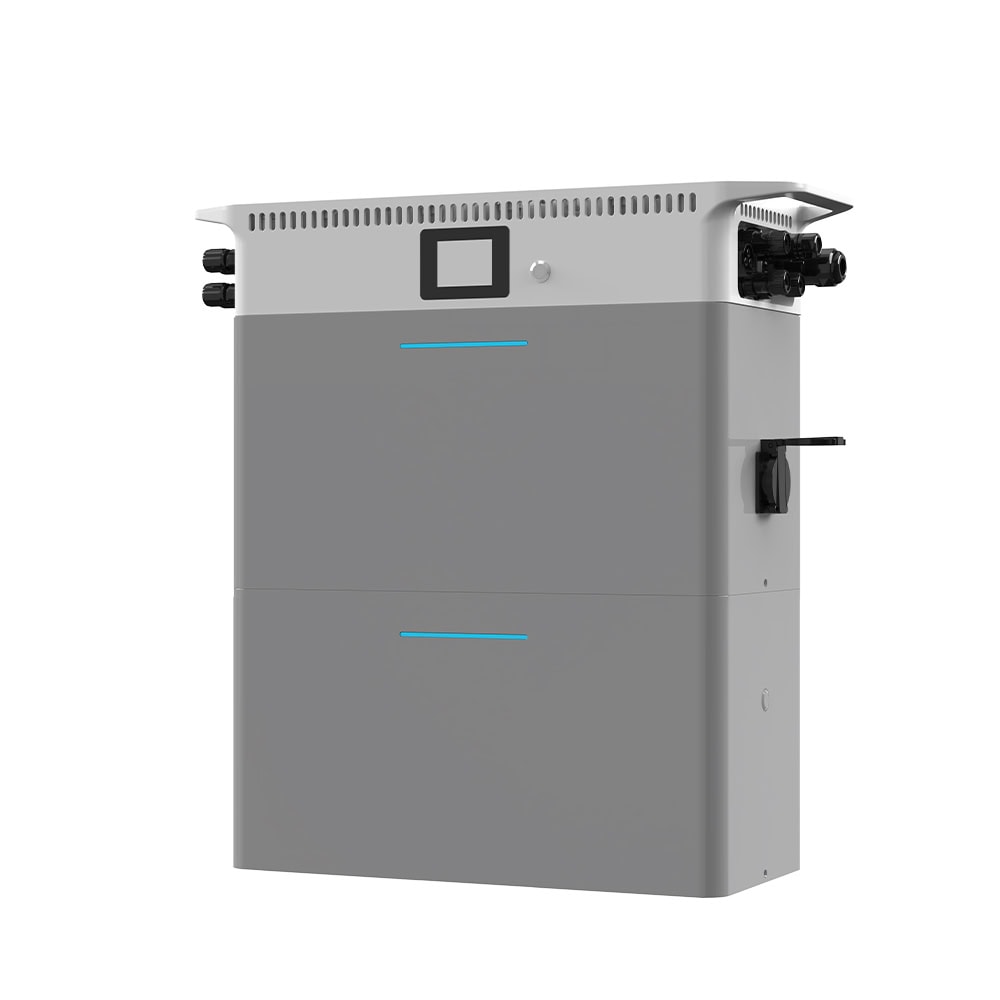

The SUN – BK80/160/200/250 Micro Hybrid Energy Storage System is a versatile solution for all your energy needs. It’s suitable for on – grid, off – grid, and portable use, adapting seamlessly to different scenarios.
- Multiple Working Modes:
- Hybrid Grid – Tied Mode: Enables self – consumption of energy, helping you make the most of your power.
- Off – Grid Mode: Provides standalone and portable energy storage, ensuring power supply even when disconnected from the main grid.
- AC – Coupled Mode: Allows upgrading existing PV balcony systems to energy storage systems (ESS), enhancing your current setup.
- Impressive Performance:
- Boasts a high DC – AC conversion efficiency of up to 96.5%, maximizing energy utilization.
- Features UPS – grade backup power with a grid – tie and off – grid switchover time of less than 4ms, ensuring uninterrupted power.
- Supports up to 4 MPPTs for flexible connection of multiple PV panels.
- Offers 2500W rated power for AC charge/discharge, meeting various power demands.
- Convenience & Durability:
- Comes with local Bluetooth communication, supporting offline control via the Deye Cloud APP for easy management.
- Has an IP65 protection rating and a 10 – year standard warranty, guaranteeing durability and reliability.
- Allows seamless scalability, so you can easily expand the system with additional battery capacity as your needs grow.
