Description
Parameter | Details |
---|---|

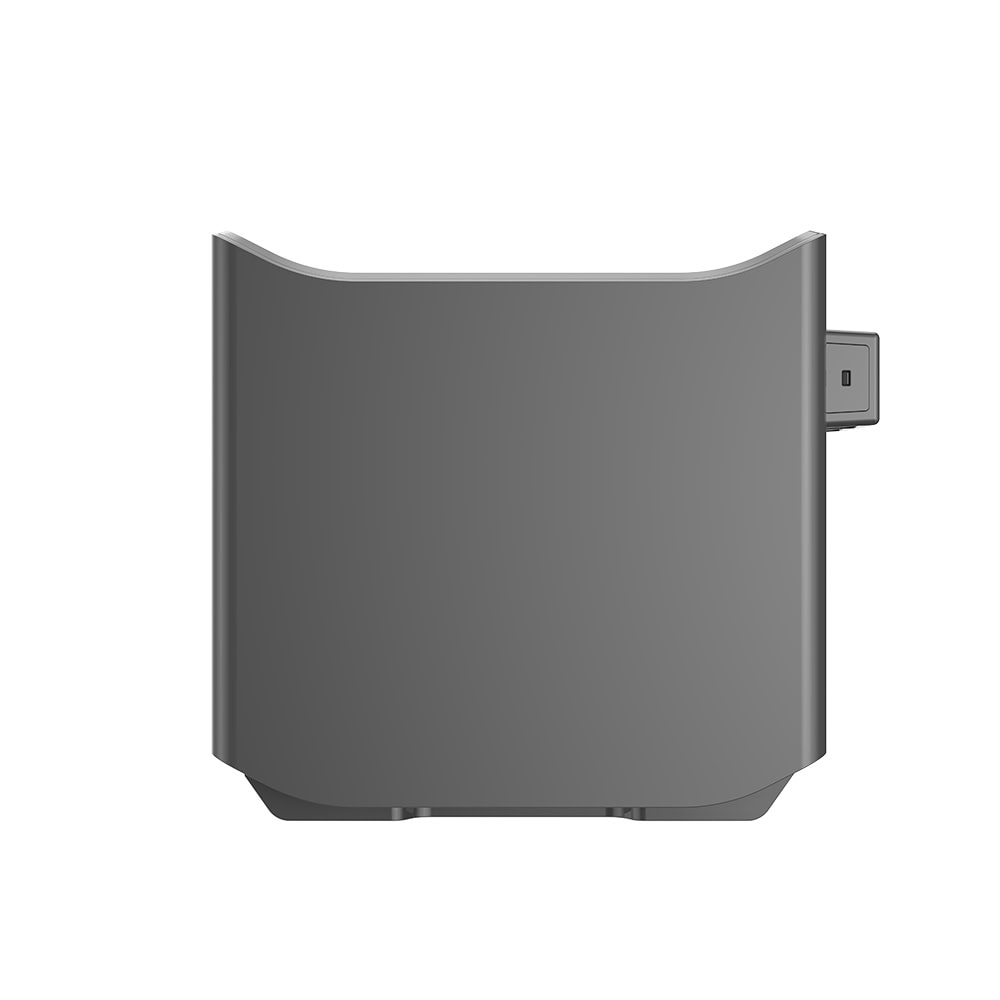

Model | WD – G12100 |
Battery Chemistry | LiFePO₄ |
Nominal Capacity | 100 Ah |
Nominal Voltage | 12.8 V |
Operating Voltage | 11.2 V ~ 14.6 V |
Nominal Energy | 1.28 kWh |
Cell Configuration | Prismatic, 1P4S |
Scalability | Max 4 units in series (51.2 V) and Max 10 units in parallel |
Charge Current | – Max. Continuous: 100 A – Peak: 200 A (10 sec) |
Discharge Current | – Max. Continuous: 100 A – Peak: 200 A (10 sec) |
Recommend Depth of Discharge | 80% DoD |
Dimension Approximate (W×D×H, mm) | 310 × 160 × 298 |
Weight Approximate | 11 kg |
Case Material | ABS+PC |
LED Indicator | LED (SOC, working, protecting) & Buzzer |
Communication | RS485 |
IP Rating of Enclosure | IP20 |
Operating Temperature | – Charge: 0 – 55°C – Discharge: -20°C – 55°C |
Storage Temperature | 0 – 35°C |
Relative Humidity | 95% |
Altitude | ≤2000m |
Cycle Life | ≥6000 (25°C±2°C, 0.2C charging and discharging, 80% DoD, 70% EOL) |
Warranty Period | 5 years |
Installation | Floor – Mounted, Stack – Mounted |
Certification | UN38.3, MSDS |
Key Features:
- Capacity & Energy: It has a nominal capacity of 100 Ah and a nominal energy of 1.28 kWh, providing reliable power.
- Scalability: Allows a maximum of 4 units in series (reaching 51.2 V) and a maximum of 10 units in parallel, meeting various power demands.
- Charging & Discharging: Features a max continuous charge and discharge current of 100 A, with a peak current of 200 A for 10 seconds, enabling fast energy transfer.
- Durability & Reliability: Offers a cycle life of ≥6000 cycles under ideal conditions (25°C±2°C, 0.2C charge/discharge, 80% DoD, 70% EOL) and comes with a 5-year warranty. It operates in a wide temperature range: charge at 0 – 55°C and discharge at -20 – 55°C.
- User-Friendly Design: Equipped with LED indicators (showing SOC, working, protecting status) and a buzzer. Supports RS485 communication for firmware updates. Weighs 11 kg with dimensions 310×160×298 mm, using ABS+PC case material, and is easy to install via floor-mounted or stack-mounted methods.
