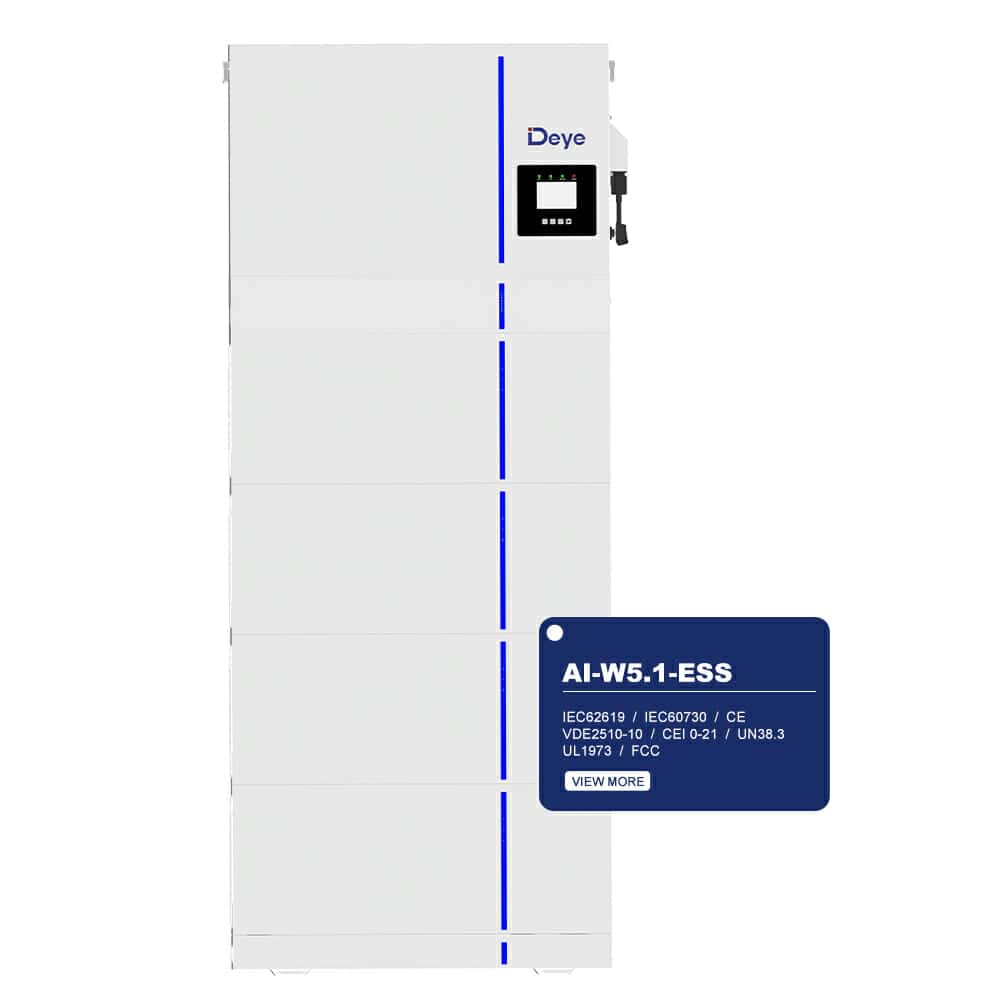

AI-W5.1-ESS (LV)
All-in-one Energy Storage System
- All in one design, integrated 5 kW~ 12 kW Three Phase hybrid inverter and battery
- Comfortable and easy control via App, PC or Touch Display
- Leading smart application: peak shaving, smart load, AC couple etc
- Modular lithium iron phosphate battery, capacity of 5 kWh~ 3 0kWh, scalable and safety
- Flat and stackable design, floor mounted, no wiring and extra fixing screws, quick and easy installation.
- Fast switching time of 4ms, ensuring your energy security
SKU: AI-W5.1-ESS
Category: Low Voltage Series (LV)
Description
Technical Data
Model | AI-W5.1-3.6P1-EU | AI-W5.1-5P1-EU | AI-W5.1-6P1-EU | AI-W5.1-7.6P1-EU | AI-W5.1-8P1-EU | |
System Specification | ||||||
Nominal Output Power/UPS Power (W) | 3600/3600 | 5000/5000 | 6000/6000 | 7600/7600 | 8000/8000 | |
AC Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | |||||
Grid Type | Single Phase | |||||
Recommended Energy Configuration | 5kWh(Min.) | 10kWh(Min.) | ||||
Max. Charging/Discharging Current (A) | 90 | 120 | 135 | 190 | 190 | |
Battery Operating Voltage (V) | 43.2 ~ 57.6 | |||||
Battery Chemistry | LiFePO4 | |||||
IP Rating of Enclosure | IP65 (after stacking) | |||||
System Certification | IEC62619, IEC60730, CE, VDE2510-50, CEI 0-21 | |||||
Warranty[1] | Battery 10 years (Inverter 5 years) | |||||
Inverter Technical Specification | ||||||
Max. PV Input Power (W) | 4680 | 6500 | 7800 | 9880 | 10400 | |
Rated PV Input Voltage (Vdc) | 370 (125~500) | |||||
Start Up DC Voltage (Vdc) | 125 | |||||
MPPT Voltage Range (Vdc) | 150-425 | |||||
Full Load DC Voltage Range (V) | 300~425 | 200~425 | ||||
Max. PV Input Current (A) | 13+13 | 26+26 | ||||
Max. PV Short-circuit Current (A) | 17+17 | 34+34 | ||||
No. of MPP Trackers | 2 | |||||
Peak Power (off grid) | 2 time of rated power, 10s | |||||
Power Factor | 0.8 leading to 0.8 lagging | |||||
DC injection current (mA) | THD<3% (Linear load<1.5%) | |||||
Display | LCD | |||||
Relative Humidity | 15% ~ 85% (No Condensing) | |||||
Dimension (W x D x H,mm) | 720x255x330 | |||||
Weight (kg) | 34 | |||||
Communication with BMS | CAN2.0 | |||||
Safety | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
|||||
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
|||||
Max. Efficiency | 97.60% | |||||
Max. charging/discharging efficiency | 95.50% | |||||
Battery Technical Specification | ||||||
Nominal Voltage (V) | 51.2 | |||||
Battery Module Energy (kWh) | 5.12 | |||||
Module Scalability | Max.36 pcs in parallel(Max. capacity of 184kWh) | |||||
Battery Module Dimension | 720*255*300(W x D x H, mm) | |||||
Battery Base Dimension | 720*255*68(W x D x H, mm) | |||||
Battery PDU3 Dimension | 720*255*228(W x D x H, mm) | |||||
Battery Module Weight (kg) | 53 | |||||
Operating Temperature Range | Charge: 0~55℃ / Discharge: -20℃~55℃ | |||||
Cycle Life | ≥6000(25℃±2℃, 0.5C/0.5C, 90%DOD, 70%EOL) | |||||
Battery Module Certification | IEC62619, CE, UK, VDE2510-50, CEI 0-21, UN38.3, CE-LVD, CEC |
[1] Conditions apply, refer to Deye Warranty Letter.
Model | AI-W5.1-5P3-EU | AI-W5.1-6P3-EU | AI-W5.1-8P3-EU | AI-W5.1-10P3-EU | AI-W5.1-12P3-EU | |
System Specification | ||||||
Nominal Output Power/UPS Power (W) | 5000/5000 | 6000/6000 | 8000/8000 | 10000/10000 | 12000/12000 | |
AC Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||
Grid Type | Three Phase | |||||
Recommended Energy Configuration | 5kWh(Min.) | 10kWh(Min.) | 15kWh(Min.) | |||
Max. Charging/Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |
Battery Operating Voltage (V) | 43.2 ~ 57.6 | |||||
Battery Chemistry | LiFePO4 | |||||
IP Rating of Enclosure | IP65 (after stacking) | |||||
System Certification | IEC62619, IEC60730, CE, VDE2510-50, CEI 0-21 | |||||
Warranty[1] | Battery 10 years (Inverter 5 years) | |||||
Inverter Technical Specification | ||||||
Max. PV Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | |
Rated PV Input Voltage (Vdc) | 550 (160~800) | |||||
Start Up DC Voltage (Vdc) | 160 | |||||
MPPT Voltage Range (Vdc) | 200~650 | |||||
Full Load DC Voltage Range (V) | 350~650 | |||||
Max. PV Input Current (A) | 13+13 | 26+13 | ||||
Max. PV Short-circuit Current (A) | 17+17 | 34+17 | ||||
No. of MPP Trackers | 2 | |||||
Peak Power (off grid) | 2 time of rated power, 10s | |||||
Power Factor | 0.8 leading to 0.8 lagging | |||||
DC injection current (mA) | THD<3% (Linear load<1.5%) | |||||
Display | LCD | |||||
Relative Humidity | 15% ~ 85% (No Condensing) | |||||
Dimension (W x D x H,mm) | 720x255x440 | |||||
Weight (kg) | 38 | |||||
Communication with BMS | CAN2.0 | |||||
Safety | IEC/EN 62109-1,IEC/EN 62109-2,IEC/EN 61000-6-1, IEC/EN 61000-6-2,IEC/EN 61000-6-3,IEC/EN 61000-6-4 |
|||||
Grid Regulation | VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0-21,EN50549-1, G98,G99,C10-11,UNE217002,NBR16149/NBR16150 |
|||||
Max. Efficiency | 97.60% | |||||
Max. charging/discharging efficiency | 95.50% | |||||
Battery Technical Specification | ||||||
Nominal Voltage (V) | 51.2 | |||||
Battery Module Energy (kWh) | 5.12 | |||||
Module Scalability | Max.36 pcs in parallel(Max. capacity of 184kWh) | |||||
Battery Module Dimension | 720*255*300(W x D x H, mm) | |||||
Battery Base Dimension | 720*255*68(W x D x H, mm) | |||||
Battery PDU3 Dimension | 720*255*228(W x D x H, mm) | |||||
Battery Module Weight (kg) | 53 | |||||
Operating Temperature Range | Charge: 0~55℃ / Discharge: -20℃~55℃ | |||||
Cycle Life | ≥6000(25℃±2℃, 0.5C/0.5C, 90%DOD, 70%EOL) | |||||
Battery Module Certification | IEC62619, CE, UK, VDE2510-50, CEI 0-21, UN38.3, CE-LVD, CEC |
[1] Conditions apply, refer to Deye Warranty Letter.
