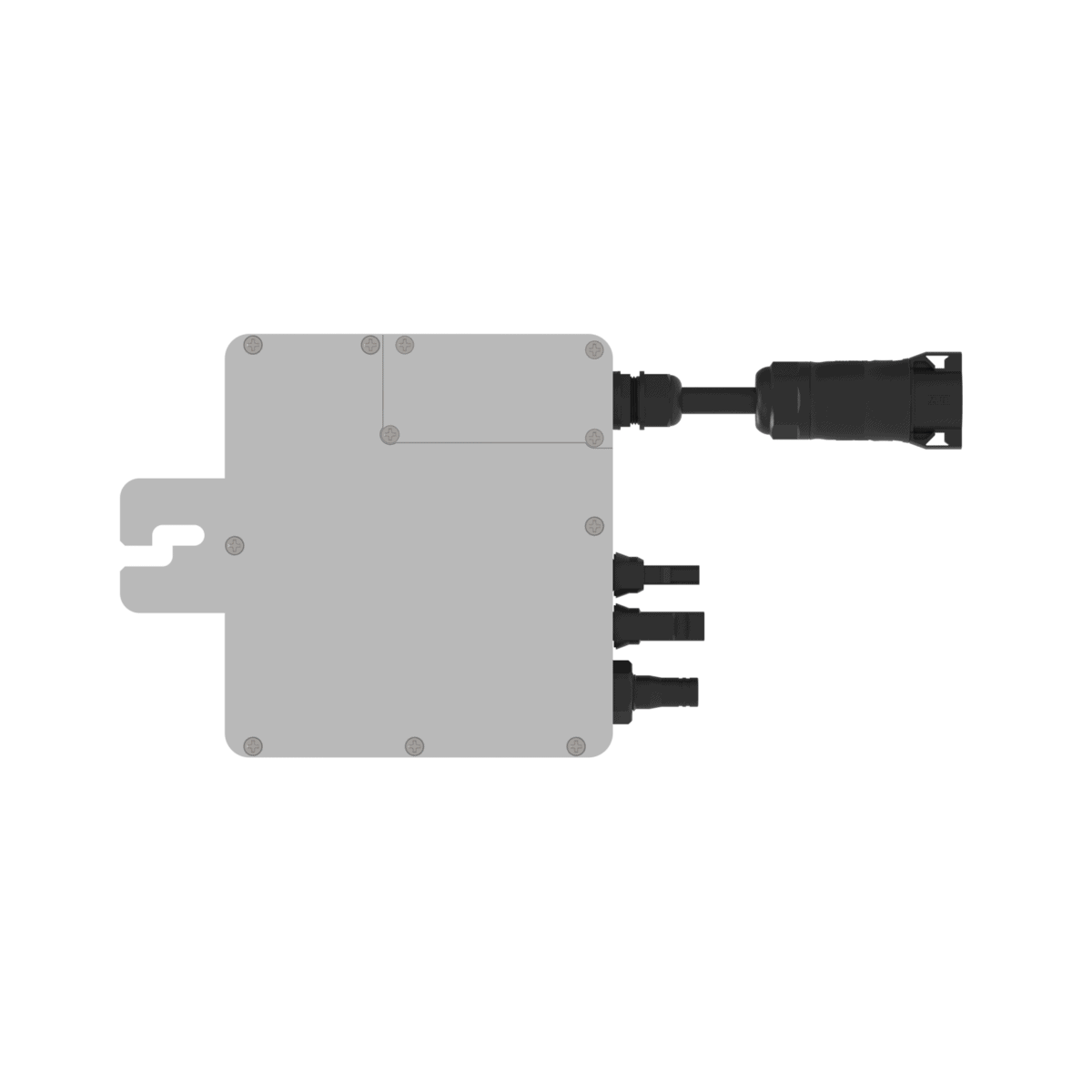

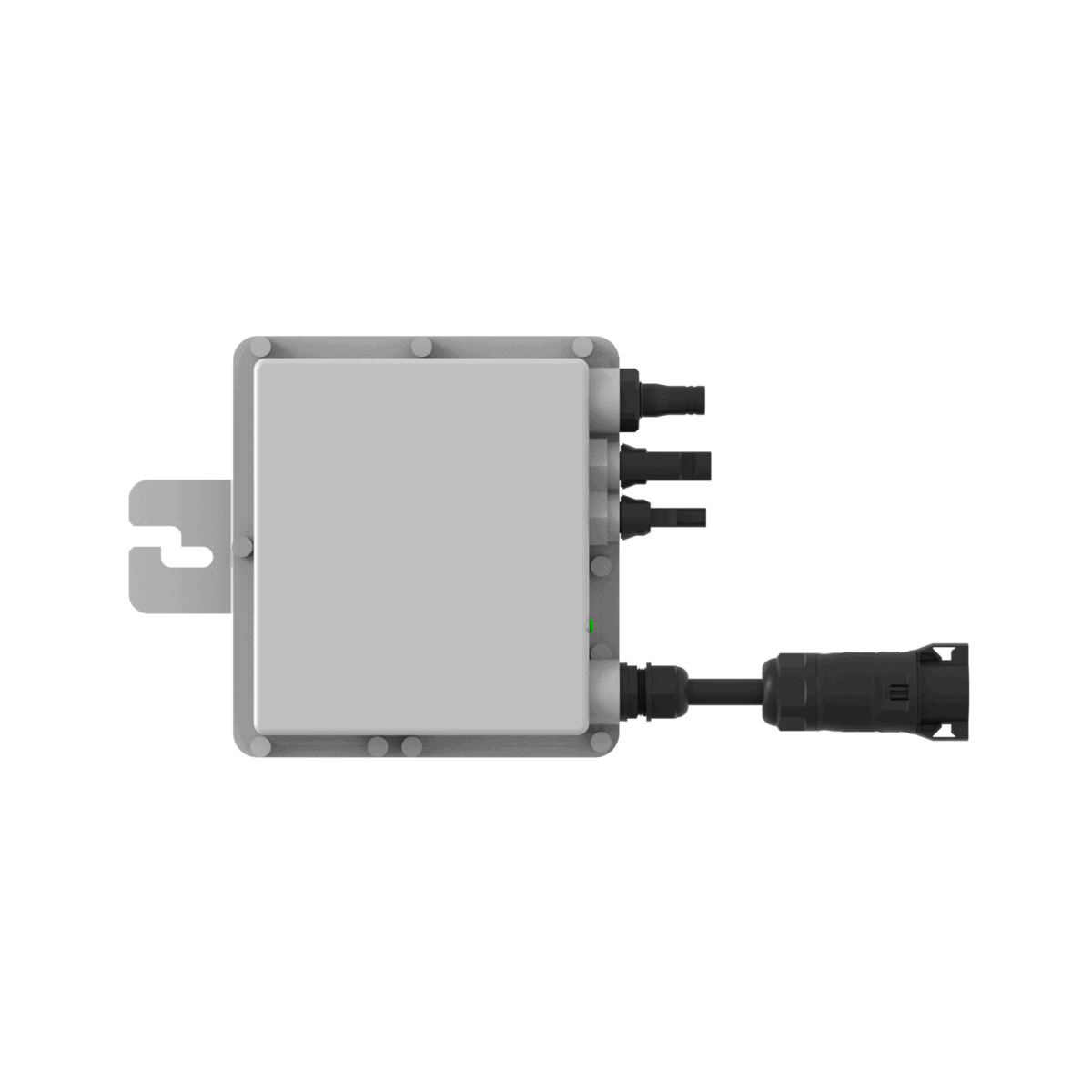

SUN-M30/40/50G4-EU-Q0

The SUN-M30/40/50G4-EU-Q0 series microinverter is an advanced and efficient solution for photovoltaic (PV) systems. Its single Maximum Power Point (MPP) tracker, module-level monitoring, and IP67 protection make it a highly reliable and user-friendly choice for renewable energy applications.

SKU: SUN-M30/40/50G4-EU-Q0 Categories: ,

Description

Key Features

  • Maximized Performance: Equipped with one MPP tracker per module, ensuring optimized power conversion efficiency and performance.
  • High Protection: IP67 rating ensures protection against dust and water ingress, thereby extending the inverter’s lifespan even in harsh environmental conditions.
  • Integrated WIFI: Facilitates real-time monitoring and management through a user-friendly interface.
  • Rapid Shutdown Function: Provides enhanced safety by complying with the DIN VDE V 0126-95 standard for rapid AC discharge within <100ms.
  • Easy Installation: Designed for quick-plug balcony PV systems, allowing for straightforward setup and maintenance.
  • Long-lasting Durability: Features an external relay designed for low temperature, extended life, and easier maintenance.
  • Comprehensive Warranty: Comes with a 25-year design lifetime and a 15-year warranty for peace of mind.

Technical Specifications

  • Model Variants:
    • SUN-M30G4-EU-Q0
    • SUN-M40G4-EU-Q0
    • SUN-M50G4-EU-Q0
  • PV Input:
    • Max. Input Power: Up to 500W
    • Max. Input Voltage: 60V
    • Start-up Voltage: 20V
    • MPPT Voltage Range: 25-55V
    • Max. Operating PV Input Current: 13A
    • Max. Input Short Circuit Current: 19.5A
  • AC Output:
    • Rated Active Power: 300-500W
    • Max. Apparent Power: 300-500VA
    • Grid Connection: L/N/PE
    • Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
    • Rated Output Frequency: 50/60Hz
    • Power Factor: 0.9 leading to 0.9 lagging
    • Total Harmonic Distortion (THDi): <3%
    • Max. Efficiency: 96.5%
    • Euro Efficiency: 96.0%
    • MPPT Efficiency: >99%
    • Max. Units per Branch: 17 units
  • Protection Features:
    • DC Polarity Reverse Connection Protection
    • AC Output Overcurrent Protection
    • AC Output Overvoltage Protection
    • AC Output Short Circuit Protection
    • Thermal Protection
    • DC Terminal Insulation Monitoring
    • Power Network Monitoring
    • Island Protection
    • Earth Fault Detection
    • Overvoltage Load Drop Protection
  • Environmental Specifications:
    • Operating Temperature: -40 to +65°C (Derating >45°C)
    • Permissible Ambient Humidity: 0-100%
    • Permissible Altitude: 2000m
    • Noise Level: ≤25dB
  • Physical Characteristics:
    • Ingress Protection Rating: IP67
    • Cooling Method: Natural Cooling
    • Dimensions: 173×158.5×31.5 mm (excluding connectors and brackets)
    • Weight: 1.85 kg
  • Certifications and Standards:
    • Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
    • Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Download

Deye SUN-M30/40/50G4-EU-Q0 Data Sheet
