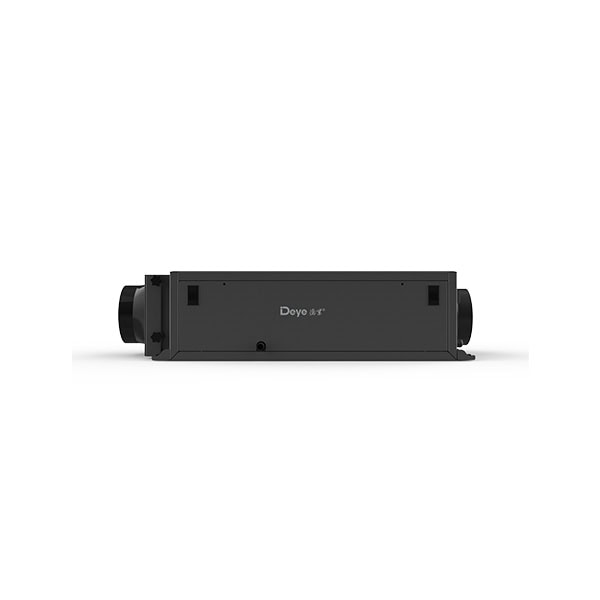

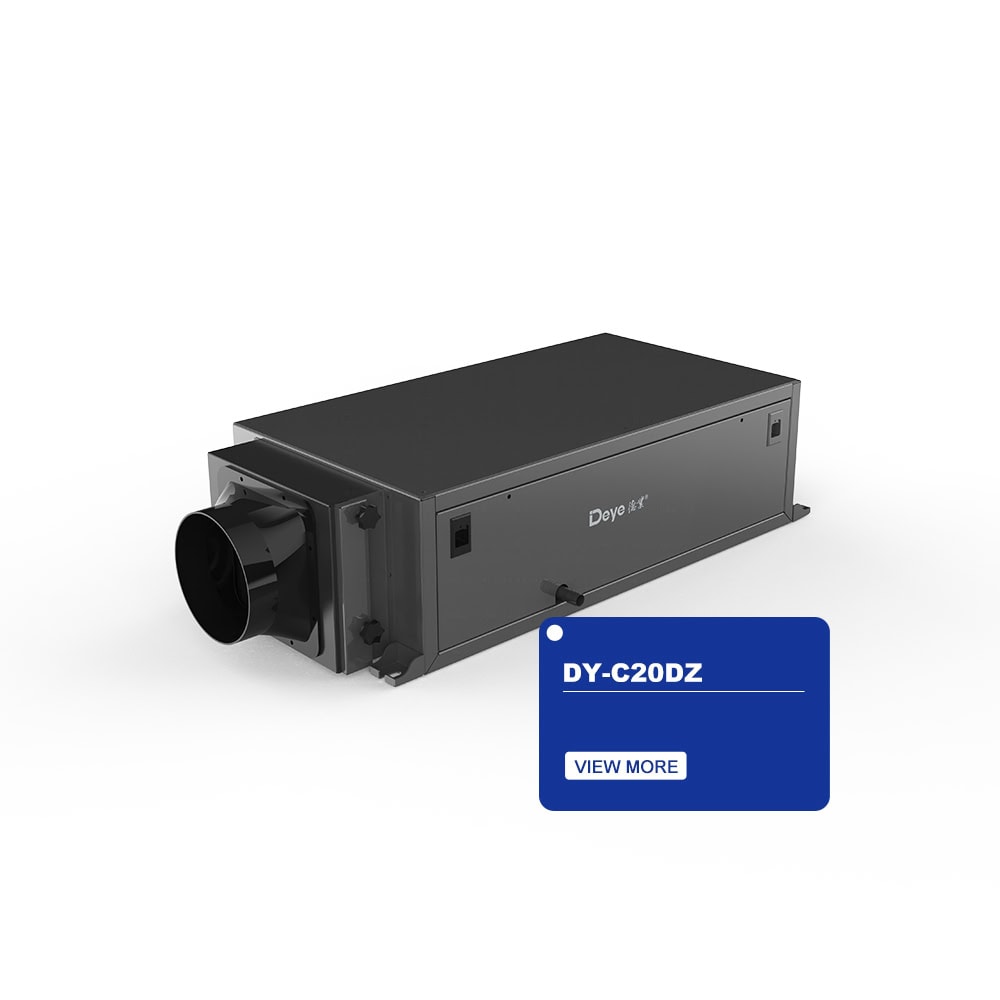

DY-C20DZ/A Ceiling Dehumidifier

  • Efficient Dehumidification: Delivers 20L/day capacity (30℃, RH80%) and 10L/day capacity (27℃, RH60%); runs on 220-240V~50Hz power with 190W rated power
  • Quiet & User-Friendly: Operates at low 40dB(A) for quiet use; equipped with intelligent control and easy maintenance design
  • Space-Saving & Easy Installation: Light, compact build (904×377×202 mm, 28.0kg net weight) enables hassle-free ceiling installation
  • Practical Features: 170m³/h air flow at high fan speed; removable, washable filter for easy upkeep; uses R134a refrigerant (0.27kg)

Description

Key Features:

The DY-C20DZ/A is a practical ceiling-mounted dehumidifier designed for convenience and quiet use. It operates on 220-240V~ 50Hz power supply, delivering a dehumidifying capacity of 20L/day (at 30℃, RH80%) and 10L/day (at 27℃, RH60%) with a rated power of 190W.
Featuring a light and compact design (904×377×202 mm, net weight 28.0kg), it enables easy installation. Its high fan speed provides 170m³/h air flow, while keeping noise low at 40dB(A) for quiet operation. The unit also comes with intelligent control for hassle-free use, easy maintenance, and a removable, washable filter for added convenience. It uses R134a refrigerant (0.27kg) for efficient dehumidification.
DY-C20/50/70/95DZA
  • Low Noise, Quiet Operation
  • Intelligent Control
  • Maintain Easily
  • Light And Compact Design
  • Easily Install
  • Easy To Be Removed And Washable Filter
Model DY-C20DZ/A DY-C50DZ/A DY-C70DZ/A DY-C95DZ/A
Power Supply 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz
Dehumidifying Capacity 20L/day(30℃ RH80%) 50L/day(30℃ RH80%) 70L/day(30℃ RH80%) 95L/day(30℃ RH80%)
Rated Power 10L/day(27℃ RH60%)
190W		 30L/day(27℃ RH60%)
690W		 45L/day(27℃ RH60%)
830W		 45L/day(27℃ RH60%)
1070W
Air Flow(High Fan Speed) 170m³/h 390m³/h 485m³/h 620m³/h
Noise Level 40dB(A) 45dB(A) 50dB(A) 50dB(A)
Refrigerant R134a / 0.27kg R410A / 0.5kg R410A / 0.45kg R410A / 0.9kg
N.W. 28.0kg 35.0kg 41.5kg 63.0kg
Product Size 904×377×202 mm 950×436×228 mm 1010×500×240 mm 1075×745×310 mm

Download

Deye DY-C20DZA Data Sheet
